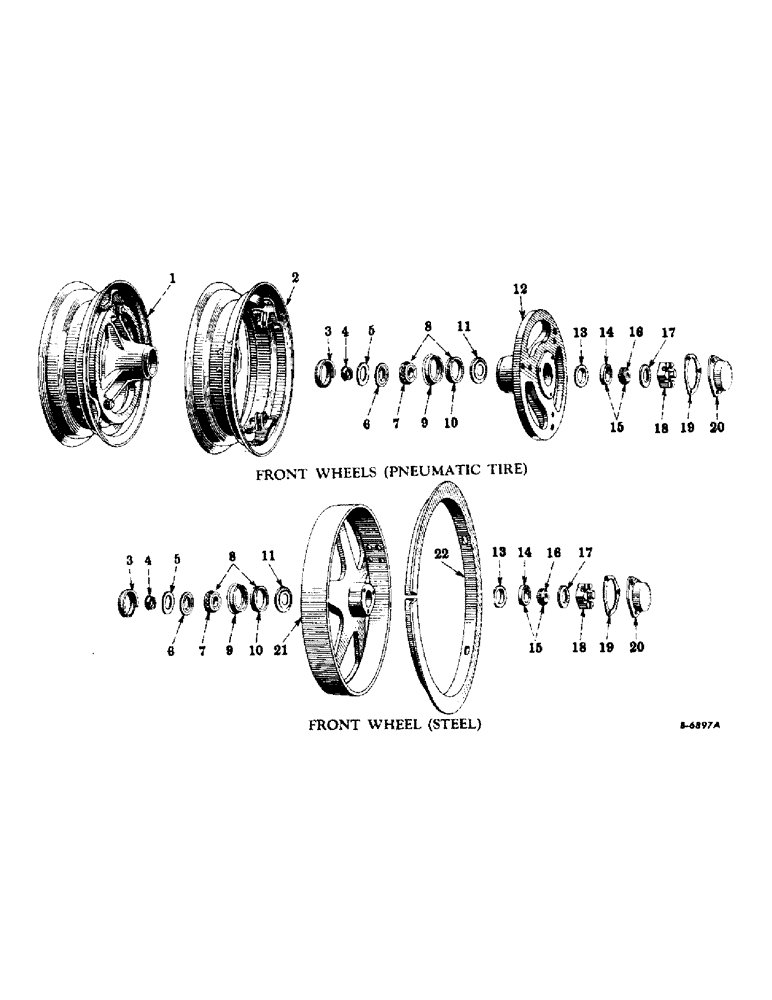

Запчасти Case IH SUPER M (302) - CHASSIS, FRONT WHEELS, SUPER "M" AND "MD" (12) - CHASSIS

1

355036R92

WHEEL, front, w/rim, assembly (composed of (1) wheel 8284DBX, (1) gasket 48547D, (3) nut 352777R1, (1) rim 354246R91, (3) screw 181784, (3) washer 103325, (3) washer 103345)

2шт.

1

355019R92

WHEEL, front, w/rim, assembly (composed of (1) wheel 8274DBX, (1) gasket 48547D, (3) nut 352777R1, (1) rim 354246R91, (3) screw 181783, (3) washer 103325, (3) washer 103345)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

2

354246R91

RIM

front wheel (rim size 4.25 KA - 16DC) (tire size 6.00 or 6.50 x 16)

2шт.

352777R1

NUT

mounting front wheel rim

6шт.

181783

SCREW, cap, hex-hd., cd-pltd., 5/8-18NF x 2-3/4"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

6шт.

3

48701D

SHIELD

dust, front wheel

2шт.

3

48541D

SHIELD

dust, front wheel

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

4

50270D

SPACER

front wheel bearing

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

4

51901D

SPACER

front wheel bearing (adjustable wide tread front axle attachment), 60001 up

2шт.

5

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel

2шт.

5

50259D

WASHER

WASHER, felt, front wheel

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

6

48704D

SEAL

OIL SEAL, front wheel (optional with 358779R91 or 358818R91)

2шт.

6

358779R91

OIL SEAL

front wheel (optional with 48704D or 358818R91)

2шт.

6

358818R91

OIL SEAL

front wheel (optional with 48704D or 358779R91)

2шт.

6

48539D

OIL SEAL, front wheel (optional with 358778R91 and 358817R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

6

358778R91

OIL SEAL

front wheel (optional with 48539D and 358817R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

6

358817R91

OIL SEAL

front wheel (optional with 48539D and 358778R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

7

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, front wheel inner bearing (IH-342-S)

2шт.

7

10880K

BEARING

CONE, front wheel inner bearing (Timken 14138A) (optional with 353523R92 and 352389R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

7

3253523R92

CONE, front wheel inner bearing (Tyson 14138A) (optional with 10880K and 352389R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

7

352389R91

BEARING

CONE, front wheel inner bearing (Bower 14138A) (optional with 10880K and 353523R92)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

8

ST780A

BEARING

inner, front wheel (cup, ST882 with cone, ST781A) (IH-342-S-332)

2шт.

8

10873K

BEARING CUP

BEARING, inner, front wheel (cup, 13822V with cone, 10880K) (Timken 14138A-14274) (optional with 353515R92 and 352382R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

8

353515R92

BEARING

inner, front wheel (cup, 353531R1 with cone, 352523R92) (Tyson 14138A-14274) (optional with 10873K and 352382R91)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

8

352382R91

BEARING

inner, front wheel (cup, 352396R1 with cone, 352389R91) (Bower 14138A-14274) (optional with 10873K and 353515R92)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

9

48703D

RETAINER

felt washer, front wheel

2шт.

9

48548D

WASHER

felt washer, front wheel

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

10

ST882

CUP

front wheel inner bearing (IH-332)

2шт.

10

13822V

BEARING

CUP, front wheel inner bearing (Timken 14274) (optional with 352396R1 and 353531R1)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

10

352396R1

CUP

front wheel inner bearing (Bower BT-14274) (optional with 13822V and 353531R1)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

10

353531R1

BEARING

CUP, front wheel inner bearing (Tyson 14274) (optional with 13822V and 352396R1)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

11

60290DA

RETAINER

grease, front wheel bearing, inner

2шт.

11

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

grease, front wheel bearing, inner

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

12

8284DBX

WHEEL, front, assembly (composed of (1) cup ST869, (1) cup ST882, (1) wheel 8284DB (NSS), (1) retainer 48703D, (1) retainer 60290DA, (1) retainer 60291D)

2шт.

12

8274DBX

WHEEL, front, assembly (composed of (1) cup 13417D, (1) cup 352396R1, (1) wheel 8274DB (NSS), (1) retainer 48548D, (1) retainer 60288DA, (1) retainer 60289D)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

13

60291D

RETAINER

grease, front wheel bearing, outer

2шт.

13

60289D

WASHER

RETAINER, grease, front wheel bearing, outer

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

14

ST869

CUP ASSY.

CUP, front wheel outer bearing (IH-2820)

2шт.

14

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP, front wheel outer bearing (IH-1729)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

15

ST770A

BEARING, outer, front wheel (cup, ST869 with cone, ST771A) (IH 2820-2878)

2шт.

15

13311DA

TAPERED BEARING

BEARING, outer, front wheel (cup, 13417D with cone, 13321DA) (IH-1729-1779)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

16

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

CONE, front wheel outer bearing (IH-2878)

2шт.

16

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

CONE, front wheel outer bearing (IH-1779)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

17

353838R1

WASHER

WASHER, front wheel outer bearing retainer

2шт.

18

102652

SLOTTED NUT

NUT, slotted-hex., 7/8-14NF

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

19

48547D

GASKET

front wheel hub cap

2шт.

20

48546DA

CAP, front wheel hub (optional with 365127R1)

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

20

365127R1

CAP, front wheel hub (optional with 48546DA)

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

6738DCXA

WHEEL, front, w/o skid ring, assembly (composed of (1) cup ST882, (1) cup ST869, (1) retainer 48703D, (1) retainer 60290DA, (1) retainer 60291D, (1) wheel 6738DC (NSS)

2шт.

21

6738DCYA

WHEEL, front, w/skid ring, assembly (composed of (6) bolt 13293R1, (6) nut 114774, (1) ring 48565DA, (6) washer 103323, (1) wheel 6738DCXA)

2шт.

21

354792R91

ATTACHMENT, front wheel (consists of two wheels, 6738DCXA)

1шт.

21

6694DCXA

WHEEL, front, w/o skid ring, assembly (composed of (1) cup 13417D, (1) cup 352396R1, (1) retainer 48548D, (1) retainer 60288DA, (1) retainer 60289D, (1) wheel 6694DC (NSS)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

21

6694DCYA

WHEEL, front w/skid ring, assembly (composed of (6) bolt 13293R1, (6) nut 114774, (1) ring 48565DA, (6) washer 103323, (1) wheel 6694DCXA (NSS)

2шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

21

354134R91

ATTACHMENT, front wheel (consists of two wheels, 6694DCXA)

1шт.

For adjustable wide tread front axle w/adjustable wheel base attachment.

1шт.

22

48565DA

RING, skid, front wheel, 2" high (standard)

2шт.

13293R1

BOLT

machine, sq-hd., 1/2-13NC x 1-1/2"

12шт.

114774

NUT, hex., 1/2-13NC

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

22

354087R92

ATTACHMENT, front wheel skid ring (standard) (composed of (12) bolt 13293R1, (12) nut 114774, (2) ring 48565DA, (12) washer 103323)

1шт.

22

53014DA

RING, skid, front wheel, 2-1/2" high (special) (optional with 67893DA)

2шт.

22

67893DA

RING, skid, front wheel, 2-1/2" high (special) (optional with 53014DA)

2шт.

13293R1

BOLT

machine, sq-hd., 1/2-13NC x 1-1/2"

12шт.

114774

NUT, hex., 1/2-13NC

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

22

53015D

ATTACHMENT, front wheel skid ring (special) (composed of (12) bolt 13293R1, (12) nut 114774, (2) ring 53014DA, (12) washer 103323)

1шт.
