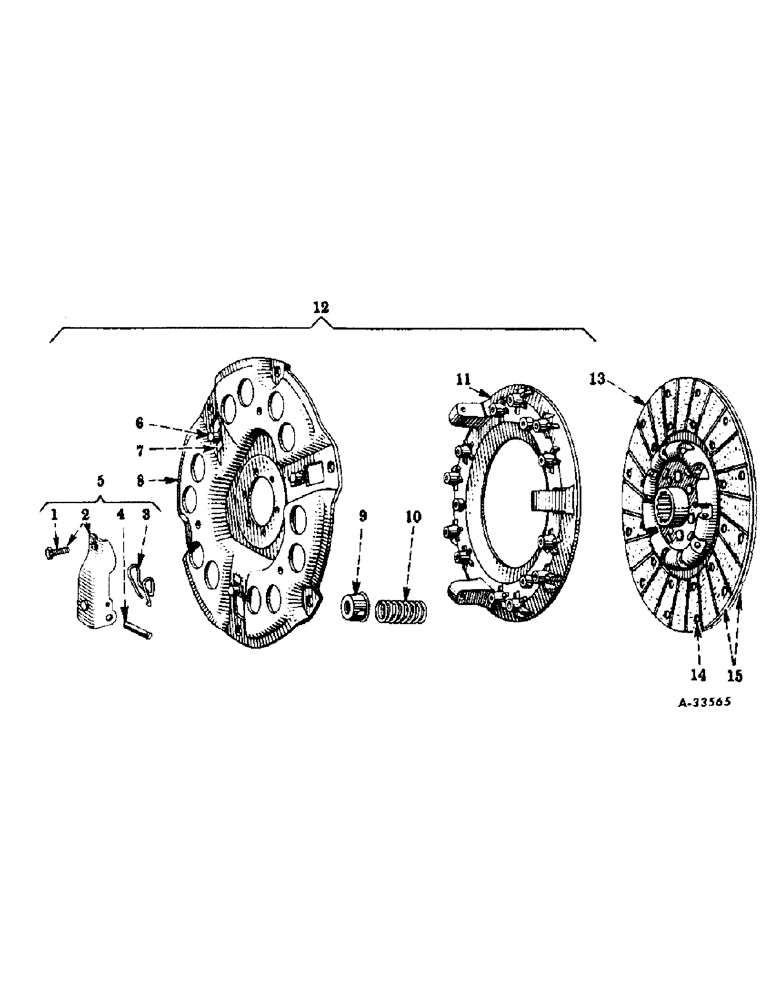

Запчасти Case IH SUPER M (236) - CHASSIS, CLUTCH, IH, FOR TRACTORS F-501 TO F-52627 AND L-500001 TO L-512541 (12) - CHASSIS

1

357301R1

ADJUSTMENT SCREW

SCREW, adjusting

3шт.

2

357932R92

LEVER

LEVER, w/screw, 357301R1

3шт.

3

358297R1

SPRING

SPRING, lever

3шт.

4

358298R1

PIN

PIN, lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, cotter, 3/32 x 1/2"

3шт.

5

358296R91

KIT

PACKAGE, lever, assembly (consists of (3) lever, assembly 357932R92, (3) pin 358298R1, (3) pin 107762, (3) spring 358297R1)

1шт.

6

358294R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

358295R1

SPARE PART CLIP, lever spring

3шт.

8

358293R11

PLATE

PLATE, back w/three clips, 358295R1 and three seats, 358294R1

1шт.

9

358292R1

SPARE PART CUP, clutch pressure spring

12шт.

10

358291R1

SPRING

SPRING, clutch pressure

12шт.

10

358290R91

SPARE PART PACKAGE, clutch pressure spring (consists of twelve springs, 358291R1)

1шт.

11

358289R1

SPARE PART PLATE, pressure

1шт.

12

360477R91

SPARE PART PLATE, pressure, clutch assembly (optional with 357299R93) (composed of (12) cup 358292R1, (1) lever, package 358296R91, (1) plate, assembly 358293R11, (1) plate 358289R1, (1) spring, package 358290R91)

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

68757HC

SPARE PART DISC, driven, clutch, w/facing, 257819R21 (Rockford No. UCL-12-3832) (optional with 359168R91)

1шт.

13

359168R91

PLATE

DISC, driven, clutch, w/facing, 257819R21 (Rockford No. UCL-17-3832) (optional with 68757HC)

1шт.

13

384395R94R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 11Tooth hub, 1 13/64 in. OD of splines, 4 paddle

1шт.

13

384395R94C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

RIVET, clutch facing

26шт.

15

257819R21

LINING

PACKAGE, clutch facing (two facings, w/twenty six rivets, 37508D)

1шт.
