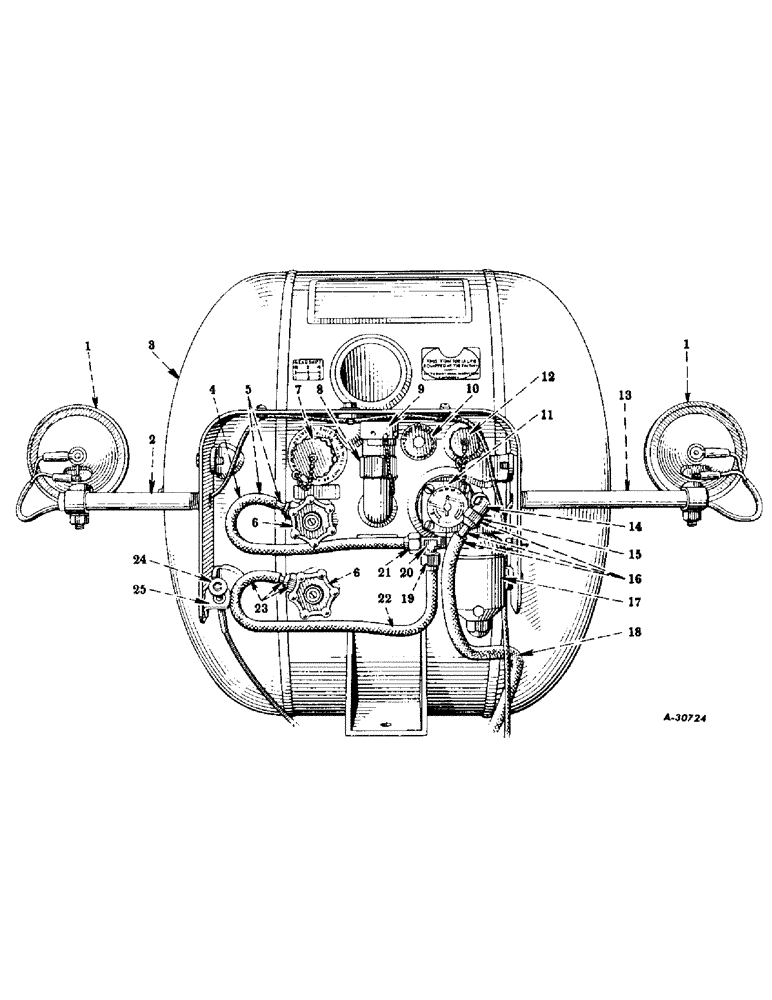

Запчасти Case IH SUPER M (217) - CHASSIS, FUEL TANK AND PIPING, LIQUEFIED PETROLEUM GAS, SUPER "M" AND "MV" (12) - CHASSIS

1

45640DB

LAMP

HEADLIGHT (guide lamp 873-24) (conventional) (for components see list of parts under detail of "headlights or rear light")

2шт.

1

357884R91

HEADLIGHT, sealed beam, assembly (guide lamp 926115) (for components see list of parts under detail of "headlights or rear light")

2шт.

2

357071R1

PIPE, headlight support, L.H.

1шт.

3

357063R92

TANK, fuel

1шт.

3

357062R92

TANK, fuel, assembly (composed of (1) cap 357067R91, (1) gage 357070R92, (1) tank 357063R92, (1) valve 357064R92, (1) valve 357065R92, (1) valve 357066R91, (1) valve 357068R91, (2) valve 357069R91)

1шт.

220067

PIPE

NUT, hex., 7/16-14NC

3шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8"

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

Q1511

WASHER, plain, 15/32 I.D. x 1" O.D. x no. 14 ga.

4шт.

4

357077R1

LOOM, fuel pipe (vapor, Serial Range: service-filter)

1шт.

5

357075R11

PIPE, fuel, vapor service to filter, w/loom, 357077R1 and two nuts, 357078R1 (optional with 357540R11)

1шт.

5

357540R11

PIPE, fuel, vapor service to filter, w/loom, 357077R1 and two nuts, 357078R1 (optional with 357075R11)

1шт.

6

357069R91

VALVE, service, w/handwheel and excess flow check (Selwyn-Landers Co.) (for components see list of parts under detail of service valve w/handwheel and excess flow check) (optional with 357630R91)

1шт.

6

357630R91

VALVE, service, w/handwheel and excess flow check (Bastian-Blessing 3101 H5) (optional with 357069R91)

1шт.

7

357065R92

VALVE, filler back check (Selwyn-Landers Co.) (for components see list of parts under detail of back check filler valve)

1шт.

7

357635R91

VALVE, filler, double check, 1-1/4" (Bastian-Blessing 3179-C) (optional with 357065R92)

1шт.

8

357066R91

VALVE, relief, 3/4" (Selwyn-Landers P-431N) (optional with 357631R91)

1шт.

8

357631R91

VALVE, relief, 3/4" (Bastian-Blessing T-3131-G) (optional with 357066R91)

1шт.

9

357067R91

CAP, rain, w/chain and tie (Selwyn-Landers 431-28C) (optional with 357633R91)

1шт.

9

357633R91

CAP, rain, w/chain (Bastian-Blessing 131-40) (optional with 357067R91)

1шт.

10

357068R91

VALVE, outage, w/dial and clip (includes valve, 359830R91) (Selwyn-Landers 10-D) (optional with 357632R91)

1шт.

10

359830R91

VALVE AND DISC (Selwyn-Landers 10-20)

1шт.

10

357632R91

VALVE, outage, w/dial and ring (Bastian-Landers 3163 A) (optional with 357068R91)

1шт.

11

357070R92

GAGE, float, liquid lever (optional with 357636R92)

1шт.

11

357636R92

GAGE, float, liquid lever (optional with 357070R92)

1шт.

12

357064R92

VALVE, vapor and excess flow (Selwyn-Landers Co.) (optional with 357634R91) (for components see list of parts under detail of vapor and excess flow valve)

1шт.

12

357634R91

VALVE, vapor return and excess flow check (Bastian-Blessing 3173AC) (optional with 357064R92)

1шт.

13

357072R1

PIPE, headlight support, R.H.

1шт.

14

109563R1

ELBOW

fuel pipe

1шт.

15

357078R1

NUT, fuel pipe, Serial Range: (filter-tee)

2шт.

16

357875R11

PIPE, fuel, filter to tee, w/loom, 357925R1 and two nuts, 357078R1 (optional with 3578976R11) (order 358608R91), Serial Range: F-501-F-28174

1шт.

16

357876R11

PIPE, fuel, filter to tee, w/loom, 357925R1 and two nuts, 357078R1 (optional with 357875R11) (order 358608R91), Serial Range: F-501-F-28174

1шт.

16

359261R11

PIPE, fuel, filter to tee, w/loom, 359263R1 and two nuts, 357078R1 (optional with 359262R11), Serial Range: F-28175-F-52627

1шт.

16

359262R11

PIPE, fuel, filter to tee, w/loom, 359263R1 and two nuts, 357078R1 (optional with 359261R11), Serial Range: F-28175-F-52627

1шт.

17

357073R91

FILTER, fuel (ensign 2250) (for components see list of parts under "detail of fuel filter")

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

357925R1

LOOM, fuel pipe (filter to tee), Serial Range: F-501-F-28174

1шт.

18

359263R1

LOOM, fuel pipe (filter to tee), Serial Range: F-28175-F-52627

1шт.

19

357078R1

NUT, fuel pipe (liquid, Serial Range: service-filter)

2шт.

20

357074R1

TEE, fuel filter

1шт.

21

357078R1

NUT, fuel pipe (vapor, Serial Range: service-filter)

2шт.

22

357081R1

LOOM, fuel pipe (liquid, Serial Range: service-filter)

1шт.

23

357079R11

PIPE, fuel, liquid service to filter, w/loom, 357081R1 and two nuts, 357078R1 (optional with 357541R11)

1шт.

23

357541R11

PIPE, fuel, liquid service to filter, w/loom, 357081R1 and two nuts, 357078R1 (optional with 357079R11)

1шт.

24

357087R91

CONTROL, choke

1шт.

25

357088R1

BRACKET, choke control

1шт.

220064

NUT

hex., 1/4-20NC (2 used -, Serial Range: F-501-F-28174)

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

machine, slotted-rd-hd., 1/4-20NC x 5/8" (2 used - F-501 to F-28174)

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (2 used - F-501 to F-28174) 1/4"

1шт.

357495R1

CAP, fuel pipe tee

1шт.

357927R1

CLIP, fuel pipe (regulator to tee), Serial Range: F-501-F-28174

1шт.

359267R1

CLIP, fuel pipe (regulator to tee), Serial Range: F-28175-F-52627

1шт.

109563R1

ELBOW

fuel pipe (to regulator)

1шт.

105423

ELBOW,90 Degree, 1/4" NPT Street

street, 90deg., 1/4" (to filter)

1шт.

357926R1

LOOM, fuel pipe, regulator to tee, Serial Range: F-501-F-28174

1шт.

359266R1

LOOM, fuel pipe, regulator to tee, Serial Range: F-28175-F-52627

1шт.

357078R1

NUT, fuel line tee (capped end)

1шт.

357078R1

NUT, fuel pipe, Serial Range: (tee-regulator)

2шт.

359845R91

PACKAGE, field improvement fuel tank gusset plate, Serial Range: F-501-F-46183

1шт.

358608R91

PACKAGE, service, fuel pipe (filter to regulator) (super "M" and "MV") (consists of pipe, 357875R21 and pipe, 357877R21) (will work for 357875R11, 357876R11, 357877R11 and 357878R11), Serial Range: F-501-F-28174

1шт.

357877R11

PIPE, fuel, regulator to tee, w/loom, 357926R1 and two nuts, 357078R1 (optional with 357878R11) (order 358608R91), Serial Range: F-501-F-28174

1шт.

357878R11

PIPE, fuel, regulator to tee, w/loom, 357926R1 and two nuts, 357078R1 (optional with 357877R11) (order 358608R91), Serial Range: F-501-F-28174

1шт.

359264R11

PIPE, fuel, regulator to tee, w/loom, 359266R1 and two nuts, 357078R1 (optional with 359265R11), Serial Range: F-28175-F-52627

1шт.

359265R11

PIPE, fuel, regulator to tee, w/loom, 359266R1 and two nuts, 357078R1 (optional with 359264R11), Serial Range: F-28175-F-52627

1шт.

357879R1

TEE, fuel pipe, Serial Range: (filter-regulator)

1шт.
