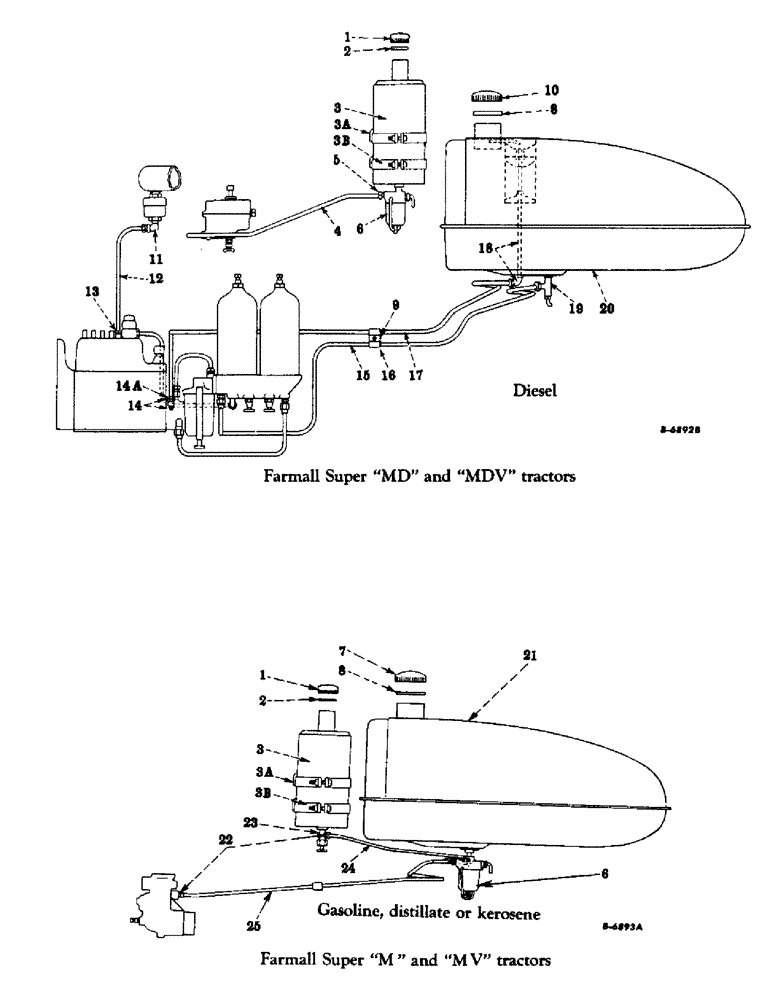

Запчасти Case IH SUPER M (214) - CHASSIS, FUEL AND GASOLINE TANKS AND PIPING (12) - CHASSIS

1

40756D

FILLER CAP

CAP, gasoline tank filler, w/gasket, 40752D (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene)

1шт.

2

40752D

GASKET

gasoline tank filler cap (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene)

1шт.

3

60685DAX

TANK, gasoline, w/cap 40756D (welded-bracket type) (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene) (order 357818R91), Serial Range: F-501-F-29768

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

357815R91

TANK, gasoline, w/cap 40756D (separate-bracket type) (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene), F-29769 up

1шт.

3a

60670DA

BRACKET, gasoline tank (used with 357815R91) (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene), F-29769 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3b

357816R1

BAND, gasoline tank bracket (used with 357815R91) (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene), F-29769 up

2шт.

NLS

NO LONGER SERVICED

sq., 5/16-18NC

2шт.

117296

SCREW, slotted-fil-hd., 5/16-18NC x 1-1/2"

2шт.

4

60922DX

PIPE, gasoline, strainer to carburetor, w/two nuts, 28899D (super "MD" and "MDV")

1шт.

5

222-503

TUBE NUT,1/2"-20

NUT, coupling, gasoline pipe (super "MD" and "MDV")

2шт.

6

See "fuel strainer" for detail parts.

1шт.

7

23995DB

CAP, fuel tank filler, w/gasket, 23977DA (super "M" and "MV")

1шт.

8

23977DA

GASKET

fuel tank filler cap

1шт.

9

60127D

CUSHION, fuel to water trap and fuel return pipe support (super "MD" and "MDV")

4шт.

10

65024D

CAP

fuel tank filler, w/gasket, 23977DA (super "MD" and "MDV")

1шт.

11

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

fuel injection pump air cleaner pipe (super "MD" and "MDV")

1шт.

11

37323DX

ELBOW

37323D, fuel injection pump air cleaner pipe, w/nut, 37165D

1шт.

12

65030DX

PIPE, fuel injection pump air cleaner, w/two nuts, 37165D (super "MD" and "MDV")

1шт.

13

222-504

TUBE NUT,9/16"-20

NUT, fuel injection pump air cleaner pipe (super "MD" and "MDV")

2шт.

14

260304R1

ELBOW, fuel return pipe (super "MD" and "MDV"), Serial Range: F-501-F-48313

1шт.

14

37323DX

ELBOW

fuel return pipe, w/nut, 37165D (super "MD" and "MDV"), F-48314 up

1шт.

14a

222-504

TUBE NUT,9/16"-20

NUT, fuel return pipe (super "MD" and "MDV")

1шт.

15

65037DX

PIPE, fuel, fuel tank to water trap, w/two nuts (super "MD" and "MDV"), Serial Range: F-501-F-28174

1шт.

15

358077R11

PIPE, fuel, fuel tank to water trap, w/two nuts and two nipples (super "MD" and "MDV"), F-28175 up

1шт.

16

66362D

CLAMP

fuel pipe (super "MD" and "MDV")

2шт.

220064

NUT

hex., 1/4-20NC

1шт.

114355

SCREW, slotted, fil-hd., 1/4-20NC x 3/4" Slotted Fil Hd, 1/4"-20 x 3/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

359692R91

PIPE, fuel return, w/elbow, 37323DX and nut, 37165D (super "MD" and "MDV") (will work for 354797R11), Serial Range: F-501-F-28174

1шт.

17

359637R91

PIPE, fuel return, w/elbow, 37323DX and nut, 37165D (super "MD" and "MDV") (will work for 358078R11), Serial Range: F-28175-F-48313

1шт.

17

359636R11

PIPE, fuel return, w/two nuts, 37165D (super "MD" and "MDV"), F-48314 up

1шт.

18

65035DX

PIPE, fuel return stand, w/elbow (super "MD" and "MDV")

1шт.

19

65524D

VALVE, needle, fuel tank (imperial brass 43808) (super "MD" and "MDV")

1шт.

20

67895DD

TANK, fuel, w/cap, 65024D (super "MD" and "MDV")

1шт.

21

60721DBX

TANK, fuel, w/cap, 23995DB (super "M" and "MV")

1шт.

22

222-503

TUBE NUT,1/2"-20

NUT, coupling (for fuel pipes) (super "M" and "MV")

4шт.

23

55474D

VALVE, needle, gasoline tank (super "M" and "MV") (distillate or kerosene) (for components see list of parts under detail of fuel shut-off valve)

1шт.

23

55474DX

VALVE

needle, gasoline tank, w/nut, 29899D (super "M" and "MV") (distillate or kerosene)

1шт.

24

58362DBX

NUT

PIPE, fuel, gasoline tank to strainer, w/two nuts, 29899D (distillate or kerosene) (super "M" and "MV")

1шт.

25

60684DX

PIPE, fuel, strainer to carburetor, w/two nuts, 29899D (gasoline) (super "M" and "MV")

1шт.

357818R91

PACKAGE, service, gasoline tank (will work for 60685DAX) (super "MD" and "MDV") (super "M" and "MV" distillate or kerosene) (consists of two bands, 357816R1, bracket, 60670DA, two nuts, 105605, two screws, 117296 and tank, 357815R91), Serial Range: F-501-F-29768

1шт.
