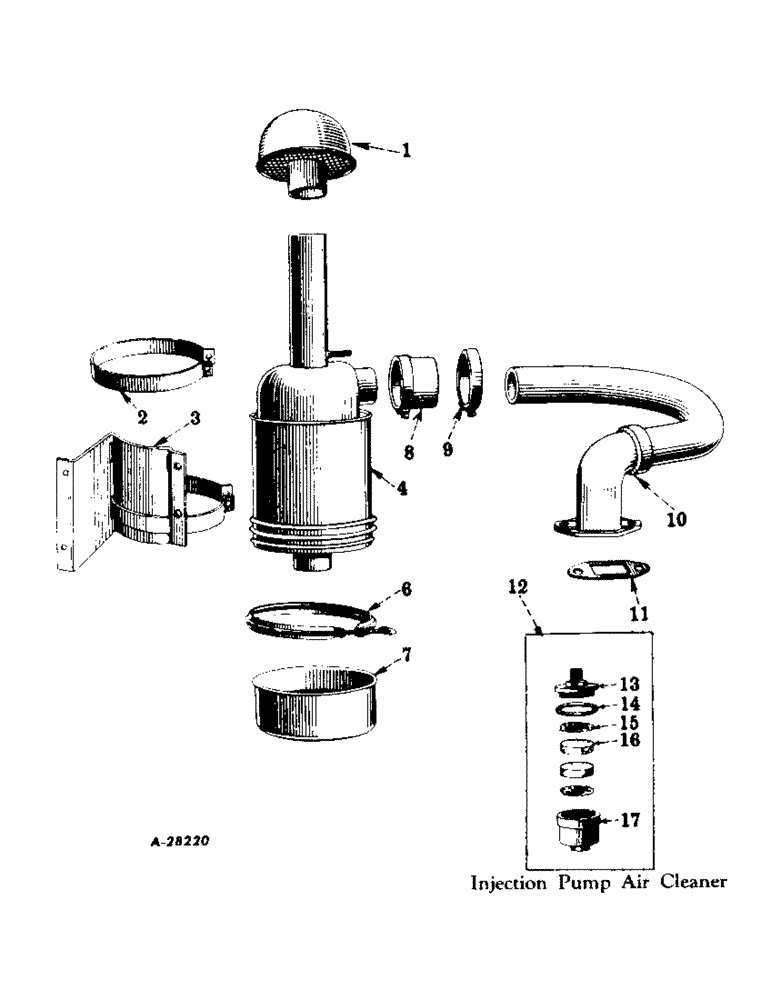

Запчасти Case IH SUPER M (212) - CHASSIS, AIR CLEANER AND CONNECTIONS, SUPER "MD" AND "MDV" (12) - CHASSIS

357659R91

CLEANER, air, assembly (7") (Donaldson) (composed of (1) body 357716R91, (1) clamp 54269D, (1) cup 355444R91) (Mfr. A7143)

1шт.

357667R91

CLEANER, air, assembly (7") (Donaldson) (for tractors equipped with cotton picker) (composed of (1) body 357717R91, (1) clamp 54269D, (1) cup 355444R91)

1шт.

1

353018R91

CAP

air intake (Mfr. X16811)

1шт.

2

53051DX

BAND, air cleaner bracket, w/nut, 105605 and screw, 117296

2шт.

105605

NUT

sq-hd., 5/16-18 NC

2шт.

117296

SCREW, slotted-fil-hd., 5/16-18 NC x 1-1/2"

2шт.

3

60927D

BRACKET, air cleaner

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

357717R91

BODY, (for tractors equipped with cotton picker)

1шт.

4

357716R91

BODY, (Mfr. P13832)

1шт.

6

54269D

CLAMP, oil cup retaining (Mfr. P3009)

1шт.

7

355444R91

CUP, oil (Mfr. P7220)

1шт.

8

45822DA

HOSE

air cleaner pipe, 2-1/4" I.D. x 2-1/4" long, 8 ply

1шт.

9

45813D

CLAMP

air cleaner pipe hose

2шт.

10

60930DA

PIPE AND ELBOW, air cleaner, w/plug, 103867

1шт.

220068

NUT, hex., 1/2-13 NC

2шт.

103867

PLUG

pipe

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

54040D

GASKET

GASKET, air cleaner pipe elbow

1шт.

12

64643D

CLEANER, air, injection pump, assembly

1шт.

13

9454D

CAP, injection pump air cleaner

1шт.

14

64576D

GASKET, injection pump air cleaner body

1шт.

15

64578D

RETAINER, injection pump air cleaner filter element

2шт.

16

54577D

ELEMENT, injection pump air cleaner filter

2шт.

17

9453D

BODY, injection pump air cleaner

1шт.
