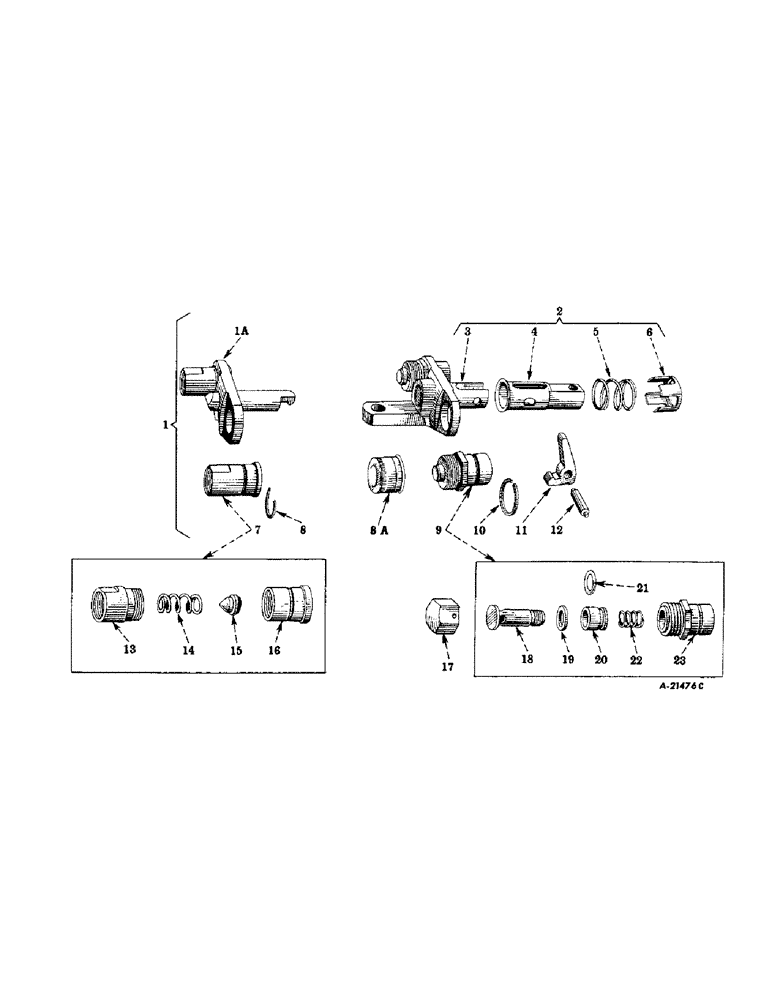

Запчасти Case IH SUPER M (394) - HYDRAULIC SYSTEM, BREAK-AWAY COUPLING, AEROQUIP CORP. (07) - HYDRAULIC SYSTEM

353086R91

COUPLING

break-away, assembly (Mfr. 5210)

1шт.

1

353216R91

COUPLING

break-away, rear section, assembly (composed of (2) coupling half 353218R91, (1) frame 353220R1, (2) ring 353228R1) (Mfr. 52102)

1шт.

1a

353220R1

FRAME, break-away, rear (less reference nos. 7 and 8) (optional with 357137R91) (Mfr. 52112)

1шт.

1a

357137R91

FRAME, break-away, rear (less reference nos. 7 and 8) (optional with 353220R1) (Mfr. S521121)

1шт.

2

353215R91

COUPLING, break-away, front section, assembly (composed of (2) coupling half 353217R91, (1) frame 353219R91, (2) ring 353227R1) (Mfr. 52101)

1шт.

2

353219R91

FRAME, break-away, assembly (composed of (1) cover 353223R1, (1) drawbar 353222R1, (1) frame 353221R1, (1) latch 353225R1, (1) pin 353226R1, (1) spring 353224R1) (Mfr. 52111)

1шт.

3

353221R1

FRAME, break-away, front (less reference no. 9) (Mfr. 52111)

1шт.

4

353222R1

DRAWBAR, break-away frame (optional with 357138R91) (Mfr. 521112)

1шт.

4

357138R91

DRAWBAR, break-away frame (optional with 353222R1) (Mfr. S521112)

1шт.

5

353224R

SPRING, break-away frame latch (Mfr. 521114)

1шт.

6

353223R1

COVER, break-away frame latch spring (Mfr. 521113)

1шт.

7

353218R91

COUPLING

half, break-away, rear (composed of (1) adapter 357129R1, (1) body 357130R1, (1) spring 357128R1, (1) valve 357127R1) (Mfr. 5200S28)

2шт.

8

353228R1

RING, snap, break-away coupling, rear (Mfr. 210011)

2шт.

8a

355190R3

CAP, dust, break-away coupling, front section (Mfr. 5200328)

2шт.

9

353217R91

COUPLING, half, break-away, front, assembly (composed of (1) body 357131R1, (1) ring 352221R1, (1) seal 357134R91, (1) sleeve 357133R1, (1) spring 357135R1, (1) valve 357132R1) (Mfr. 5200S18)

2шт.

10

353227R1

RING, snap, break-away coupling, front (Mfr. 210012)

2шт.

11

353225R1

LATCH, break-away frame (Mfr. 521115)

1шт.

12

353226R1

PIN, break-away frame latch (Mfr. 521116)

1шт.

13

357129R1

ADAPTER, break-away coupling (Mfr. 5200168)

2шт.

14

357128R1

SPRING

break-away coupling poppet valve (Mfr. 5200268)

2шт.

15

357127R1

VALVE, poppet, break-away coupling (Mfr. 5100158)

2шт.

16

357130R1

BODY, break-away coupling half, rear (Mfr. 5200178)

2шт.

17

357136R2

EXTRACTOR, break-away coupling tubular valve (Mfr. 15538)

1шт.

18

357132R1

VALVE

tubular, break-away coupling (Mfr. 5200128)

2шт.

19

357134R91

SEAL, break-away coupling washer (Mfr. 520013C8)

2шт.

20

357133R1

SLEEVE, insert, break-away coupling (Mfr. 510013A8)

2шт.

21

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, break-away coupling tubular valve

2шт.

22

357135R1

SPRING

break-away coupling tubular valve (Mfr. 5200278)

2шт.

23

357131R1

BODY, front, break-away coupling half (Mfr. 5200118)

2шт.

357963R91

COUPLING, half, front, 353217R91 and coupling, half, rear, 357964R91 (Mfr. 5200)

4шт.

357964R91

COUPLING, half, break-away, rear, 353218R91, w/nut, 357965R1 and ring, 353228R1 (Mfr. 5200S5)

4шт.

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, pipe, 1/2 x 1-1/2"

2шт.

357965R1

NUT, union, break-away coupling half, rear (Mfr. 5200258)

4шт.
