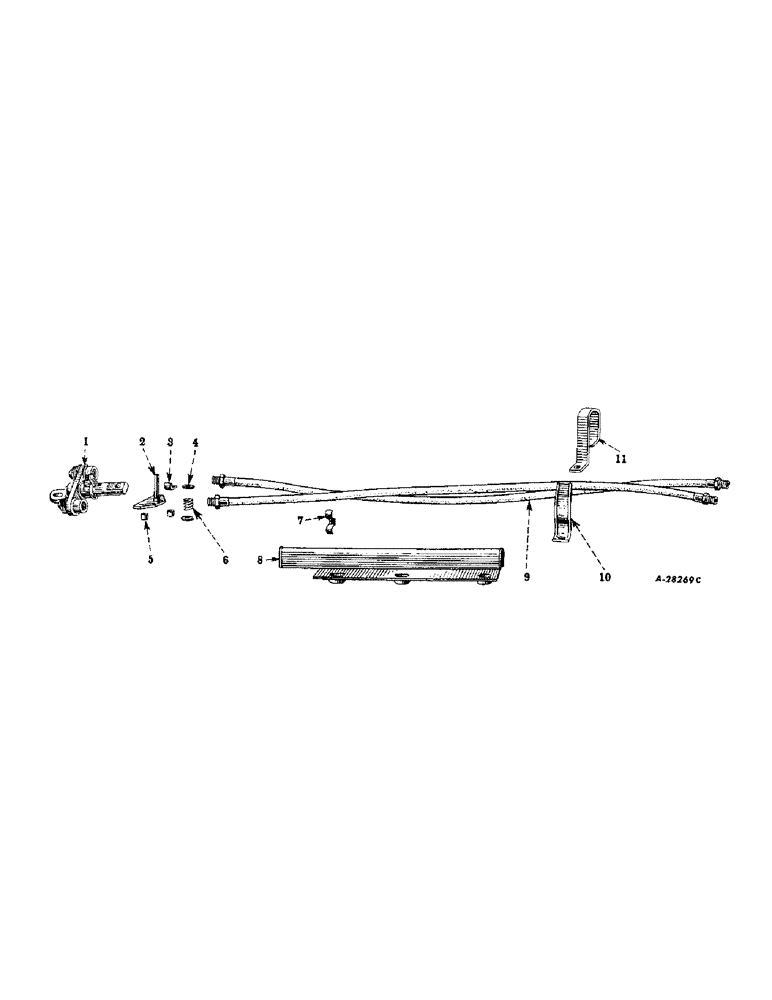

Запчасти Case IH SUPER M (390) - HYDRAULIC SYSTEM, BREAK-AWAY COUPLING, FRONT SECTION, BRACKET, HOSE & GUIDE COUNTERSHAFT DRIVEN PUMP (07) - HYDRAULIC SYSTEM

1

353215R91

COUPLING, break-away, front section, assembly (for components see list of part under detail of "break-away coupling")

1шт.

2

353208R91

BRACKET, break-away coupling (see note A)

1шт.

2

358482R91

BRACKET, break-away coupling (see note B)

1шт.

220066

NUT, hex., 3/8-16NC (see note B)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

(See note A)

2шт.

(See note B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note B) 3/8"

1шт.

19849H

WASHER, plain, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga.

3шт.

3

353211R1

STOP, break-away coupling (see note A)

1шт.

4

19849H

Follows reference no. 2

1шт.

5

353212R1

SPACER, break-away coupling bracket, 1/2" (see note A)

2шт.

5

353232R1

SPACER,3/8" Pipe x .344

break-away coupling bracket, short, 11/32" (used on tractors equipped with power take-off) (see note A)

1шт.

5

353232R1

SPACER,3/8" Pipe x .344

break-away coupling bracket, short, 11/32" (see note B)

1шт.

5

354158R1

SPACER, break-away coupling bracket, short, 5/8" (used on super "MD" and "MDV" tractors equipped with power take-off and electric starting and lighting) (see note A)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

5

354159R1

SPACER,3/8" Pipe x 13/16"

break-away coupling bracket, long, 13/16" (used on super "MD" and "MDV" tractors not equipped with power take-off but equipped with electric lighting and starting) (see note A)

1шт.

6

353213R2

SPRING

break-away coupling bracket

1шт.

7

358480R1

CLAMP, control valve hose (see note B)

2шт.

113954

SCREW

machine, slotted-rd-hd., 1/4-20NC x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

353114R1

SHIELD, control valve hose (see note A)

1шт.

9

354040R91

HOSE, valve to coupling, 3/8" I.D. x 53-1/2" (optional with 361080R91) (see note A)

2шт.

9

361080R91

HOSE, valve to coupling, 3/8" I.D. x 54" (optional with 354040R91) (see note A)

2шт.

9

358479R91

HOSE, valve to coupling, 3/8" I.D. x 57-1/2" (optional with 359332R91 and 360902R91) (see note B)

1шт.

9

359332R91

HOSE, valve to coupling, 3/8" I.D. x 57-1/2" (optional with 358479R91 and 360902R91) (see note B)

1шт.

9

360902R91

HOSE, valve to coupling, 3/8" I.D. x 57-1/2" (optional with 358479R91 and 359332R91) (see note B)

1шт.

10

352337R1

BRACKET, control valve hose (see note A)

1шт.

10

358910R1

BRACKET, control valve hose support (see note B)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

354154R91

PACKAGE, battery box spacer (consists of (1) cable 39265DA, (1) nut 103026, (2) screw 179874, (2) screw 181370, (1) screw 181379, (1) spacer 354158R1, (1) spacer 354159R1, (3) spacer 354167R1, (1) washer Q105, (1) washer 103321)

1шт.
