Запчасти Case IH SUPER M (376) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

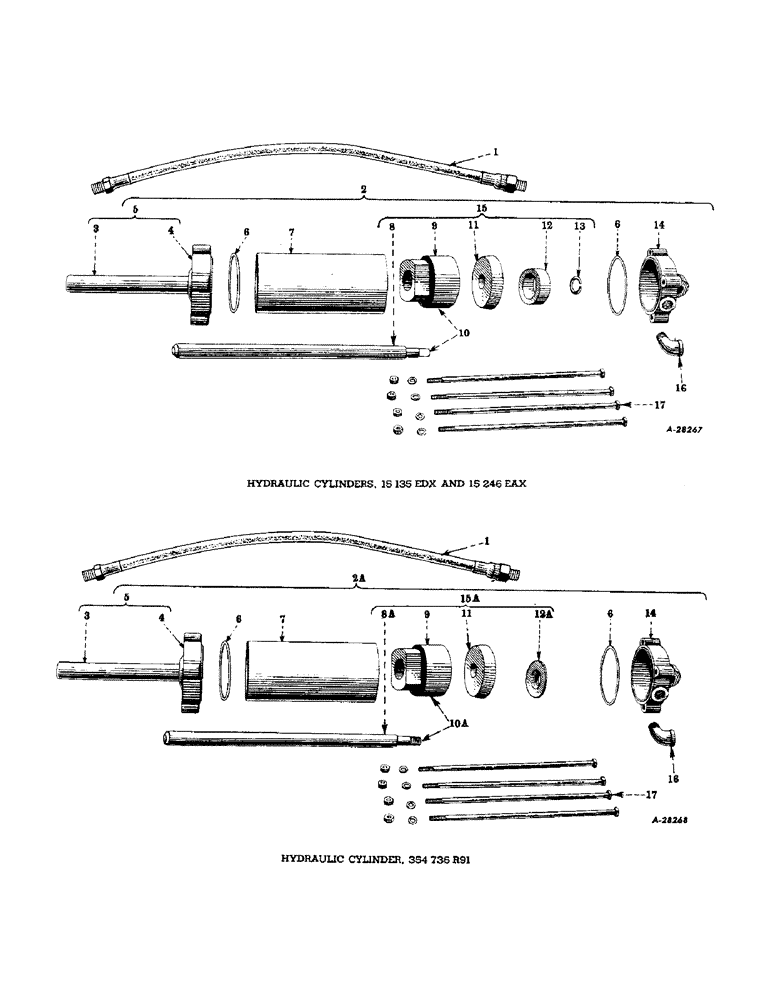

Схема запчастей Case IH SUPER M - (376) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM
2a
7
9
3
6
14
17
10a
1
1
4
6
11
9
7
10
6
3
16
6
4
8a
12
5
15
14
12a
16
13
8
5
2
15a
15
17

Артикул

Название

Примечание

Количество

1

351130R92

HOSE, hydraulic, 3/8" I.D. x 35-1/2" (will work for 355203R91) (optional with 360114R91)

1шт.

1

360114R91

HOSE, hydraulic, 3/8" I.D. x 35-1/2" (will work for 355209R91) (optional with 351130R92)

1шт.

2

15135EDX

CYLINDER, hydraulic, 2-1/4 x 8", assembly (A only)

1шт.

2

15246EAX

CYLINDER, hydraulic, 1-3/4 x 8", assembly (B only)

1шт.

2a

354736R91

CYLINDER, hydraulic, 3 x 8", assembly (C only)

1шт.

3

15095EA

GUIDE

piston rod

1шт.

4

5035EA

HEAD, cylinder, front (A only)

1шт.

4

5039EA

HEAD, cylinder, front (B only)

1шт.

4

5066EB

HEAD, cylinder, front (C only)

1шт.

5

15139EAX

HEAD, cylinder, front, 5035EA, w/guide, 15095EA (A only)

1шт.

5

15140EAX

HEAD, cylinder, front, 5039EA, w/guide, 15095EA (C only)

1шт.

5

15256EAX

HEAD, cylinder, front, 5066EB, w/guide, 15095EA (B only)

1шт.

6

15100EA

O-RING

GASKET, cylinder head (A only)

2шт.

6

15109EA

SHIM

GASKET, cylinder head (C only)

2шт.

6

15247EA

SHIM

GASKET, cylinder head (B only)

2шт.

7

15096E

SLEEVE, cylinder (A only)

1шт.

7

15107E

SLEEVE, cylinder (C only)

1шт.

7

15248E

SLEEVE

cylinder (B only)

1шт.

8

15379E

ROD, piston (A only)

1шт.

8

15379E

ROD, piston (B only)

1шт.

8a

354737R1

ROD, piston (C only)

1шт.

9

5113E

PISTON (B only)

1шт.

9

5192E

PISTON (A only)

1шт.

9

5193E

PISTON (C only)

1шт.

10

15380EX

PISTON, 5113E, w/rod, 15379E (B only)

1шт.

10

15754EX

PISTON, 5192E, w/rod, 15379E (A only)

1шт.

10a

354737R11

PISTON, 5193E, w/rod, 354737R1 (C only)

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, (C only) 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), (C only) 3/32" x 1"

1шт.

11

15253E

CUP

piston (B only)

1шт.

11

15750E

CUP

piston (A only)

1шт.

11

15752E

CUP

piston (C only)

1шт.

12

15251E

RETAINER, piston cup (B only)

1шт.

12

15749E

RETAINER, piston cup (A only)

1шт.

12a

354738R1

RETAINER, piston cup (C only)

1шт.

13

15254E

RING

snap (used with plain end piston rod (A & B only)

1шт.

14

5036EA

HEAD, cylinder, rear (A only)

1шт.

14

5040E

HEAD, cylinder, rear (C only)

1шт.

14

5067E

HEAD, cylinder, rear (B only)

1шт.

15

495032R91

ROD, piston, assembly (B only)

1шт.

15

494033R91

ROD, piston, assembly (A only)

1шт.

15a

354757R91

ROD, piston, assembly (C only)

1шт.

16

108686

ELBOW,90 Degree, 1/2" NPT Street

street, 90deg., 1/2"

1шт.

17

13789R1

BOLT, machine, sq-hd., 3/8-16NC x 13-1/4" (A & C only)

4шт.

(B only)

3шт.

280136

NUT,3/8"-16, G8

(A & C only) 3/8"-16, G8

4шт.

(B only)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A & C only) 3/8"

4шт.

(B only)

3шт.
