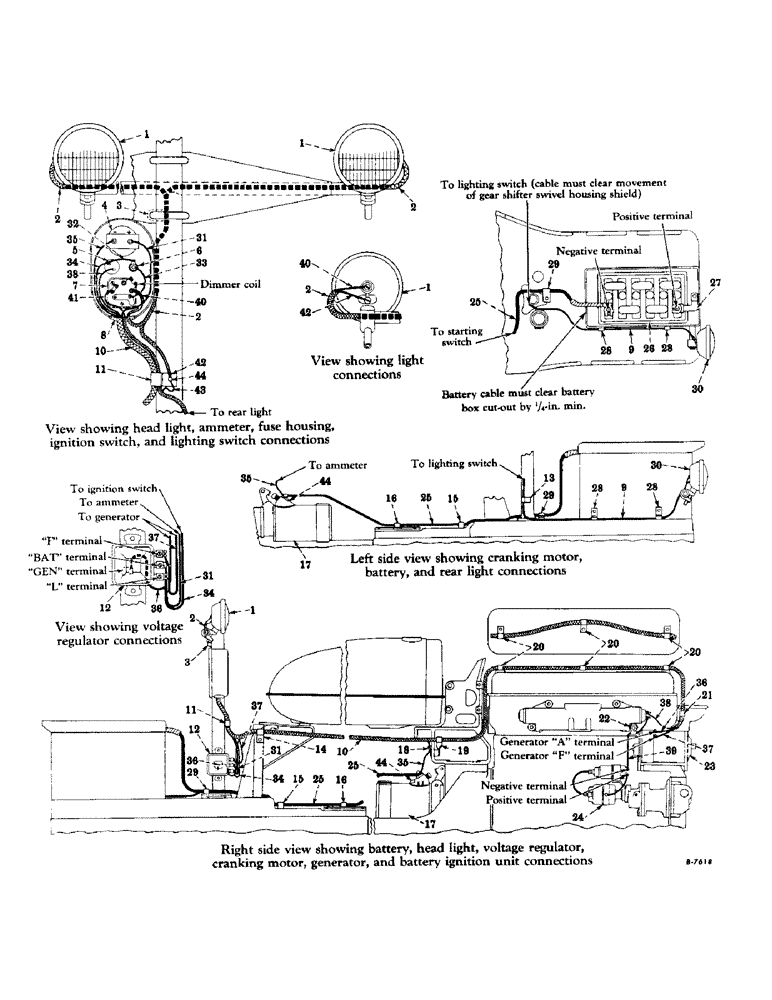

Запчасти Case IH SUPER M (194) - ELECTRICAL SYSTEM, DIESEL ENGINE, ELECTRICAL STARTING AND LIGHTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

357885R91

HEADLIGHT, sealed beam (guide lamp 926116) (for components see list of parts under detail of"headlights or rear light")

2шт.

220068

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

358916R91

HARNESS

headlight cable

1шт.

3

350742R1

CLIP (on lower "U" bolt of headlight support bracket)

1шт.

4

42383DC

AMMETER

(AC-1501438) (includes clamp, 250466R92, four nut, 120614 and two washer, 120217) (optional with 354473R91)

1шт.

4

354473R91

AMMETER

(Rochester 4010-C6) (includes clamp, 352154R91, four nut, 120614, two washer, 120217 and two washer, 352265R1) (optional with 42383DC)

1шт.

4

360053R91

INDICATOR

charge (Rochester Mfg. 4015-C1) (includes clamp, 360054R91, four nut, 120614, two washer, 120217 and two washers, 352265R1)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

62801DC

SWITCH

battery ignition (for components see list of parts under detail of "battery ignition switch")

1шт.

6

354232R91

BOX

HOUSING, fuse, w/knob 356445R91 (Bussman Mfg. Co.)

1шт.

7

SWITCH, lighting (Delco-Remy 1994043) (for components see list of parts under detail of "lighting switch")

1шт.

141706

WASHER

lock, internal tooth, 11/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

52062D

GROMMET

on instrument panel cover

1шт.

9

358915R91

CABLE, harness, switch to rear light

1шт.

10

358993R91

HARNESS, cable

1шт.

11

56279D

NO LONGER SERVICED

CLIP (on control bracket mounting bolt)

1шт.

12

355701R91

REGULATOR

voltage (Delco-Remy 1118381) (for components see list of parts under detail of "voltage regulator")

1шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

702222

SUPPORT

SCREW, cap, hex-hd., 1/4-20NC x 2-1/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

60937D

CLIP (on regulator lower mounting bolt)

1шт.

14

56273D

CLIP (on rear fuel tank support)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

351914R1

CLIP

(on rear fuel tank support, R.H. mounting bolt) (for tractors equipped with hydraulic lift-all with engine driven pump)

1шт.

15

358902R91

CLIP (on rear frame cover)

1шт.

16

358902R91

CLIP (on pulley drive opening cover mounting bolt)

1шт.

17

357908R91

MOTOR, cranking (Delco-Remy 1108982) (positive engagement type)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

350742R1

CLIP (on fuel tank front support - L.H. side)

1шт.

19

62505D

CLIP (on fuel tank front support)

1шт.

20

355097R1

CLIPS (on valve cover studs)

3шт.

21

355097R1

CLIP (on water outlet elbow, R.H. mounting bolt)

1шт.

22

263308R91

CLIP (on front lower mounting bolt of intake manifold)

1шт.

446211

WASHER, plain, 7/16" I.D. x 7/8" O.D. x 1/16"

1шт.

23

355694R91

GENERATOR (Delco-Remy 1100964) (for components see list of parts under detail of "generator")

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

356610R91

UNIT, battery ignition (for components see list of parts under detail of "battery ignition" unit)

1шт.

25

358994R91

CABLE, battery to starting switch

1шт.

26

358907R91

BATTERY (Auto-Lite 1B-76) (12 volt) (optional with 360036R91)

1шт.

26

360036R91

BATTERY (Globe-Union GU-1447) (12 volt) (optional with 358907R91)

1шт.

27

358987R91

CABLE

STRAP, Serial Range: battery-ground

1шт.

28

358431R1

CLIPS, on battery box

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

62512D

CLIP, battery cable (on steering post base rear mounting bolt)

1шт.

30

357885R91

LIGHT, rear sealed beam (guide lamp 926116) (for components see list of parts under detail of "headlights or rear light")

1шт.

220068

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

31

CABLE, regulator "BAT" terminal to ammeter (natural with black and red cross tracers) (order 358993R91)

1шт.

32

CABLE, fuse housing to ignition switch (used with 354232R91)

1шт.

33

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

NOTE - Used to plug hole in electrical instrument panel on super "MD" tractors equipped with cotton picker mounting attachment.

1шт.

34

CABLE, regulator "L" terminal to ignition switch (natural with green cross tracers) (order 358993R91)

1шт.

35

CABLE, ammeter to starting switch (black with yellow tracers) (order 358993R91)

1шт.

36

CABLE, regulator "GEN" terminal to generator "A" terminal (natural with red cross tracers) (order 358993R91)

1шт.

37

CABLE, regulator "F" terminal to generator "F" terminal (natural with black tracers) (order 358993R91)

1шт.

38

CABLE, ignition switch to manifold switch (order 358993R91)

1шт.

39

266768R91

CABLE, manifold, Serial Range: switch-coil

1шт.

40

CABLE, lighting switch to headlight (black) (order 358916R91)

1шт.

41

CABLE, lighting switch to rear light (black) (order 358915R91)

1шт.

42

CABLE, headlight to ground (natural) (order 358916R91)

1шт.

43

CABLE, rear light to ground (natural) (order 358915R91)

1шт.

44

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (bolt, light, ground thru steering column)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

356062R91

BOLT

AND NUT, battery cable

2шт.

250466R92

CLAMP, ammeter (AC-1501309) (used with ammeter, 42383DC)

1шт.

352154R91

CLAMP, ammeter (Rochester RM-4000-3) (used with ammeter, 354473R91)

1шт.

360054R91

CLAMP, charge indicator (Rochester 4015-D) (used with indicator, 360053R91)

1шт.

359165R91

COVER, electrical instrument mounting panel

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10815V

FUSE

10 ampere

1шт.

356445R1

KNOB, fuse housing

1шт.

357891R1

PANEL, electric instrument mounting

1шт.

432465

PLUG, dust, fuse housing hole (see note)

1шт.

432491

PLUG, dust, lighting switch hole (see note)

1шт.

352265R1

WASHER, mounting ammeter clamp (Rochester 4000-28-C) (used with ammeter, 354473R91 and indicator, 360053R91)

2шт.

358924R1

ROD, starting switch control (see starting mechanism)

1шт.

51063DA

SCREW

electrical instrument mounting panel

2шт.

225-10108

NUT,#8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

59109D

SPACER, ignition switch

1шт.

358285R1

SPACER,3/8" Pipe x 1 3/8"

battery ground strap

1шт.

16247R1

SCREW, cap, hex-hd., 7/16-14NC x 4-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
