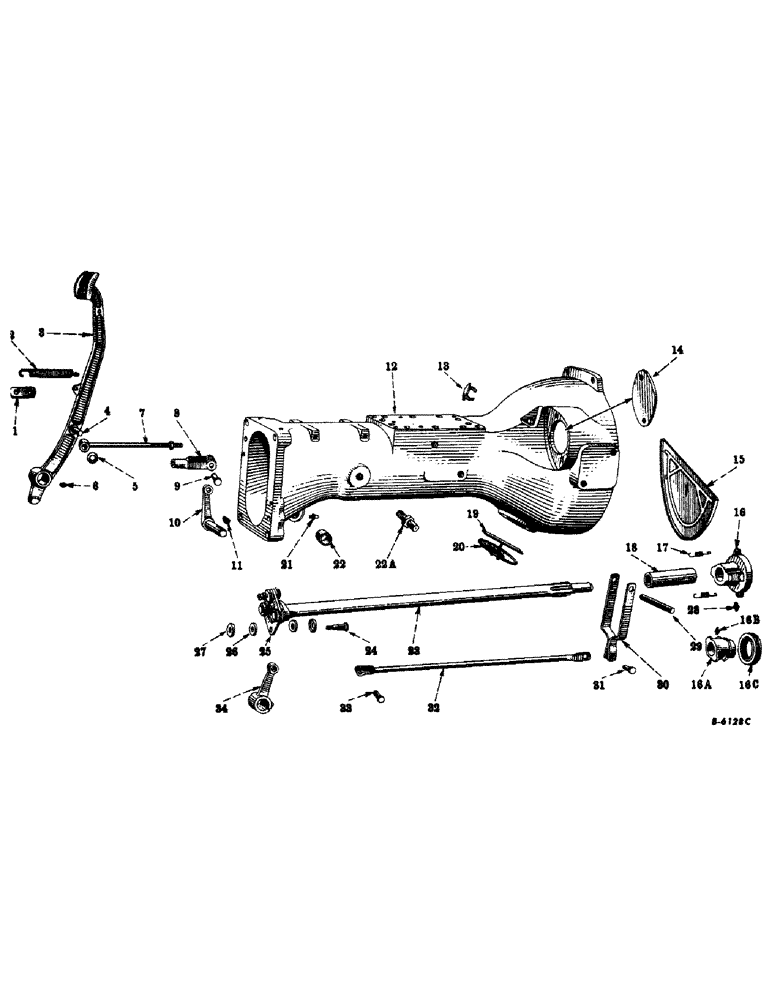

Запчасти Case IH SUPER C (103) - CHASSIS, CLUTCH HOUSING, CONTROLS AND CONNECTIONS (12) - CHASSIS

1

355812R1

ANCHOR, clutch pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

351210R1

SPRING

clutch pedal

1шт.

3

355807R21

PEDAL, clutch, w/pin, 355804R1 (Will work for 355734R91)

1шт.

4

355804R1

PIN, clutch pedal rod

1шт.

5

355803R1

WASHER, clutch pedal rod

1шт.

6

66584D

FITTING

lubrication

1шт.

7

355802R11

ROD, clutch pedal

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

8

117825

CLEVIS, adjustable rod end, 7/16-20NF

1шт.

9

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, rod end, 7/16 x 1-15/64"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

355798R11

SHAFT, clutch release

1шт.

11

IH124555

WOODRUFF KEY,#16, 3/16" x 1 1/8", HT

KEY, Woodruff, 3/16 x 1-1/8"

1шт.

12

357109R93

HOUSING, clutch, 351687R71, w/cover, 351486R1 (S/N, Serial Range: 100001-138324)

1шт.

12

351687R81

HOUSING, clutch, assembly (S/N 138325 up), Composed of

1шт.

355805R1

BUSHING,22.61mm ID x 25.45mm OD x 21.97mm L

2шт.

Q3852

FITTING

1шт.

43546D

GUIDE

1шт.

351687R8

HOUSING (NSS)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

4шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, cap, hex-hd., 5/8-11NC x 2-1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

57579DX

COVER

dust, clutch housing, w/spring

1шт.

111871

RIVET,Oval Hd, 1/8" x 5/32"

(Will work for 350510R1) Oval Hd, 1/8" x 5/32"

2шт.

14

48554D

COVER, starter pad

1шт.

179877

CAPSCREW,Hex, 1/2" - 13 x 5/8"

SCREW, cap, hex-hd., 1/2-13NC x 5/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

354909R1

COVER

clutch housing

1шт.

179812

GEAR

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

350830R31

RETAINER

BEARING AND RETAINER, clutch release, w/two fittings, 109454 (For tractors not equipped with hydra-creeper attachment)

1шт.

350830R31 clutch release assembly subs to 364790R91, when 364790R91 is used springs part number 355795R2 are removed and not used. R. Dunn 13 Aug. 1997

1шт.

16a

6116D

SLEEVE

clutch release

1шт.

For tractors equipped with hydra-creeper attachment.

1шт.

16b

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , clutch release sleeve (Optional with 119512) 1/8"-27 x .66 lg

1шт.

For tractors equipped with hydra-creeper attachment.

1шт.

16b

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, clutch release sleeve (Optional with 109461)

1шт.

For tractors equipped with hydra-creeper attachment.

1шт.

16c

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

BEARING, clutch release (Optional with 55212D and 361292R91)

1шт.

For tractors equipped with hydra-creeper attachment.

1шт.

16c

55212D

BEARING

clutch release (Optional with 18567D and 361292R91)

1шт.

For tractors equipped with hydra-creeper attachment.

1шт.

16c

361292R91

BALL BEARING,52.39mm ID x 84.15mm OD x 19.05mm W

clutch release (Optional with 18567D and 55212D)

1шт.

For tractors equipped with hydra-creeper attachment.

1шт.

17

355795R2

VALVE SPRING

SPRING, return, clutch release bearing (For tractors not equipped with hydra-creeper attachment)

2шт.

18

43546D

GUIDE

sleeve, clutch release

1шт.

19

57578DX

STRAP

BAR, clutch housing hand hole cover, w/welding bolt

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

20

57576DX

COVER ASSY

COVER, clutch housing hand hole, w/felt (S/N, Serial Range: 100001-138324)

1шт.

351486R1

COVER ASSY

COVER, clutch housing hand hole (S/N 138325 up)

1шт.

21

66584D

FITTING

lubrication (S/N, Serial Range: 100001-161082)

1шт.

21

Q3852

FITTING

lubrication (Optional with 443567) (S/N 161083 up)

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, lubrication (Optional with Q3852) (S/N 161083 up)

1шт.

22

355805R1

BUSHING,22.61mm ID x 25.45mm OD x 21.97mm L

clutch release shaft

2шт.

22a

517832R1

STUD, stationary hitch point (Tractors equipped with fast hitch)

1шт.

517843R1

COTTER PIN

PIN, cotter, quick-attachable

1шт.

23471S

WASHER

plain, 25/32" I.D. x 1-1/2" O.D. x no. 7 GA.

1шт.

23

351852R2

SHAFT

clutch

1шт.

24

43552DBX

SCREW

clutch drive shaft joint, w/nut, 103026 and washer, 103321

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

43549D

PLATE ASSY.

DISC, clutch drive shaft joint

1шт.

26

43550D

RUBBER WASHER

rubber, clutch drive shaft joint

8шт.

27

43551D

RETAINER

clutch drive shaft joint rubber washer

8шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (Optional with 110347) (For tractors not equipped with hydro-creeper attachment) 1/4"-28 NPT x .54" lg

2шт.

28

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (Optional with 109454) (For tractors not equipped with hydro-creeper attachment)

2шт.

29

46278DAR

AXLE PIN

PIN, pivot, clutch release yoke

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

30

47716D

CLEVIS COUPLING

YOKE, clutch release

1шт.

31

357369R1

AXLE PIN

PIN, rod end (3/8") (Will work for 103496)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

32

355806R11

ROD, operating, clutch

1шт.

33

82663H

PIN

rod end (7/16") (Will work for 103497)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

34

355800R1

LEVER, clutch release

1шт.

103026

NUT,3/8"-24, G5

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
