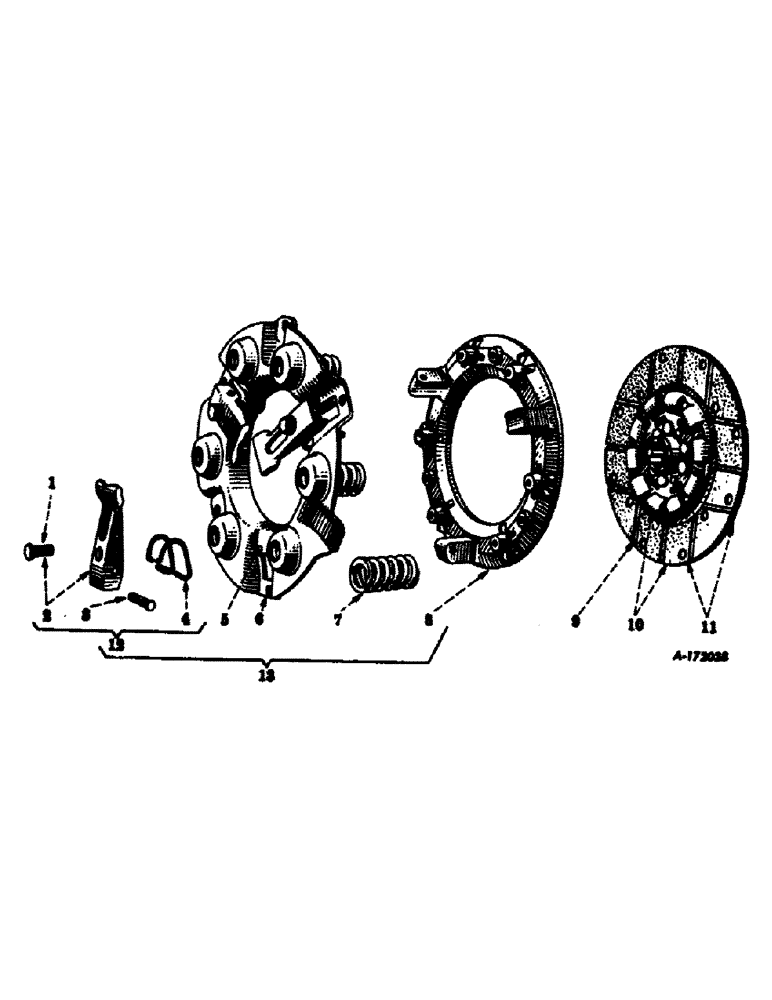

Запчасти Case IH SUPER C (102) - CHASSIS, CLUTCH, ROCKFORD (12) - CHASSIS

1

352745R1

BOLT,3/8" - 24 x 3/4", Class 2

SCREW, adjusting, clutch lever

1шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, Jam, 3/8"-24, G5

1шт.

2

351449R91

LEVER

LEVER, clutch, w/screw, 352745R1 and nut, 114494

3шт.

3

51460D

STUD

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

4

51461D

SPRING

SPRING, clutch lever

3шт.

5

7911T

SEAT/SLOT

SEAT, clutch lever adjusting screw (1/4" steel ball)

3шт.

6

352744R91

PLATE ASSY.

PLATE, back clutch, w/three seats, 7911T

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

52907D

SPRING

SPRING, pressure, clutch (S/N, Serial Range: FC-100001-184863)

6шт.

7

353244R1

SPRING

SPRING, pressure, clutch (S/N FC-184864 up)

6шт.

7

352583R91

SPRING

PACKAGE, clutch pressure spring (Consists of six springs, 52907D) (S/N, Serial Range: FC-100001-184863)

1шт.

7

361169R91

PACKAGE

PACKAGE, clutch pressure spring (Consists of six springs, 353244R1) (S/N FC-184864 up)

1шт.

8

351448R1

PLATE

PLATE, pressure, clutch

1шт.

9

53795V

RIVET,Csk Hd, 3/16" x 5/16"

RIVET, tubular, csk-hd., brs., 3/16 x 5/16"

12шт.

10

56631DB

DISC

DISC, driven, clutch, w/facing set, 30718DXA

1шт.

10

56631DBR

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 6Tooth hub, full face friction matl

1шт.

10

56631DBC

CORE-CLUTCH DISC

Return Part Number

1шт.

10

389771A1

REMAN-CLUTCH KIT

Super C Farmall, Kit Includes: 1 - 1251692C91 Plate, 1 - 56631DBR Disc, 1 - ., 1 361292R91 Brg. 1 - 364527R2 Pivot Brg.

1шт.

10

389771A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

11

30718DXA

FACING

FACING SET, clutch (Two facings with twenty-two rivets, 53795V)

1шт.

12

352582R91

LEVER

LEVER, clutch, assembly, Composed of

1шт.

351449R91

LEVER

LEVER

3шт.

51460D

STUD

PIN

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

51461D

SPRING

SPRING

3шт.

13

361581R91

LARGE PLATE

PLATE, LARGE PLATE, pressure, clutch, assembly (Will work for 351447R91), Composed of

1шт.

13

1251692C91

REMAN-CLUTCH PLATE

Super C Farmall

1шт.

13

1944233C1

CORE-CLUTCH PLATE

Return Part Number

1шт.

352582R91

LEVER

LEVER

1шт.

351448R1

PLATE

PLATE

1шт.

352744R91

PLATE ASSY.

PLATE

1шт.

361169R91

PACKAGE

SPRING, package

1шт.
