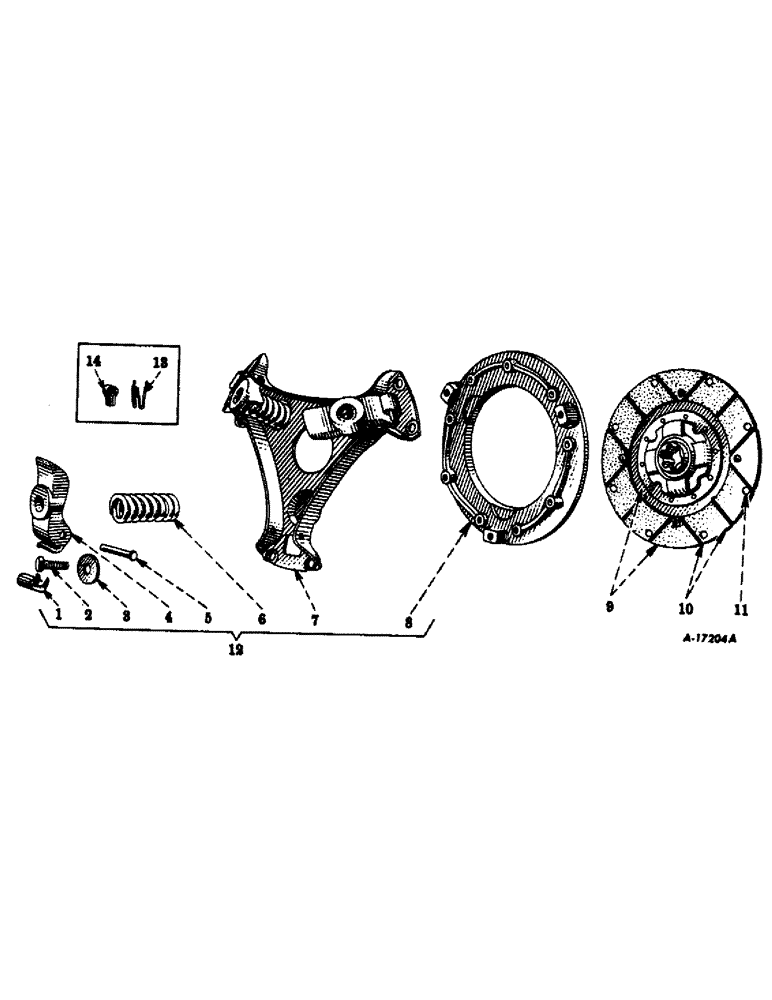

Запчасти Case IH SUPER C (100) - CHASSIS, CLUTCH, AUBURN (12) - CHASSIS

1

355110R1

NO LONGER SERVICED

CLIP, return (Same as 357416R1) (Used with 357419R1) (S/N 152543 up)

3шт.

Engine serial numbers.

1шт.

2

63975D

SCREW, adjusting (Used with 63153D) (S/N, Serial Range: 100001-152542)

3шт.

Engine serial numbers.

1шт.

2

355106R1

SCREW, adjusting (Same as 357415R1) (Used with 357419R1) (S/N 152543 up)

3шт.

Engine serial numbers.

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

3

63157D

WASHER, adjusting screw (Used with 63153D) (S/N, Serial Range: 100001-152542)

3шт.

Engine serial numbers.

1шт.

3

355096R1

WASHER, adjusting screw (Same as 357417R1) (Used with 357418R1) (S/N 152543 up)

3шт.

Engine serial numbers.

1шт.

4

357418R1

LEVER, clutch (Will work for 351919R1)

3шт.

5

63161D

PIN, pivot, clutch lever

3шт.

6

351920R1

SPRING, pressure (S/N, Serial Range: FC-100001-184863)

3шт.

6

360470R1

SPRING, pressure (S/N FC-184864 up)

3шт.

6

361168R91

PACKAGE, clutch pressure spring (Consists of three 360470R1) (S/N FC-184864 up)

1шт.

7

351918R1

BRACKET, clutch

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

63153D

PLATE, pressure, clutch (w/no. 3130 stamped on back of plate) (S/N, Serial Range: 100001-152542)

1шт.

Engine serial numbers.

1шт.

8

357419R1

PLATE, pressure, clutch (w/no. 4325 stamped on back of plate) (S/N 152543 up)

1шт.

Engine serial numbers.

1шт.

9

351297R92

DISC

driven clutch, w/facing set, 30718DXA

1шт.

10

351467R91

FACING, CLUTCH

FACING SET, clutch (Consists of two facings with ten rivets, 63974D) (Used with 351297R91) (S/N, Serial Range: 100001-152542)

1шт.

Engine serial numbers.

1шт.

10

30718DXA

FACING

SET, clutch (Consists of two facings with twenty-two rivets, 53795V) (Used with 351297R92) (S/N 152543 up)

1шт.

Engine serial numbers.

1шт.

11

63974D

RIVET, facing (Used with 351297R91) (S/N, Serial Range: 100001-152542)

10шт.

Engine serial numbers.

1шт.

11

53795V

RIVET,Csk Hd, 3/16" x 5/16"

tubular, csk-hd., brs., 3/16 x 5/16" (Used with 351297R92) (S/N 152543 up)

12шт.

Engine serial numbers.

1шт.

12

361582R91

CLUTCH

PLATE, pressure, clutch, assembly (Will work for 351296R92), Composed of

1шт.

351918R1

BRACKET

1шт.

357418R1

CLIP

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

357418R1

LEVER

3шт.

63161D

PIN

3шт.

357419R1

PLATE

1шт.

355106R1

SCREW

3шт.

360470R1

SPRING

3шт.

355096R1

WASHER

3шт.

13

64771D

SPRING, return (Used with 63153D) (S/N, Serial Range: 100001-152542)

3шт.

Engine serial numbers.

1шт.

14

352751R1

SPRING, cushion (Used with 63153D) (S/N, Serial Range: 100001-152542)

3шт.
