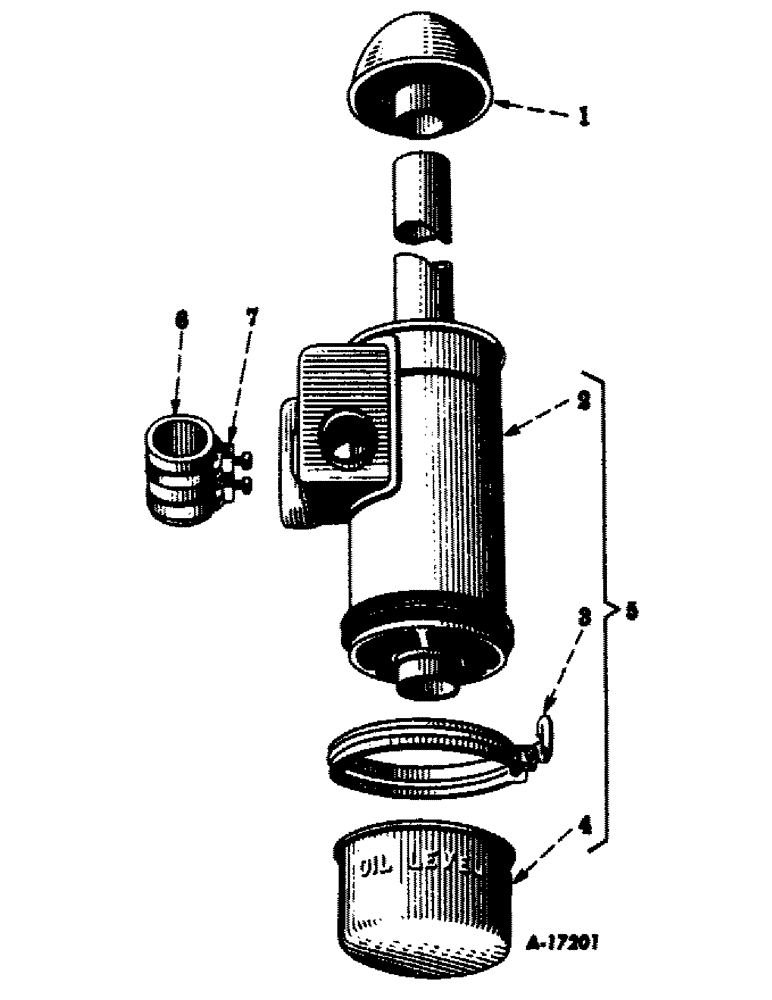

Запчасти Case IH SUPER C (099) - CHASSIS, AIR CLEANER, DONALDSON (12) - CHASSIS

1

361723R91

CAP

air cleaner intake (Mfr. no. X-1672-1)

1шт.

2

352591R92

BODY (Mfr. no. P-13063)

1шт.

3

66357D

CLAMP, retaining, oil cup (Mfr. no. P-2846)

1шт.

4

352597R91

BOWL

CUP, oil (Mfr. no. P-7095)

1шт.

5

351198R92

CLEANER, air, assembly (4-3/8" "A" type) (Optional with 355199R91) (Mfr. no. A-4532), Composed of

1шт.

352591R92

BODY

1шт.

66357D

CLAMP

1шт.

352597R91

BOWL

CUP

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

6

362757R1

INTAKE AIR HOSE,1.50" ID x 1.56", SAE 20R2 Class sc

Connection, Air Cleaner 1.50" ID x 1.56", SAE 20R2 Class sc

1шт.

7

56356D

CLAMP, air cleaner hose

2шт.
