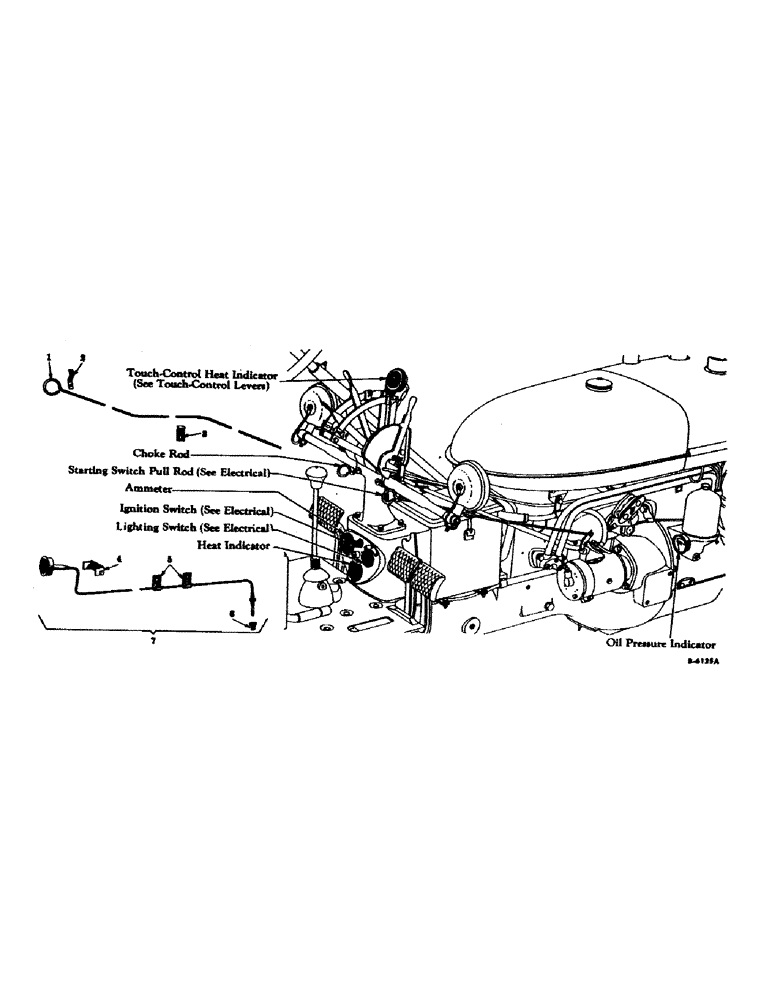

Запчасти Case IH SUPER C (096) - CHASSIS, ENGINE CONTROLS AND INSTRUMENTS (12) - CHASSIS

1

351444R1

ROD, choke

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

2

354379R1

CLIP, choke rod, rear

2шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

350633R3

CLIP

choke rod, front (Tractors equipped with touch-control)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

50417D

CLAMP, heat indicator

1шт.

5

61813D

CLIP

heat indicator

2шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16NC x 9/16"

2шт.

6

51510D

BUSHING

reducing, heat indicator

1шт.

7

353868R91

INDICATOR

heat, assembly (170 degrees - 220 degrees), Composed of

1шт.

51510D

BUSHING

1шт.

50417D

CLAMP

1шт.

INDICATOR (NSS)

1шт.

103089

2шт.

125750

WASHER

2шт.

7

351698R92

GAUGE

INDICATOR, heat, assembly (120 degrees - 180 degrees) (Special) (Low boiling point anti-freeze), Composed of

1шт.

51510D

BUSHING

1шт.

50417D

CLAMP

1шт.

INDICATOR (NSS)

1шт.

372632A1

SPRING

2шт.

125750

WASHER

2шт.

103089

hex., no. 12-24NC

2шт.

125750

WASHER, lock, external tooth, no. 12

2шт.

352147R1

CLIP, choke rod, front (Tractors not equipped with touch-control)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 5/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

363913R91

ATTACHMENT, thermostat and heat indicator (For low boiling-point anti-freeze), Consists of

1шт.

361818R91

THERMOSTAT (133 degrees - 150 degrees)

1шт.

351698R92

GAUGE

INDICATOR

1шт.
