Запчасти Case IH SUPER C (095) - CHASSIS, GOVERNOR CONTROLS (12) - CHASSIS

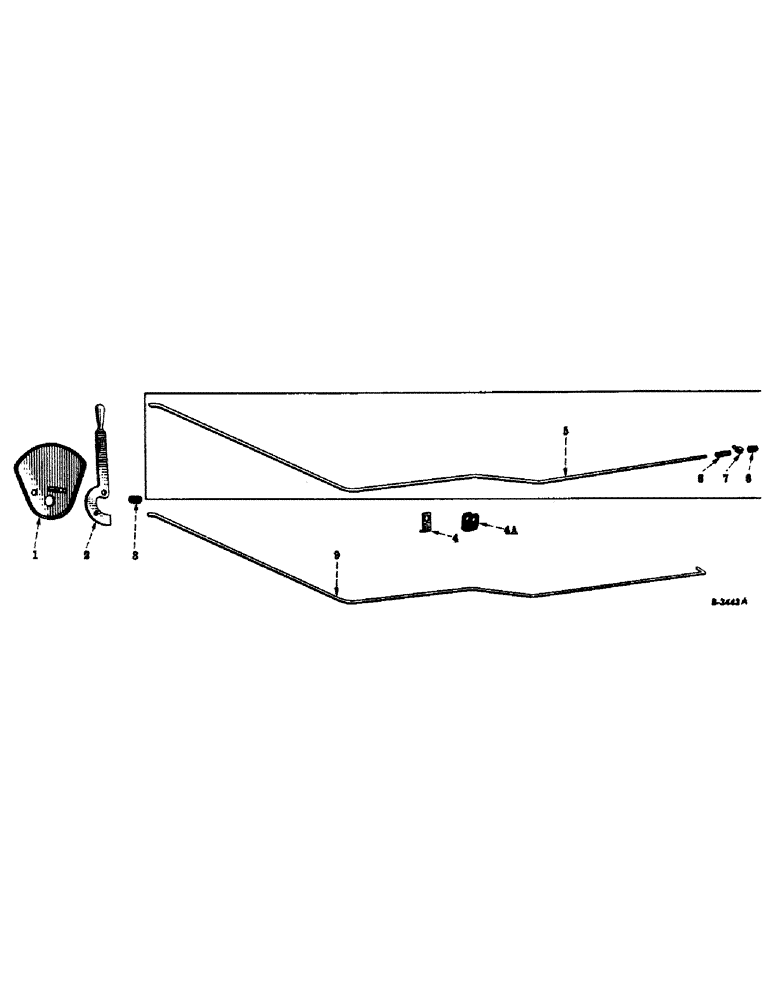

Схема запчастей Case IH SUPER C - (095) - CHASSIS, GOVERNOR CONTROLS (12) - CHASSIS
4a
6
4
3
5
8
1
7
9
2

Артикул

Название

Примечание

Количество

1

354742R11

QUADRANT

SECTOR, governor control, w/pin

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

2шт.

95-11034

WASHER,1/4"

steel, plain, 5/16"

1шт.

2

351327R2

LEVER

governor control

1шт.

3

43650D

SPRING

governor control lever

1шт.

4

350727R1

CLIP, governor control rod (Tractors equipped with touch-control)

1шт.

4a

350614R1

CLIP, governor control rod (Tractors without touch-control)

1шт.

5

351328R1

ROD, governor control (Order 351328R2 - ref. 9)

1шт.

137130

PIN

cotter, 1/16 x 7/16"

3шт.

Q103

WASHER

steel, plain, 1/4"

2шт.

6

53393D

SPRING

equalizer, governor control rod, rear (Used only with 351328R1 - ref. 5)

1шт.

7

51299DA

SWIVEL, governor control rod (Used only with 351328R1 - ref. 5)

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

Q103

WASHER

steel, plain, 1/4"

1шт.

8

51300D

VALVE SPRING

SPRING, equalizer, governor control rod, front (Used only with 351328R1 - ref. 5)

1шт.

9

351328R2

ROD, governor control (Will work for 51299DA, 51300D, 53393D, and 351328R1)

1шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

Q103

WASHER

plain 1/4"

2шт.

Выбрано товаров: 20
