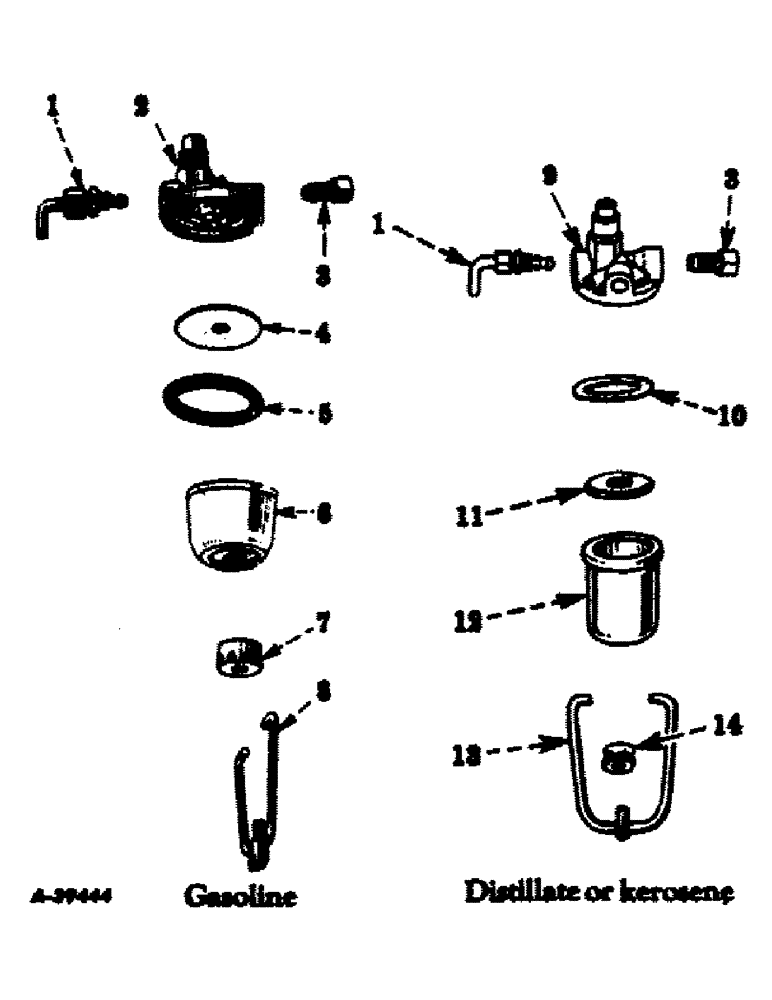

Запчасти Case IH SUPER C (094) - CHASSIS, FUEL STRAINERS (12) - CHASSIS

1

259403R91

COCK

STEM, w/two nuts and packing (A,B,C)

1шт.

2

355141R91

BODY

strainer, w/baffle (Gasoline) (A,B)

1шт.

3

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing (A,B)

1шт.

3

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing (C)

2шт.

4

49923D

FILTER SCREEN

SCREEN, strainer (A,B)

1шт.

5

360679R1

GASKET

strainer (Will work for 49924D) (A,B)

1шт.

6

357958R1

BOWL

strainer (Glass) (Will work for 49922D) (A)

1шт.

6

357778R1

BOWL

strainer (Metal) (B)

1шт.

7

50061D

NUT

strainer (A,B)

1шт.

8

49947D

COLLAR CLAMP

BAIL, strainer (A,B)

1шт.

9

354143R91

STRAINER ELEMENT

BODY, strainer, w/baffle (Distillate or kerosene) (C)

1шт.

10

355888R2

GASKET

strainer (C)

1шт.

11

13194D

STRAINER ASSY.

SCREEN, strainer (C)

1шт.

12

357957R1

BOWL

strainer (Glass) (Will work for 51344VA) (C)

1шт.

13

17676DA

NUT, strainer (C)

1шт.

14

17564D

HOLDER

BAIL, strainer (C)

1шт.
