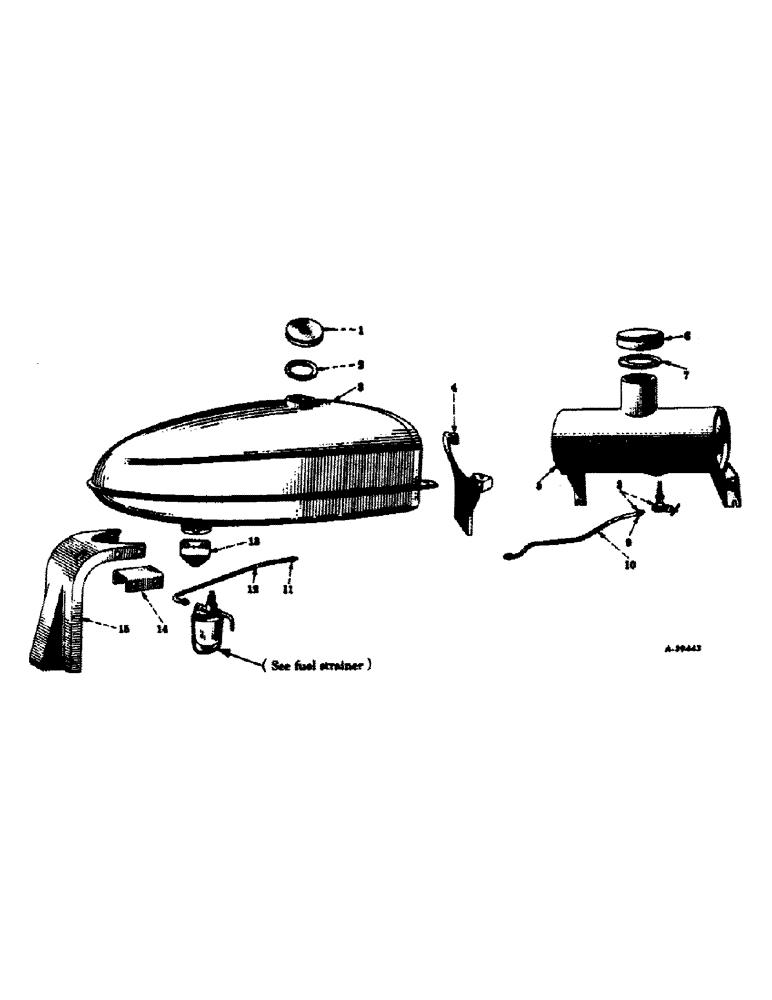

Запчасти Case IH SUPER C (092) - CHASSIS, FUEL TANKS, SUPPORTS AND PIPING (12) - CHASSIS

1

23995DC

FILLER CAP

CAP, fuel tank filler, w/gasket, 23977DB

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

356580R95

TANK, fuel, w/extension, assembly, Composed of

1шт.

356353R1

SUPPORT

EXTENSION

2шт.

23995DC

FILLER CAP

CAP

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

4шт.

356009R94

TANK (NSS)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103026

NUT,3/8"-24, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" (For tractors not equipped with touch-control)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

356008R21

BRACKET

fuel tank support, front (Optional with 356495R1)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

181355

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 9/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

356495R1

BRACKET, fuel tank support, front (Optional with 356008R21)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

356372R94

TANK, gasoline, w/filler cap, 23995DC

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

95-11041

WASHER,3/8"

steel 3/8"

2шт.

6

23995DC

FILLER CAP

CAP, gasoline tank filler, w/gasket, 23988DC

1шт.

7

23977DB

GASKET

gasoline tank filler cap

1шт.

8

29910D

VALVE, shut-off, gasoline tank, w/nut, 29899D (Kerosene or distillate)

1шт.

9

222-503

TUBE NUT,1/2"-20

NUT, coupling, gasoline tank to strainer pipe

2шт.

10

356373R11

PIPE, gasoline tank to strainer w/two nuts, 29899D (Kerosene or distillate)

1шт.

11

222-503

TUBE NUT,1/2"-20

NUT, coupling, strainer or carburetor pipe

2шт.

12

356355R11

PIPE, strainer to carburetor, w/two nuts, 29899D (Gasoline)

1шт.

12

356374R11

PIPE, strainer to carburetor, w/two nuts, 29899D (Kerosene or distillate)

1шт.

13

356353R1

SUPPORT

EXTENSION, fuel tank support bracket, rear (For tractors equipped with touch-control)

2шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

350622R1

BRACKET, fuel tank support angle adapter (For tractors not equipped with touch-control)

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

49601D

BRACKET, fuel tank support, rear (For tractors not equipped with touch-control)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
