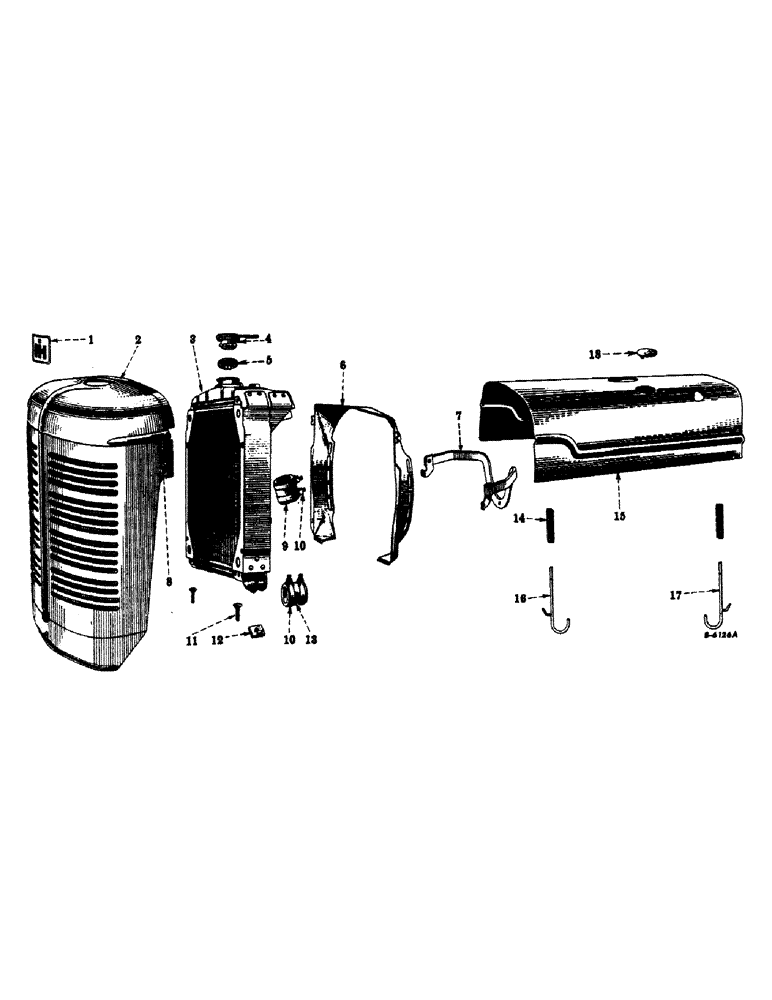

Запчасти Case IH SUPER C (090) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD (12) - CHASSIS

1

352580R1

PRODUCT GRAPHIC

PLATE, name (IH)

1шт.

352581R1

SCREW, slotted-csk-fl-hd., no. 6 x 1/2"

1шт.

2

356364R92

GRILLE, radiator

1шт.

3

356356R94

RADIATOR

(Optional with 358421R93)

1шт.

3

358421R93

RADIATOR (Optional with 356356R94)

1шт.

4

67448DD

CYLINDER END CAP

CAP, radiator filler (Optional with 356710R91)

1шт.

4

356710R91

RADIATOR CAP

CAP, radiator filler (Optional with 67448DD)

1шт.

5

352639R91

GASKET

radiator filler cap (Used with 67448DC)

1шт.

6

351182R2

HOUSING, fan

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

217220

SCREW, cap, hex-hd., 5/16-24NF x 3-3/4"

2шт.

186305

FLOOR

SCREW, cap, hex-hd., 5/16-24NF x 4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

356357R12

BRACE, radiator

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

58141DA

SCREW, radiator grille fastener

3шт.

9

355688R1

HOSE

radiator inlet (2-3/8" I.D. x 2-3/4" long, 3 ply)

1шт.

10

357870R91

CLAMP

radiator hose (Will work for 91406HA)

4шт.

11

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

S, radiator mounting

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-20NF

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

47240D

PAD

radiator

2шт.

13

351964R1

HOSE, radiator outlet (2" I.D. x 3" long, 3 ply)

1шт.

14

48707DA

SPRING

hood clamp hook

4шт.

15

351090R11

HOOD, w/brackets (Gasoline)

1шт.

15

352051R11

HOOD, w/brackets (Kerosene or distillate)

1шт.

16

58146D

CLAMP

hood, L.H. front

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

58147D

CLAMP

hood, R.H., front

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

363669R91

CLAMP

hood, R.H., rear (Kerosene or distillate) (Will work for 60754D)

1шт.

17

351091R91

CLAMP, hood, L.H., rear

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

351092R91

CLAMP

hood, R.H., rear

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

656830R92

COVER, exhaust pipe opening with two rivets, 135234 (For tractors equipped with cotton picker mounting attachment)

1шт.
