(169) - HYDRAULIC SYSTEM, SELECTOR VALVE, FOR TRACTORS EQUIPPED WITH HYDRA-CREEPER

Запчасти Case IH SUPER C (169) - HYDRAULIC SYSTEM, SELECTOR VALVE, FOR TRACTORS EQUIPPED WITH HYDRA-CREEPER (07) - HYDRAULIC SYSTEM

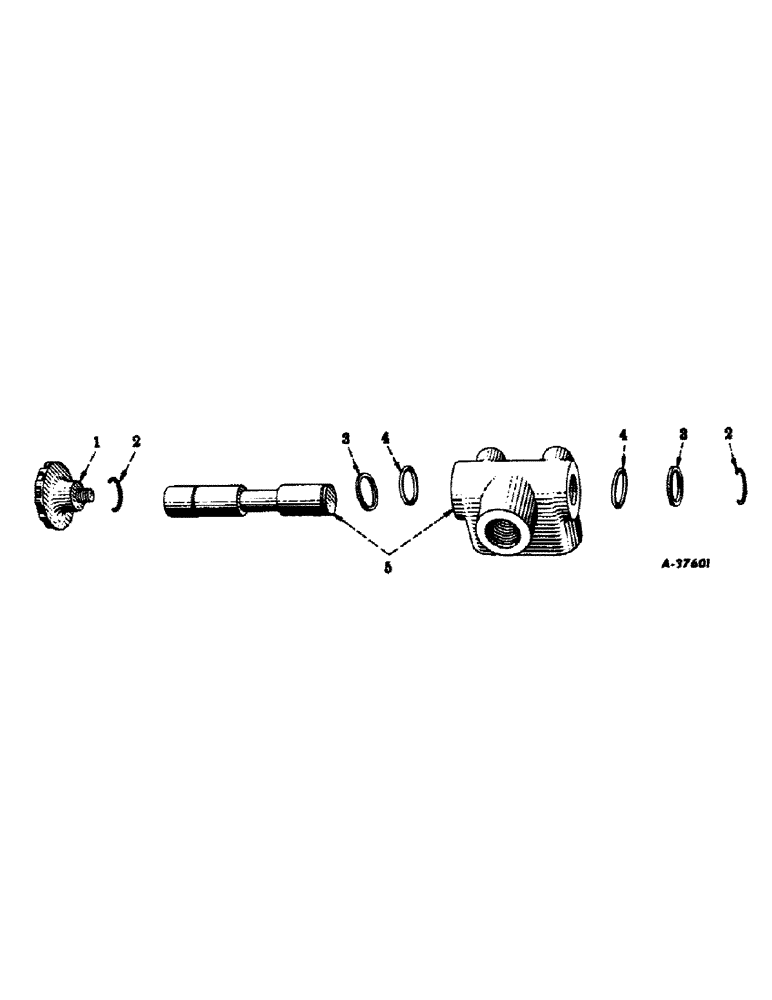

Схема запчастей Case IH SUPER C - (169) - HYDRAULIC SYSTEM, SELECTOR VALVE, FOR TRACTORS EQUIPPED WITH HYDRA-CREEPER (07) - HYDRAULIC SYSTEM
1
1
4
4
5
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

362211R91

VALVE, selector, assembly

1шт.

1

363910R91

KNOB, selector valve

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8"

1шт.

2

363909R1

RING, SNAP

selector valve

2шт.

3

363908R1

WASHER, back-up seal ring

2шт.

4

363264R1

SEAL

RING, seal, selector valve

2шт.

5

363907R91

BODY, selector, w/spool valve

1шт.
