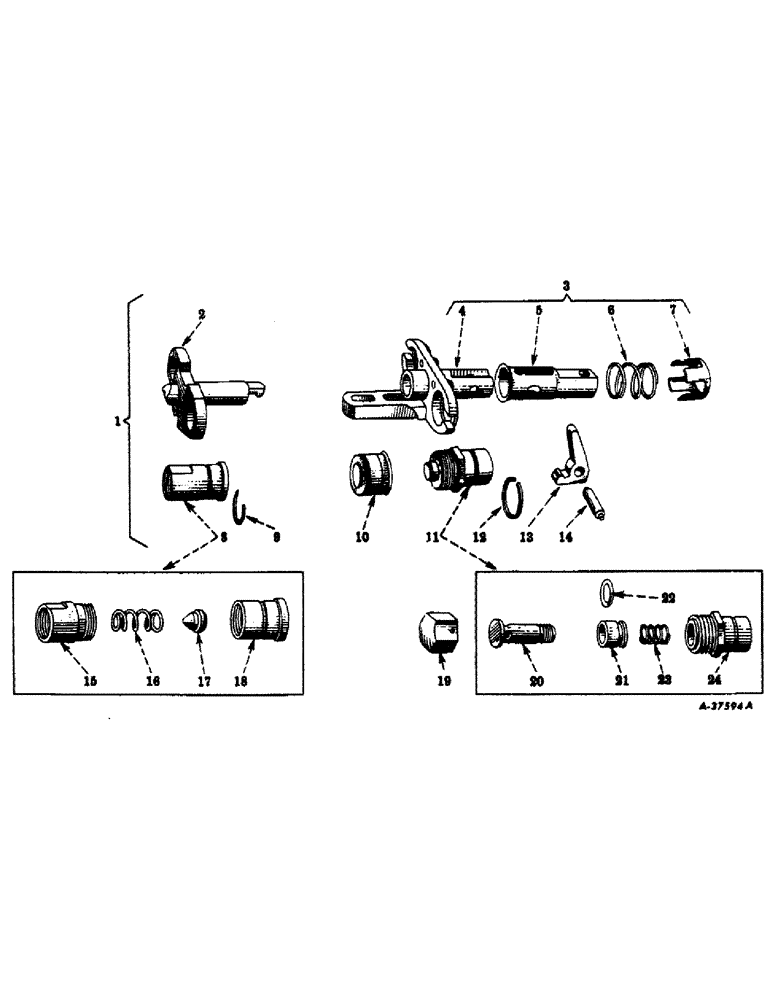

Запчасти Case IH SUPER C (164) - HYDRAULIC SYSTEM, BREAK-AWAY AND SELF SEALING COUPLING (07) - HYDRAULIC SYSTEM

364310R91

COUPLING, break-away, 364311R91, w/coupling 353216R91 (Will work for 353086R91)

1шт.

1

353216R91

COUPLING

break-away, rear section, assembly, Composed of

1шт.

353218R91

COUPLING

2шт.

353220R1

FRAME

1шт.

353228R1

RING

2шт.

2

353220R1

FRAME, break-away, rear (Optional with 357137R91)

1шт.

2

357137R91

FRAME, break-away, rear (Optional with 353220R1)

1шт.

3

364311R91

COUPLING, break-away, front section, assembly (Will work for 353215R91), Composed of

1шт.

353217R92

COUPLING

2шт.

364312R91

FRAME

1шт.

3

364312R91

FRAME, break-away, assembly (Will work for 353219R91), Composed of

1шт.

353223R1

COVER

1шт.

353222R1

DRAWBAR

1шт.

364313R91

FRAME

1шт.

353225R1

LATCH

1шт.

353226R1

PIN

1шт.

353224R1

SPRING

1шт.

4

364313R91

FRAME, break-away, front, w/two pins and two snap rings (Will work for 353221R1)

1шт.

5

353222R1

DRAWBAR, break-away frame (Optional with 357138R91)

1шт.

5

357138R91

DRAWBAR, break-away frame (Optional with 353222R1)

1шт.

6

353224R1

SPRING, break-away frame latch

1шт.

7

353223R1

COVER, break-away frame latch spring

1шт.

8

353218R91

COUPLING

half, break-away, rear, or self-sealing female, assembly, Composed of

1шт.

357129R1

ADAPTER

1шт.

357130R1

BODY

1шт.

357128R1

SPRING

1шт.

357127R91

VALVE

1шт.

9

353228R1

RING, snap, break-away coupling, rear

2шт.

10

355190R3

CAP, dust, break-away, coupling, front section

2шт.

11

353217R92

COUPLING

half, break-away, front, or self-sealing male, assembly, Composed of

1шт.

357131R1

BODY

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

1шт.

364250R91

BUSHING

SLEEVE

1шт.

357135R1

SPRING

1шт.

357132R1

VALVE

1шт.

12

353227R1

RING, snap, break-away coupling, front (Not used with frame with riveted hinged snap rings)

2шт.

13

353225R1

LATCH, break-away frame

1шт.

14

353226R1

PIN, break-away frame latch

1шт.

15

357129R1

ADAPTER, break-away or self-sealing coupling

1шт.

16

357128R1

SPRING

break-away or self-sealing coupling poppet valve

1шт.

17

357127R1

VALVE, poppet, break-away or self-sealing coupling, w/seal

1шт.

18

357130R1

BODY, break-away or self-sealing coupling half rear

1шт.

19

357136R2

EXTRACTOR, break-away or self-sealing coupling tubular valve

1шт.

20

357132R1

VALVE

tubular, break-away or self-sealing coupling

1шт.

21

364250R91

BUSHING

SLEEVE, insert, break-away or self-sealing coupling, w/seal (Will work for 357133R1 and 357134R91)

1шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, break-away or self-sealing coupling tubular valve

1шт.

23

357135R1

SPRING

break-away or self-sealing coupling tubular valve

1шт.

24

357131R1

BODY, front, break-away or self-sealing coupling half

1шт.
