Запчасти Case IH SUPER C (161) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, 2-1/2 X 8 INCHES WITH 3/16 INCH DIAMETER LIMIT STOP VALVE (07) - HYDRAULIC SYSTEM

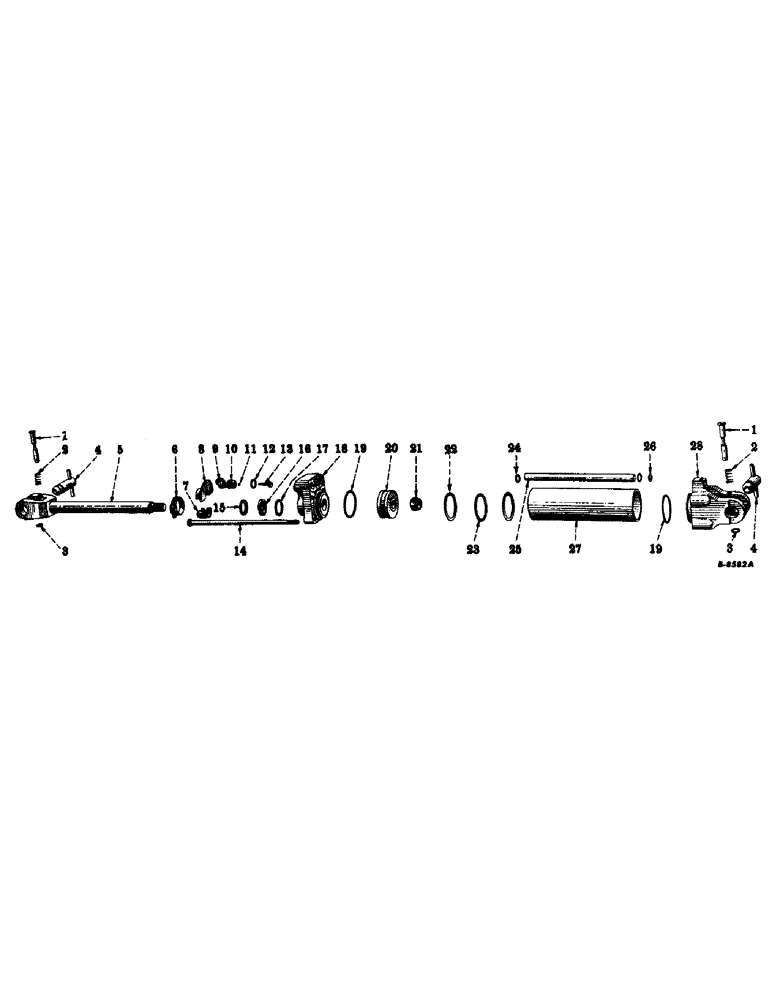

Схема запчастей Case IH SUPER C - (161) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, 2-1/2 X 8 INCHES WITH 3/16 INCH DIAMETER LIMIT STOP VALVE (07) - HYDRAULIC SYSTEM
5
27
2
24
10
20
3
4
16
9
19
11
1
22
15
18
12
2
17
14
7
25
23
28
4
19
1
6
3
21
13
8
26

Артикул

Название

Примечание

Количество

360994R91

CYLINDER

hydraulic (2-1/2 x 8"), assembly (Will work for 356813R93 and 359561R94)

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

cylinder pivot, w/handle

2шт.

5

361005R11

PISTON ROD

ROD, piston, w/yoke

1шт.

6

361085R91

CLAMP

stroke limit collar, w/screw (Optional with 361087R91)

1шт.

6

361087R91

CLAMP, stroke limit collar, w/screw (Optional with 361085R91)

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, cap, hex.-hd., 1/4-20NC x 9/16"

2шт.

10

361007R11

RETAINER

limit stop valve, w/seal ring retainer

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING, seal, limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, limit stop valve retainer

1шт.

13

361006R11

VALVE

limit stop, w/seal (3/16" dia.)

1шт.

14

363880R1

BOLT, hex., reg., 7/16-14NC x 12-1/8" (Will work for 18179R1)

4шт.

15

354049R1

RETAINER

piston rod dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder piston rod

1шт.

18

360998R11

HEAD

hydraulic cylinder, front, w/two plug, 444691, two plug, 444703, and three plug, 50410DA

1шт.

444691

PLUG

automotive pipe, hex-socket, stl., 1/4" (Optional with 362355R1)

2шт.

444703

PLUG,Hex Soc, 1/2"-14

automotive pipe, hex-socket, stl., 1/2" (Optional with 362356R1)

2шт.

50410DA

PLUG

pipe, cylinder head (1/8")

3шт.

362355R1

PLUG

pipe, cylinder head (1/4") (Optional with 444691)

2шт.

362356R1

PLUG, pipe, cylinder head (1/2") (Optional with 444703)

2шт.

19

356818R1

GASKET

RING, seal, hydraulic cylinder

2шт.

20

361000R1

HEAD

piston

1шт.

21

361011R1

NUT

lock, piston rod

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

back-up, piston head (Optional with 362088R1)

2шт.

22

362088R1

WASHER

back-up, piston head (Optional with 361013R1)

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head

1шт.

24

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube

2шт.

25

354834R11

SLEEVE

TUBE, cylinder return, w/two washers

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hydraulic cylinder

1шт.

28

360999R11

HEAD

hydraulic cylinder, rear, w/plug, 50410DA

1шт.

50410DA

PLUG

pipe, cylinder head rear (1/8")

1шт.

363137R91

SEAL KIT

PACKAGE, 2-1/2 x 8" hydraulic cylinder seal ring, Consists of

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING

1шт.

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

2шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

1шт.

356818R1

GASKET

RING

2шт.

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

2шт.
