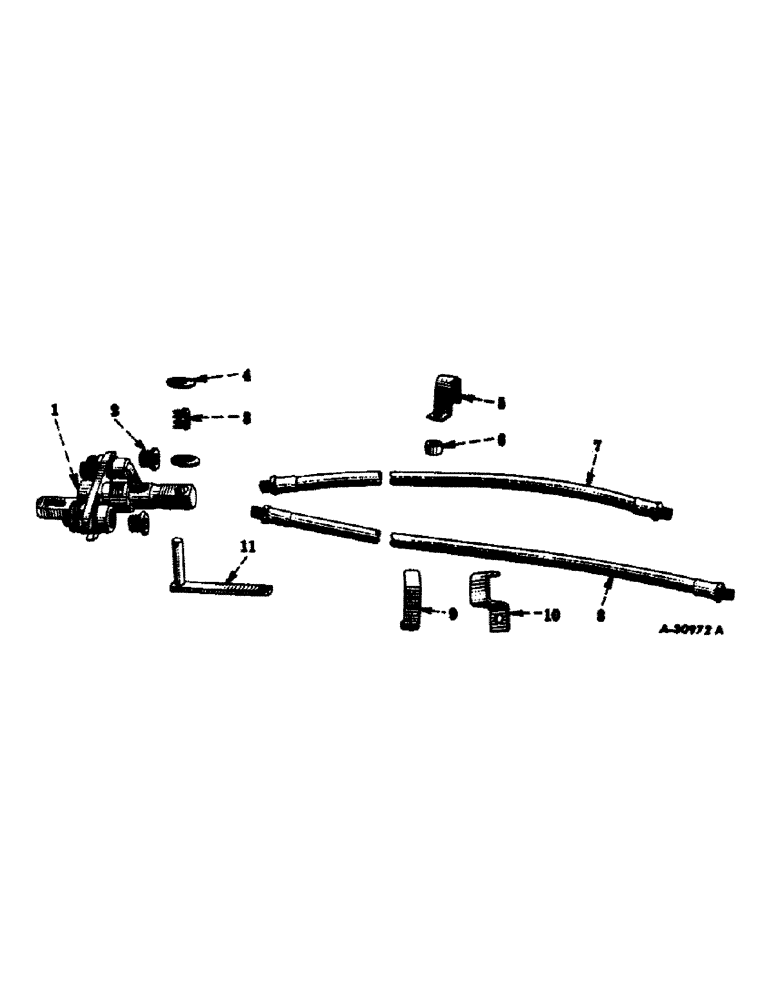

Запчасти Case IH SUPER C (158) - HYD. SYSTEM, REMOTE CONTROL, SPECIAL, BREAK-AWAY COUPLING, FRONT SECTION, BRACKETS, HOSES & CLAMP (07) - HYDRAULIC SYSTEM

1

364311R91

COUPLING, break-away, front section, assembly (For components see list of parts under details of "break-away coupling") (Will work for 353215R91) (A)

1шт.

2

144038

BUSHING, reducing, pipe, 1/2 x 1/4" (A) 1/2" NPT Male x 1/4" NPT Fem

2шт.

3

353213R2

SPRING

break-away coupling bracket (A)

1шт.

4

19849H

FOLLOWS REFERENCE NO. 11

1шт.

5

356835R1

BRACKET, auxiliary control valve hose (A)

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (A)

1шт.

6

356836R1

SPACER, auxiliary control valve hose bracket (A)

1шт.

7

356807R91

HOSE, control valve to break-away coupling, front section, 1/4" I.D. x 54" long (Will work for 357952R91) (A)

1шт.

8

356833R91

HOSE, control valve to break-away coupling, front section, 1/4" I.D. x 57" long (Will work for 357955R91) (A)

1шт.

9

356809R1

CLAMP, auxiliary control valve hose (S/N 100001 to 176522) (A)

1шт.

10

360383R1

CLAMP, auxiliary control valve hose (S/N 176523 up) (A)

1шт.

11

356837R11

BRACKET, break-away coupling (A)

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), (A) 1/8" x 7/8"

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4" (A)

1шт.

19849H

WASHER, plain, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga. (A)

2шт.

355190R3

CAP, dust, break-away coupling front section (Illustrated with break-away coupling) (A)

2шт.

356834R12

GUARD, hose auxiliary control valve (Illustrated with hydra-creeper attachment) (A)

1шт.
