Запчасти Case IH SUPER C (155) - HYDRAULIC SYSTEM, REMOTE CONTROL, SPECIAL, AUXILIARY CONTROL VALVE, LEVER, ROD AND MANIFOLD TUBES (07) - HYDRAULIC SYSTEM

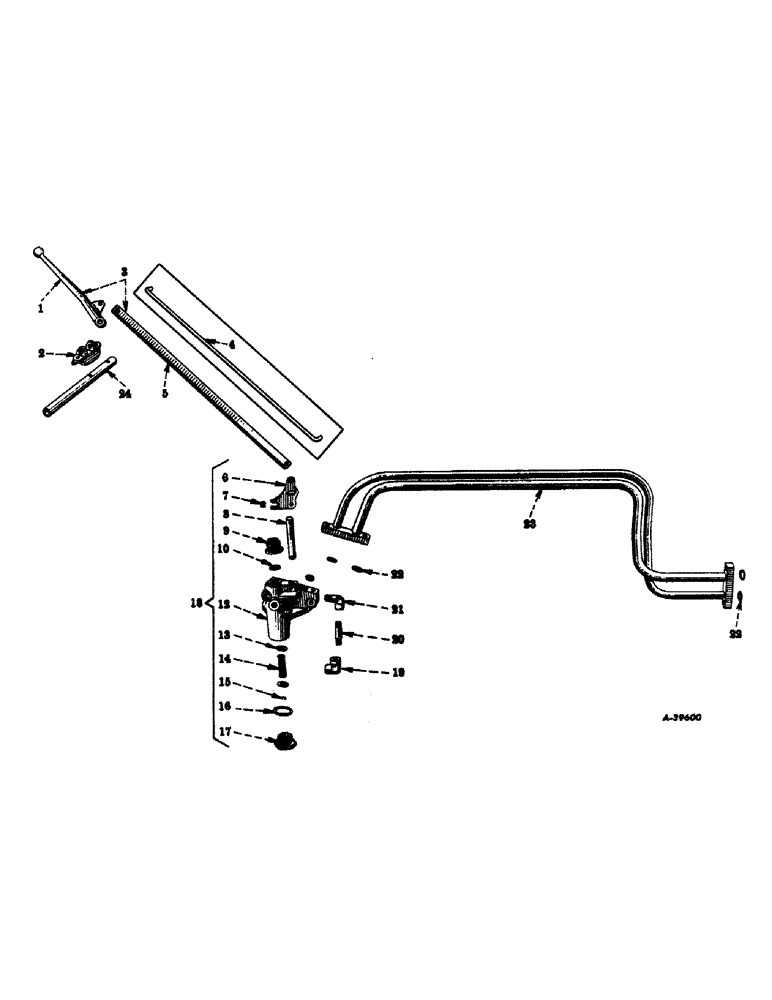

Схема запчастей Case IH SUPER C - (155) - HYDRAULIC SYSTEM, REMOTE CONTROL, SPECIAL, AUXILIARY CONTROL VALVE, LEVER, ROD AND MANIFOLD TUBES (07) - HYDRAULIC SYSTEM
5
6
24
14
17
8
15
16
22
23
19
20
9
1
13
7
2
4
12
3
18
22
21
10

Артикул

Название

Примечание

Количество

1

356830R4

HANDLE, auxiliary control valve operating (A,B)

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, rod end, dld., 3/8 x 1-25/32" (A,B)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A,B) 3/32" x 3/4"

1шт.

2

356831R1

BRACKET, auxiliary control valve lever (A,B)

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

(A,B) Hex, 1/4"-20 x 1 1/2", G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (A, B) 1/4"

2шт.

3

360381R91

LINK, 360379R1, w/handle, 356830R4 and two pins, 1161Y (Will work for 356832R3) (A)

1шт.

These parts are not included in remote control attachments.

1шт.

4

356832R3

ROD, auxiliary control valve (Order 360381R91) (A)

1шт.

These parts are not included in remote control attachments.

1шт.

137130

PIN

cotter, 1/16 x 7/16" (A)

2шт.

These parts are not included in remote control attachments.

1шт.

5

360379R1

CHANNEL

LINK, connecting, auxiliary control valve, remote control (A,B)

1шт.

1161Y

PIN, rod end, dld., 5/16 x 23/32" (A,B)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A,B) 3/32" x 3/4"

2шт.

6

356791R2

LEVER

auxiliary control valve (A,B)

1шт.

7

356793R1

GUIDE, auxiliary control valve lever (A,B)

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, (A,B) 1/4" x 5/8", Slotted

1шт.

8

356800R1

POST

auxiliary control valve lever (A,B)

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, (A,B) 1/4" x 5/8", Slotted

2шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, (A, B) 1/4" x 1 1/8", Slotted

1шт.

9

356790R1

INSULATOR

BOOT, auxiliary control valve (A,B)

1шт.

10

356784R91

SEAL

OIL SEAL, auxiliary control valve (Optional with 361086R91) (A,B)

1шт.

10

361086R91

OIL SEAL

auxiliary control valve (Optional with 356784R91) (A,B)

1шт.

12

356782R21

BODY, auxiliary control valve, assembly (A,B), Composed of

1шт.

356782R2

BODY (NSS)

1шт.

356784R91

SEAL

OIL SEAL

1шт.

444691

PLUG

1шт.

356786R1

PLUG (NSS)

1шт.

361383R1

PLUG (NSS)

1шт.

356783R1

VALVE (NSS)

1шт.

444691

PLUG

pipe automotive, hex., socket, 1/4" (Optional with 362355R1) (A,B)

1шт.

362355R1

PLUG

pipe automotive, hex., socket, 1/4" (Optional with 444691) (A,B)

1шт.

13

356796R1

WASHER

auxiliary control valve (A,B)

2шт.

14

356795R1

SPRING

auxiliary control valve (A,B)

1шт.

15

356797R1

RING, snap, auxiliary control valve (A,B)

1шт.

16

356799R1

GASKET

auxiliary control valve bottom cap (A,B)

1шт.

17

356798R1

CAP, auxiliary control valve bottom (A,B)

1шт.

18

356788R91

VALVE, auxiliary control valve, assembly (Reference nos. 6 to 17 inclusive) (A,B), Composed of

1шт.

356782R21

BODY

1шт.

356790R1

INSULATOR

BOOT

1шт.

356798R1

CAP

1шт.

356799R1

GASKET

1шт.

356793R1

GUIDE

1шт.

356791R2

LEVER

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, 1/4" x 5/8", Slotted

3шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

356800R1

POST

1шт.

356797R1

RING

1шт.

356795R1

SPRING

1шт.

356796R1

WASHER

2шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16NC x 1-7/8" (A,B)

1шт.

19

444504

ELBOW, automotive pipe, brs., 90 degrees, 1/4" (Will work for 137538 and 144127) (Optional with 454085) (A)

1шт.

Not used on tractors equipped with fast-hitch with tubes and fittings.

1шт.

19

454085

ELBOW, automotive pipe, cd-pltd., 90 degrees, x 1/4" (Will work for 137538 and 144127) (Optional with 444504) (A)

1шт.

Not used on tractors equipped with fast-hitch with tubes and fittings.

1шт.

20

192053

NIPPLE, pipe, 1/4 x 2" (A,B)

1шт.

Not used on tractors equipped with fast-hitch with tubes and fittings.

1шт.

21

444480

ELBOW

street, automotive pipe, brs., 90 degrees x 1/4" (Will work for 120499 and 144112) (Optional with 454109) (A,B)

1шт.

21

454109

ELBOW

street, automotive pipe, cd-pltd., 90 degrees x 1/4" (Will work for 120499 and 144112) (Optional with 444480) (A,B)

1шт.

22

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, hydraulic lift manifold flange (A,B)

4шт.

23

356779R91

MANIFOLD

TUBES, manifold (A,B)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (A,B)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A,B) 3/8"

2шт.

24

657731R1

PIPE, basket (Auxiliary) control valve lever support (For tractors equipped with cotton picker mounting attachment) (A,B)

1шт.

356803R1

GASKET

auxiliary control valve (A,B)

1шт.

356803R1

GASKET

auxiliary control valve plate (Not required for Super "C") (A,B)

1шт.

357209R1

PLATE, auxiliary control valve (Not required for Super "C") (A,B)

1шт.

357874R2

SCREW, cap, auxiliary control valve (A,B)

2шт.

Выбрано товаров: 69
