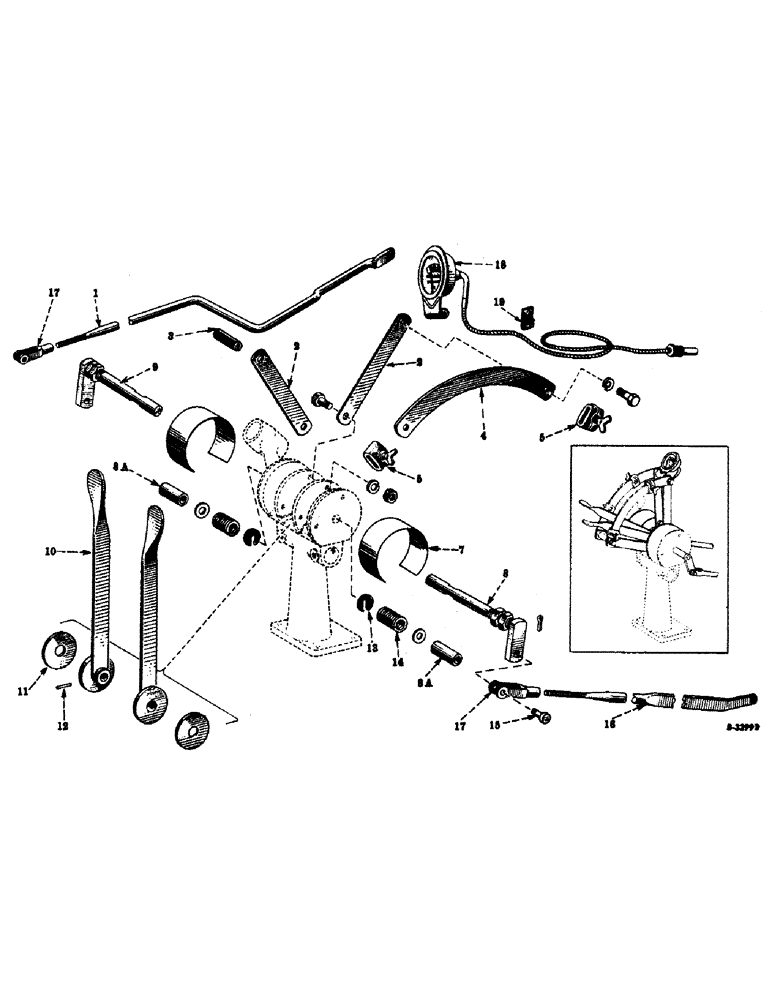

Запчасти Case IH SUPER C (153) - HYDRAULIC SYSTEM, TOUCH-CONTROL LEVERS, SHAFTS, ARMS AND RODS (07) - HYDRAULIC SYSTEM

1

354375R2

ROD, touch-control, L.H.

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

2

350711R1

ARM, touch-control quadrant support

4шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/4"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

4шт.

3

354138R1

SPACER

touch-control quadrant support arm

1шт.

4

350712R1

SECTOR

QUADRANT, touch-control

2шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

2шт.

181325

BOLT,Hex, 1/4" - 28 x 2 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

350717R91

INDICATOR

STOP INDICATOR, touch-control w/thumb screw

4шт.

7

351403R1

COVER, touch-control and steering shaft bracket support

2шт.

8

354744R91

SHAFT, hand control lever, R.H.

1шт.

Q1510

WASHER

plain, 15/32" I.D. x 13/16" O.D. x no. 14 ga.

1шт.

8a

354747R1

SPACER, hand control lever shaft

2шт.

9

354743R91

SHAFT, hand control lever, L.H.

1шт.

Q1510

WASHER

plain, 15/32" I.D. x 13/16" O.D. x no. 14 ga.

1шт.

10

350719R13

LEVER

hand control

2шт.

11

63090D

WASHER,13.1mm ID x 41.27mm OD x 3.97mm Thk

DISC, friction, hand control lever

2шт.

12

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, , hand control lever (Will work for 142493) 5/32" x 3/4", Slotted

2шт.

13

351128R1

WASHER

RETAINER, control lever shaft spring

2шт.

14

354746R1

SPRING

friction, hand control lever

2шт.

15

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, end, 1/4 x 51/64"

2шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

16

354373R2

ROD, touch-control, R.H.

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

17

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE, touch-control rod

2шт.

18

356466R91

INDICATOR

heat, touch-control (Optional with 355841R91)

1шт.

18

355841R91

GAUGE

INDICATOR, heat, touch-control (Optional with 356466R91)

1шт.

19

61813D

CLIP

cable, heat indicator (Will work for 355846R1) (Battery box hold down bolt)

2шт.

355874R1

CLIP, cable, heat indicator (S/N, Serial Range: 100001-176522)

2шт.

359526R1

CLIP, cable, heat indicator (S/N 176523 up)

1шт.
