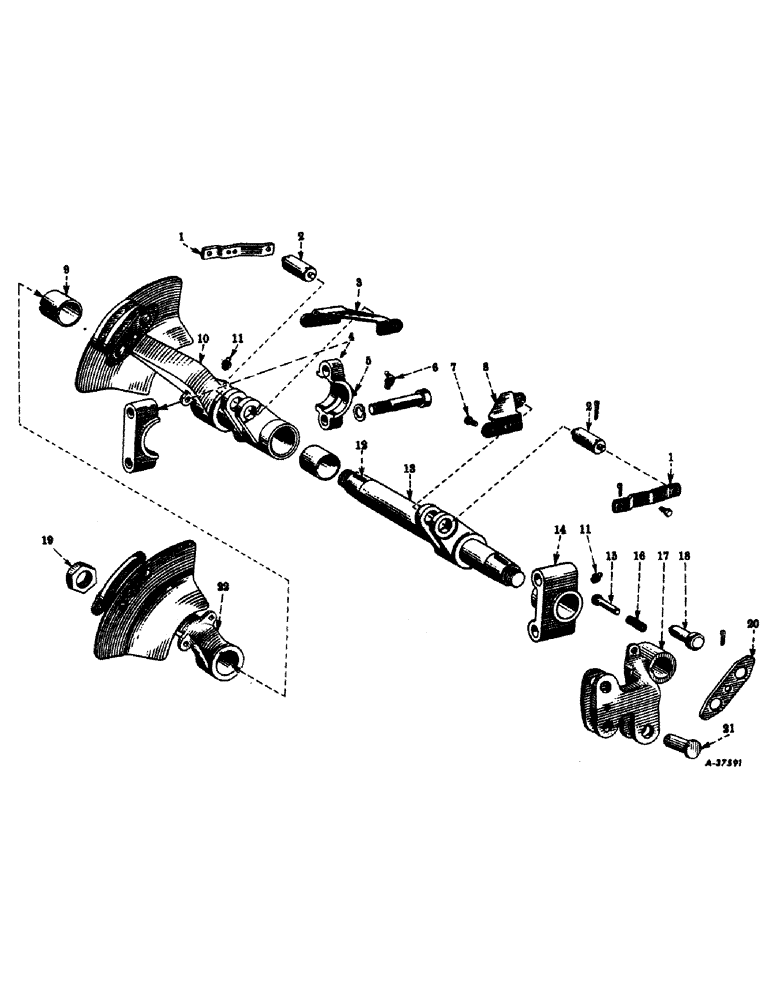

Запчасти Case IH SUPER C (149) - HYDRAULIC SYSTEM, TOUCH-CONTROL ROCKSHAFT, 3-ARM ROCKSHAFT ARMS, BEARINGS, OPERATING LINK & BRACE (07) - HYDRAULIC SYSTEM

1

350677R2

LINK, operating, control valve

2шт.

110501

SCREW

slotted-rd-hd., no. 24NC x 5/8"

4шт.

110633

NUT,#10-24

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

2

350662R1

PIN

connecting rod

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

3

350678R1

BRACE, control valve operating link, L.H.

1шт.

4

350914R91

BEARING, rockshaft support, L.H. (Order 359567R92) (S/N, Serial Range: 100001-171175)

1шт.

4

350914R93

BEARING

rockshaft support, L.H. (S/N 171176 up)

1шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

SCREW, cap, hex-hd., 5/8-11NC x 3-1/2" (S/N, Serial Range: 100001-171175)

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 3-3/4" (S/N 171176 up)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (Optional with 109460) (Used in bearing and cap with threaded fitting hole)

2шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (Optional with 109350) (Used in bearing and cap with threaded fitting hole)

2шт.

6

443571

FITTING

lubrication, drive type, 67-1/2 degree elbow, 3/16" (Optional with 12309R1) (Used in bearing and cap with plain fitting hole)

2шт.

6

12309

HARNESS

FITTING, lubrication, drive type, 67-1/2 degree elbow, 3/16" (Optional with 443571) (Used in bearing and cap with plain fitting hole)

2шт.

7

350680R2

PIN

control valve operating link

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

8

350679R1

BRACE

control valve operating link, R.H.

1шт.

9

350693R1

BUSHING

rockshaft inner arm

2шт.

10

350918R21

ARM, rockshaft, inner, L.H. w/two bushings, 350693R1

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, drive type, straight, 3/16" (Optional with 15239E) (Used in arm with plain fitting hole)

1шт.

11

15239E

FITTING

lubrication, drive type, straight, 3/16" (Optional with 443566) (Used in arm with plain fitting hole)

1шт.

12

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff 1/4 x 2-1/8"

2шт.

13

350913R2

ROCKSHAFT

1шт.

14

350917R1

BEARING, rockshaft support, R.H. (Order 359567R92) (S/N, Serial Range: 100001-171175)

1шт.

14

350917R21

BEARING, rockshaft support, R.H. (S/N 17116 up)

1шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

SCREW, cap, hex-hd., 5/8-11NC x 3-1/2" (S/N, Serial Range: 100001-171175)

2шт.

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 5/8-11NC x 3-3/4" (S/N 171176 up)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, rockshaft clevis pin lock

3шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

3шт.

16

350144R1

VALVE SPRING

SPRING, rockshaft clevis pin lock pin

3шт.

17

359552R1

ARM, rockshaft, R.H. (Will work for 350919R1)

1шт.

18

350142R1

KEY

PIN, rockshaft clevis

6шт.

19

15347D

NUT, rockshaft (Will work for 115781)

2шт.

20

350188R21

LOCK, rockshaft clevis pin

3шт.

21

359554R1

PIN

rockshaft arm clevis

1шт.

PO18500A

PIN

cotter, quick-attachable

1шт.

22

350919R21

ARM

rockshaft, outer, L.H.

1шт.

359567R92

BEARING

PACKAGE, service, rockshaft support (Consists of bearing, 350914R92, bearing, 350917R3 and four screw, 271567) (S/N, Serial Range: 100001-171175)

1шт.

359558R92

ROCKSHAFT, touch-control, assembly (Will work for 350688R91), Composed of

1шт.

350918R21

ARM

1шт.

350919R21

ARM

1шт.

359552R1

ARM

1шт.

350914R93

BEARING

1шт.

350917R3

BEARING

1шт.

443571

FITTING

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING

1шт.

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY

2шт.

350188R2

BAR

LOCK

3шт.

15347D

NUT

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

3шт.

PO18500A

PIN

1шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN

3шт.

350142R1

KEY

PIN

6шт.

359554R1

PIN

1шт.

350913R2

ROCKSHAFT

1шт.

350144R1

VALVE SPRING

SPRING

3шт.
