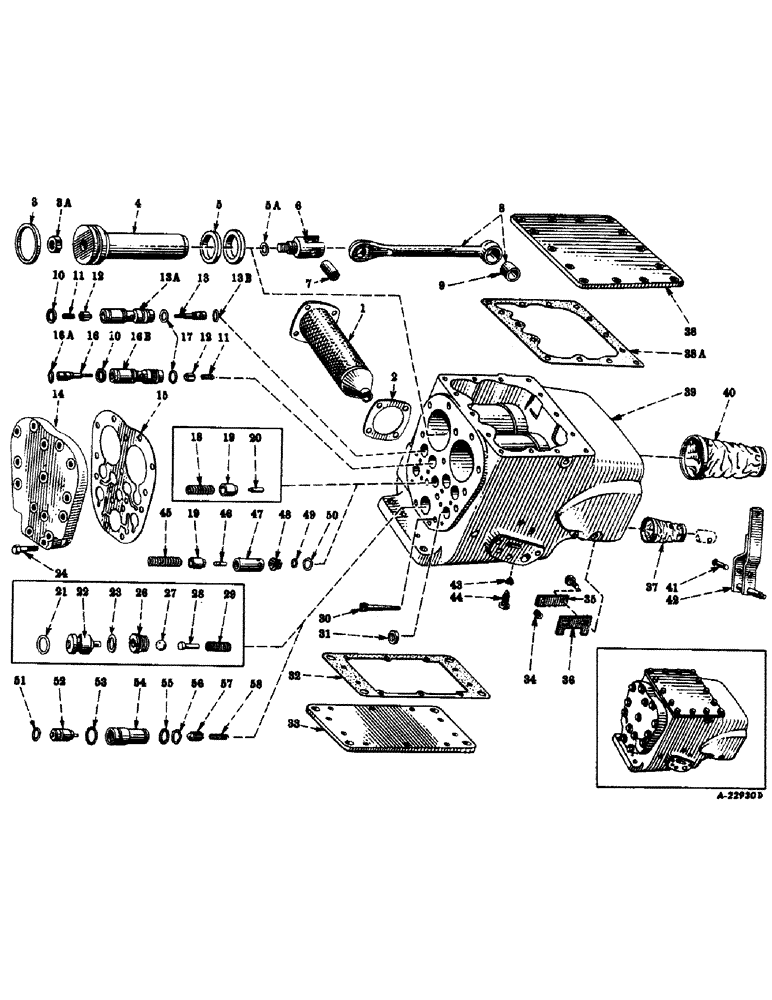

Запчасти Case IH SUPER C (140) - HYDRAULIC SYSTEM, CYLINDER BLOCK & HEAD, PISTONS, RODS, REGULATOR AND CHECK VALVES & CONNECTIONS (07) - HYDRAULIC SYSTEM

354465R98

ATTACHMENT, Farmall touch-control

1шт.

359560R94

TOUCH-CONTROL, assembly, Composed of

1шт.

354351R99

BLOCK

1шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW

4шт.

359558R92

ROCKSHAFT

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

1

355844R91

SCREEN

STRAINER, cylinder block oil

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

350651R91

GASKET, cylinder block oil strainer

1шт.

3

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL, piston head

2шт.

3a

354513R1

NUT, connecting rod yoke, w/washer, 103334 (Will work for 145013)

2шт.

103334

LOCK WASHER

WASHER, lock, 5/8"

2шт.

4

355348R91

PISTON (Optional with 357372R91)

2шт.

4

357372R91

PISTON

(Optional with 355348R91)

2шт.

5

350658R1

O-RING

SEAL, piston sleeve

4шт.

5a

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, connecting rod yoke

2шт.

6

355353R1

YOKE

connecting rod

2шт.

7

350661R1

PIN, connecting rod yoke

2шт.

8

350659R11

ROD

connecting, w/bushing, 350019R1

2шт.

9

350019R1

BUSHING

connecting rod

2шт.

10

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve bushing, center

4шт.

11

350668R1

VALVE SPRING

SPRING, check valve

4шт.

12

354057R2

VALVE

check (Will work for 350664R1)

4шт.

13

353953R1

SHAFT

ACTUATOR, check valve

2шт.

13a

355369R1

VALVE

BUSHING, check valve, rear (Will work for 353740R1)

2шт.

13b

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, check valve actuator (Will work for 352672R1)

2шт.

14

354353R11

HEAD, cylinder, w/plug, 50474DA

1шт.

50474DA

PLUG

pipe, cylinder head

1шт.

15

354354R3

CYLINDER HEAD GASKET

cylinder head

1шт.

16

353953R1

SHAFT

ACTUATOR, check valve

2шт.

16a

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, check valve actuator (Will work for 352672R1)

2шт.

16b

355368R1

VALVE

BUSHING, check valve, front (Will work for 353738R1)

2шт.

17

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve, bushing, center

4шт.

18

15258E

SPRING

safety valve (Same as 350081R1) (S/N, Serial Range: 100001-191866)

1шт.

19

351342R1

SLEEVE, safety valve (Will work for 351868R1)

1шт.

20

351867R1

PISTON

safety valve (S/N, Serial Range: 100001-191866)

1шт.

21

352024R1

SEAL

RING, seal, pressure regulator valve piston (S/N, Serial Range: 100001-191866)

1шт.

22

352940R21

PISTON ASSY.

PISTON, pressure regulator valve (S/N, Serial Range: 100001-191866)

1шт.

23

352024R1

SEAL

RING, seal, pressure regulator valve seat (S/N, Serial Range: 100001-191866)

1шт.

24

354388R1

BOLT (SPREADER),Hex, 7/16" - 14 x 1 3/4", Gr 8

SCREW, cap, cylinder head

14шт.

26

352025R1

FITTING

SEAT, pressure regulator valve (S/N, Serial Range: 100001-191866)

1шт.

27

16018R1

BALL

chrome stl., 9/16" dia. (Pressure regulator valve) (S/N, Serial Range: 100001-191866)

1шт.

28

350084R2

SEAT

RIDER, pressure regulator valve ball (S/N, Serial Range: 100001-191866)

1шт.

29

352026R2

SPRING

pressure regulator valve ball rider (S/N, Serial Range: 100001-191866)

1шт.

30

353853R31

PLUG AND SCREEN, pressure regulator valve orifice (Will work for 351156R1) (Optional with 355372R92)

1шт.

30

355372R92

PLUG AND SCREEN, pressure regulator valve orifice (Will work for 351156R1) (Optional with 353853R31)

1шт.

31

350672R1

O-RING,0.482" ID x 0.153" Width

RING, seal, control valve

2шт.

32

350646R1

GASKET

cylinder block cover

1шт.

33

350645R1

COVER, cylinder block

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

34

50410DA

PLUG

cylinder block

16шт.

35

354360R1

BLOCK, tapping, control valve operating lever stop (Not used with 355349R21)

2шт.

36

354674R1

STOP

control valve operating lever (Not used with 355349R21)

2шт.

191244

SCREW,5/16" - 24 x 7/8"

cap, hex-socket-hd., 5/16-24NF x 7/8"

4шт.

37

351753R3

BOOT

control valve

2шт.

68251D

WIRE, lkg., no. 18 ga. x 4" long

2шт.

351812R1

WIRE, lkg., no. 18 ga. x 6-1/2" long

2шт.

38

357637R1

COVER, hydraulic cylinder block top w/cks. holes

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

machine, slotted-fl-hd., 5/16-18NC x 3/4"

14шт.

38

355351R1

COVER, hydraulic, cylinder block top (w/plain holes)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

38a

355352R1

GASKET

hydraulic cylinder block top cover

1шт.

39

357646R96

BLOCK, cylinder, assembly (Will work for 354352R21) (S/N 100001 to 138891), Composed of

1шт.

362451R92

BLOCK

1шт.

360474R1

BUSHING

1шт.

360475R1

BUSHING

1шт.

360725R1

VALVE BODY

BUSHING

1шт.

357637R1

COVER

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

355352R1

GASKET

1шт.

360724R11

PISTON ASSY.

PISTON

1шт.

361341R3

PISTON ASSY.

PISTON

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

14шт.

360476R1

VALVE SPRING

SPRING

1шт.

360727R1

SPRING WASHER

SPRING

1шт.

360728R1

VALVE SPRING

SPRING

1шт.

361340R2

VALVE SPRING

SPRING

1шт.

360726R1

LOCK VALVE

VALVE

1шт.

39

360633R93

BLOCK, cylinder, assembly (Will work for 355349R21 and 357657R31) (S/N 138892 to 191866), Composed of

1шт.

362451R92

BLOCK

1шт.

360474R1

BUSHING

1шт.

360475R1

BUSHING

1шт.

360725R1

VALVE BODY

BUSHING

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

360724R11

PISTON ASSY.

PISTON

1шт.

361341R3

PISTON ASSY.

PISTON

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

360476R1

VALVE SPRING

SPRING

1шт.

360727R1

SPRING WASHER

SPRING

1шт.

360728R1

VALVE SPRING

SPRING

1шт.

361340R2

VALVE SPRING

SPRING

1шт.

360726R1

LOCK VALVE

VALVE

1шт.

39

362451R91

BLOCK, cylinder, assembly (S/N 191867 up), Composed of

1шт.

357657R5

BLOCK (NSS)

1шт.

3405H

GASKET

1шт.

50410DA

PLUG

18шт.

172592

SUPPORT

1шт.

359875R1

PLUG

1шт.

103867

PLUG

1шт.

350672R1

O-RING,0.482" ID x 0.153" Width

RING

2шт.

354269R1

SIEVE

SCREEN

2шт.

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW

2шт.

354264R91

VALVE

2шт.

354357R1

VALVE (NSS)

2шт.

39

354351R99

BLOCK, cylinder, assembly, Composed of reference number 1 to 58 inclusive, also

1шт.

350678R1

BRACE

1шт.

350679R1

BRACE

1шт.

350677R2

LINK

2шт.

110633

NUT,#10-24

4шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

350662R1

PIN

2шт.

350680R2

PIN

2шт.

355857R1

PLUG

1шт.

110501

SCREW

4шт.

355848R1

WASHER

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

3405H

GASKET

filler plug

1шт.

63556R1

PLUG

expansion, 2" (See note 1)

1шт.

103867

PLUG

pipe, sq-hd., C.I., 3/8" (2 used with block, 367657R4) (Optional with 103879)

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (Optional with 103867)

1шт.

217-442

PLUG,3/4" - 14

pipe, sq-hd., C.I., 3/4"

1шт.

50410DA

PLUG

control valve

2шт.

359875R1

PLUG

filler (Will work for 110279H and 356905R1)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

4шт.

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set, hex-socket, 1/4-20NC x 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (S/N 100001 to 171175) 1/2"

4шт.

40

351754R3

BOOT

piston sleeve

2шт.

19526D

WIRE, lkg., no. 18 ga. x 10" long

2шт.

68251D

WIRE, lkg., no. 18 ga. x 4" long

2шт.

41

354358R1

PIN

control valve

2шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

42

354366R92

LEVER

AND PIN, control valve operating

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

43

354269R1

SIEVE

SCREEN, relief valve

2шт.

44

354264R91

VALVE

relief, w/plug, poppet, and spring

2шт.

45

361340R2

VALVE SPRING

SPRING, safety valve

1шт.

46

361341R3

PISTON ASSY.

PISTON, safety valve (S/N 191867 up)

1шт.

47

360474R1

BUSHING

outer, safety valve (S/N 191867 up)

1шт.

48

360475R1

BUSHING

inner, safety valve (S/N 191867 up)

1шт.

49

355966R1

O-RING,0.424" ID x 0.103" Width

RING, seal, safety valve inner bushing (S/N 191867 up)

1шт.

50

360476R1

VALVE SPRING

SPRING, tension, safety valve bushing (S/N 191867 up)

1шт.

51

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, pressure regulator valve piston (S/N 191867 up)

1шт.

52

360724R11

PISTON ASSY.

PISTON, pressure regulator valve, w/retainer, rod and spring (S/N 191867 up)

1шт.

53

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, rear, pressure regulator valve bushing (S/N 191867 up)

1шт.

54

360725R1

VALVE BODY

BUSHING, pressure regulator valve (S/N 191867 up)

1шт.

55

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING, seal, front, pressure regulator valve bushing (S/N 191867 up)

1шт.

56

360727R1

SPRING WASHER

SPRING, tension, pressure regulator valve (S/N 191867 up)

1шт.

57

360726R1

LOCK VALVE

VALVE, check, pressure regulator (S/N 191867 up)

1шт.

58

360728R1

VALVE SPRING

SPRING, pressure regulator check valve (S/N 191867 up)

1шт.

350727R1

CLIP, governor control rod (Illustrated with governor controls)

1шт.

355382R1

FLUID, tractor touch-control (Quart can)

1шт.

359450R1

FLUID

tractor touch-control (Gallon can)

1шт.

360376R1

CLIP, latch hook hold-down (Tractors equipped with fast-hitch)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

360377R1

CLIP, latch (Tractors equipped with fast-hitch)

1шт.

360378R1

HOOK, latch (Tractors equipped with fast-hitch) (Illustrated with tools)

1шт.

354007R96

GASKET KIT

PACKAGE, service, cylinder block, gasket and seal ring, Consists of

1шт.

350646R1

GASKET

1шт.

350651R1

GASKET

1шт.

350706R2

GASKET

1шт.

353771R2

GASKET

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

355352R1

GASKET

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

2шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

355967R1

O-RING,0.364" ID x 0.003" Width

RING

4шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING

4шт.

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING

2шт.

350658R1

O-RING

RING

4шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

10шт.

350672R1

O-RING,0.482" ID x 0.153" Width

RING

2шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING

2шт.

355857R1

PLUG, oil strainer flange (See note 2)

1шт.

355848R1

WASHER, oil strainer flange boss (See note 2)

1шт.
