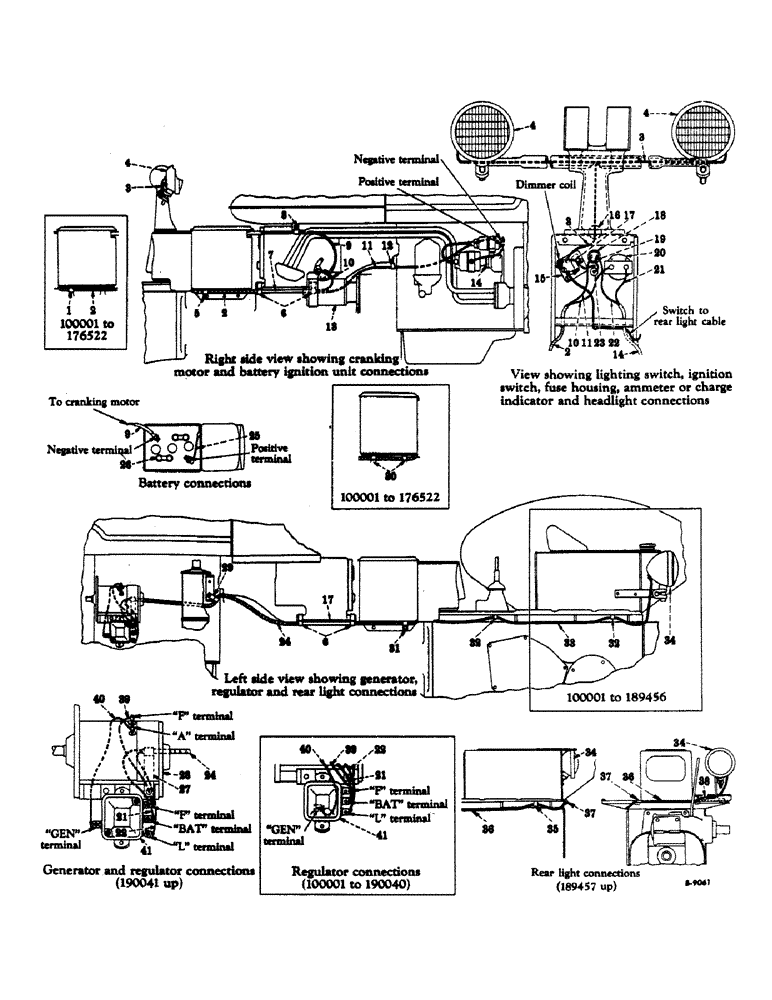

Запчасти Case IH SUPER C (FOR) - ELECTRICAL SYSTEM, LIGHTING AND STARTING SYSTEM, 6 VOLT, FOR TRACTORS EQUIPPED WITH BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

60938D

CLIP, cable harness (On battery box rear hold-down bolt) (S/N, Serial Range: 100001-176522)

1шт.

2

358109R92

HARNESS

CABLE (Ignition and lighting) (Will work for 351915R91)

1шт.

3

351917R92

CABLE

HARNESS, headlight

1шт.

4

45640DB

LAMP

HEADLIGHT, conventional assembly (For components see list of parts under details of "headlights or rear light") (S/N, Serial Range: 100001-159454)

2шт.

4

357884R93

HEADLIGHT, sealed beam assembly (For components see list of parts under details of "headlights or rear light") (S/N 159455 up)

2шт.

5

359526R1

CLIP, cable harness (On battery box rear mounting bolt) (S/N 176523 up)

1шт.

6

350741R1

CLIP, cable harness (On touch-control cylinder block mounting bolt)

4шт.

7

351911R1

SHIELD, cable harness

2шт.

8

351914R1

CLIP

battery cable (On fuel tank rear mounting bolt)

1шт.

9

350735R91

CABLE

battery to cranking motor w/bolt, 356062R91

1шт.

356062R91

BOLT

terminal w/nut, sleeve and washer

1шт.

10

CABLE, ammeter or charge indicator to cranking motor (Order 358109R92)

1шт.

11

CABLE, ignition switch to coil (Order 358109R92)

1шт.

12

351871R1

CLIP, battery ignition switch cable (On clutch housing bolt)

1шт.

13

355794R91

MOTOR, cranking assembly (For components see list of parts under details of "cranking motor")

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

357934R91

UNIT, battery ignition assembly (Will work for 354899R91) (For components see list of parts under details of "battery ignition unit")

1шт.

15

363130R91

SWITCH

lighting, assembly (For components see list of parts under details of "lighting switch")

1шт.

16

63323D

GROMMET, instrument panel (S/N 188147 up)

1шт.

17

CABLE, fuse housing to lighting switch (Order 354232R91)

1шт.

18

62801D

SWITCH, battery ignition assembly (For components see list of parts under details of "battery ignition switch")

1шт.

19

CABLE, fuse housing to ignition switch (Order 354232R91)

1шт.

20

42383DC

AMMETER

w/clamp, six nuts and six washers (Optional with 354473R91)

1шт.

20

354473R91

AMMETER

w/clamp, six nuts and six washers (Optional with 42383DC)

1шт.

20

360053R91

INDICATOR

charge w/clamp, six nuts and six washers (Used only on tractors equipped with voltage regulator)

1шт.

21

CABLE, regulator "BAT" terminal to ammeter or charge indicator (Gray) (Order 354243R92)

1шт.

22

CABLE, regulator "L" terminal to ignition switch (Light green) (Order 354243R91)

1шт.

23

354232R91

BOX

HOUSING, fuse, w/two cables, knob, 356445R91, nut and washer (Will work for 354233R91(

1шт.

24

354243R92

HARNESS

cable w/two cables

1шт.

25

350736R91

CABLE

battery to ground w/bolt, 356062R91

1шт.

356062R91

BOLT

terminal w/nut, sleeve and washer

1шт.

26

355196R93

BATTERY (See note)

1шт.

26

354210R91

BATTERY (See note)

1шт.

27

351913R1

CLIP, cable harness (On generator bracket rear bolt)

1шт.

28

354237R91

GENERATOR, assembly (For components see list of parts under details of "generator")

1шт.

29

350742R1

CLIP, cable harness (On lower air cleaner mounting bolt)

1шт.

30

355847R1

SUPPORT, cable harness (On battery box hold-down-bolt) (For tractors equipped with touch-control) (S/N, Serial Range: 100001-176522)

2шт.

31

359526R1

CLIP, cable harness (On battery box mounting bolt) (For tractors equipped with touch-control) (S/N 176523 up)

1шт.

32

60938D

CLIP, rear light cable (On undersize of rear frame cover) (S/N, Serial Range: 100001-189456)

2шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16NC x 9/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

358118R91

CABLE

(Switch to rear light) (Will work for 30710DX or 30693DX) (S/N, Serial Range: 100001-189456)

1шт.

34

45640DB

LAMP

LIGHT, rear, conventional, assembly (For components see list of parts under details of "headlight or rear light") (S/N, Serial Range: 100001-159454)

1шт.

"headlight or rear light") (S/N 159455 up)

1шт.

34

357884R93

LIGHT, rear, sealed beam, assembly (For components see list of parts under details of

1шт.

35

61813D

CLIP

rear light cable (On undersize of rear frame cover) (S/N 189457 up)

2шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16NC x 9/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

358111R92

CABLE

(Switch to rear light) (S/N 189457 up)

1шт.

37

61813D

CLIP

rear light cable (On rear frame cover rear L.H. mounting bolt) (S/N 189457 up)

1шт.

38

61813D

CLIP

rear light cable (On rear frame cover) (S/N 189457 up)

1шт.

103026

NUT,3/8"-24, G5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

358116R92

CABLE, generator "F" terminal to regulator "F" terminal (Will work for 354230R11)

1шт.

40

358112R92

CABLE

generator "A" terminal to regulator "GEN" terminal (Will work for 354229R11 or 358115R91)

1шт.

41

360898R91

REGULATOR

voltage assembly (Will work for 354234R91) (For components see list of parts under details of "voltage regulator")

1шт.

106653

FUSE

type AGC, 20 amp.

1шт.
