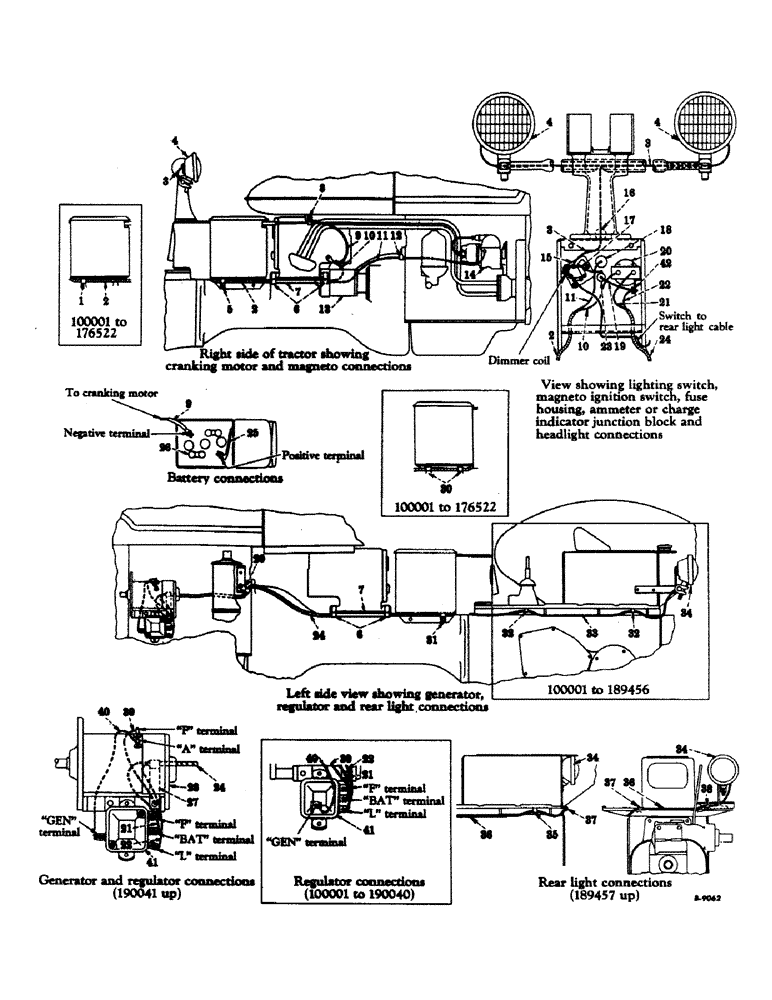

Запчасти Case IH SUPER C (082) - ELECTRICAL SYSTEM, LIGHTING AND STARTING SYSTEM, 6 VOLT, FOR TRACTORS EQUIPPED WITH MAGNETO IGNITION (06) - ELECTRICAL SYSTEMS

351460R96

SPARE PART ATTACHMENT, lighting and starting (Consists of parts listed in this unit, except as noted)

1шт.

1

60938D

SPARE PART CLIP, cable harness (On battery box rear hold-down bolt) (S/N, Serial Range: 100001-176522)

1шт.

2

358109R92

HARNESS

CABLE (Ignition and lighting) (Will work for 351915R91)

1шт.

3

351917R92

CABLE

HARNESS, headlight

1шт.

4

45640DB

LAMP

HEADLIGHT, conventional assembly (For components see list of parts under details of "headlights or rear light") (S/N, Serial Range: 100001-159454)

2шт.

These parts are not included in lighting and starting attachment.

1шт.

4

357884R93

SPARE PART HEADLIGHT, sealed beam assembly (For components see list of parts under details of "headlights or rear light") (S/N 159455 up)

2шт.

5

359526R1

SPARE PART CLIP, cable harness (On battery box rear mounting bolt) (S/N 176523 up)

1шт.

6

350741R1

SPARE PART CLIP, cable harness (On touch-control cylinder block mounting bolt)

4шт.

7

351911R1

SPARE PART SHIELD, cable harness

2шт.

8

351914R1

CLIP

CLIP, battery cable (On fuel tank rear mounting bolt)

1шт.

9

350735R91

CABLE

CABLE, battery to cranking motor w/bolt, 356062R91

1шт.

356062R91

BOLT

BOLT, terminal w/nut, sleeve and washer

1шт.

10

CABLE, ammeter or charge indicator to cranking motor (Order 358109R92)

1шт.

11

CABLE, ignition switch to magneto (Order 358109R92)

1шт.

12

351871R1

SPARE PART CLIP, on clutch housing bolt

1шт.

These parts are not included in lighting and starting attachment.

1шт.

13

355794R91

SPARE PART MOTOR, cranking assembly (For components see list of parts under details of "cranking motor")

1шт.

13

137130

PIN

Value, 6V, 10MT Inertia

1шт.

13

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

13

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

351218R92

MAGNETO

MAGNETO, assembly (For components see list of parts under details of "magneto")

1шт.

These parts are not included in lighting and starting attachment.

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

363130R91

SWITCH

SWITCH, lighting assembly (For components see list of parts under details of "lighting switch")

1шт.

16

63323D

SPARE PART GROMMET, instrument panel (S/N 188147 up)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

17

CABLE, fuse housing to lighting switch (Order 354232R91)

1шт.

18

54207DB

SWITCH

SWITCH, magneto ignition, assembly (For components see list of parts under details of "magneto ignition switch")

1шт.

These parts are not included in lighting and starting attachment.

1шт.

19

CABLE, fuse housing to junction block (Order 354232R91)

1шт.

20

42383DC

AMMETER

AMMETER, w/clamp, six nuts and six washers (Optional with 354473R91)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

20

354473R91

AMMETER

AMMETER, w/clamp, six nuts and six washers (Optional with 42383DC)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

20

360053R91

INDICATOR

INDICATOR, charge w/clamp, six nuts and six washers (Used only on tractors equipped with voltage regulator)

1шт.

21

CABLE, regulator "BAT" terminal to ammeter or charge indicator (Gray) (Order 354243R92)

1шт.

22

CABLE, regulator "L" terminal to junction block (Light green) (Order 354243R92)

1шт.

23

354232R91

BOX

HOUSING, fuse w/two cables, knob, 356445R91 nut and washer (Will work for 354233R91)

1шт.

24

354243R92

HARNESS

HARNESS, cable w/two cables

1шт.

25

350736R91

CABLE

CABLE, battery to ground w/bolt, 356062R91

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

26

355196R93

SPARE PART BATTERY (Optional with 354210R91)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

26

354210R91

SPARE PART BATTERY (Optional with 355196R92)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

27

351913R1

SPARE PART CLIP, cable harness (On generator bracket rear bolt)

1шт.

28

354237R91

SPARE PART GENERATOR, assembly (For components see list of parts under details of "generator")

1шт.

220065

NUT, hex., 5/16-18NC

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

350742R1

SPARE PART CLIP, cable harness (On lower air cleaner mounting bolt)

1шт.

30

355847R1

SPARE PART SUPPORT, cable harness (On battery box hold-down bolt) (For tractors equipped with touch-control) (S/N, Serial Range: 100001-176522)

2шт.

31

359526R1

SPARE PART CLIP, cable harness (On battery box mounting bolt) (For tractors equipped with touch-control) (S/N 176523 up)

1шт.

32

60938D

SPARE PART CLIP, rear light cable (On undersize of rear frame cover) (S/N, Serial Range: 100001-189456)

2шт.

These parts are not included in lighting and starting attachment.

1шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

SCREW, cap, hex-hd., 3/8-16NC x 9/16"

2шт.

These parts are not included in lighting and starting attachment.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

These parts are not included in lighting and starting attachment.

1шт.

33

358118R91

CABLE

SPARE PART CABLE, switch to rear light (Will work for 30710DX or 30693DX) (S/N, Serial Range: 100001-189456)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

34

45640DB

LAMP

LIGHT, rear conventional assembly (For components see list of parts under details of "headlights or rear light") (S/N, Serial Range: 100001-159454)

1шт.

These parts are not included in lighting and starting attachment.

1шт.

34

357884R93

SPARE PART LIGHT, rear, sealed beam assembly (For components see list of parts under details of "headlights or rear light") (S/N 159455 up)

1шт.

35

61813D

CLIP

SPARE PART CLIP, rear light cable (On undersize of rear frame cover) (S/N 189457 up)

2шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

SCREW, cap, hex-hd., 3/8-16NC x 9/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

358111R92

CABLE

CABLE, switch to rear light (S/N 189457 up)

1шт.

37

61813D

CLIP

SPARE PART CLIP, rear light cable (On rear frame cover rear, L.H. mounting bolt) (S/N 189457 up)

1шт.

38

61813D

CLIP

SPARE PART CLIP, rear light cable (On rear frame cover) (S/N 189457 up)

1шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

358116R92

SPARE PART CABLE, generator "F" terminal to regulator "F" terminal (Will work for 354230R11)

1шт.

40

358112R92

CABLE

CABLE, generator "A" terminal to regulator "GEN" terminal (Will work for 354229R11 or 358115R91)

1шт.

41

360898R91

REGULATOR

REGULATOR, voltage assembly (Will work for 354234R91) (For components see list of parts under details of "voltage regulator")

1шт.

42

42915D

BLOCK

BLOCK, junction, instrument panel w/screw

1шт.

120261

NUT, hex., cd-pltd., no. 10-24NC

1шт.

110503

SCREW, slotted-rd-hd., no. 10-24NC x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

52318DA

V-BELT,0.55" W

Generator

1шт.

60714DA

SUPPORT

BRACE, generator

1шт.

49288DA

SPARE PART BRACE, generator (For tractor not equipped with water pump)

1шт.

These parts are not required for use on Super C tractors but are supplied in the field attachment that is also used on Farmall C tractors.

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

These parts are not required for use on Super C tractors but are supplied in the field attachment that is also used on Farmall C tractors.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" I.D. x 11/16" O.D. x no. 16 GA.

1шт.

354238R94

SPARE PART BRACKET, generator

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

350920R1

CLAMP

CLAMP, headlight or rear light

3шт.

350633R3

CLIP

CLIP, choke rod, front (For tractors equipped with touch-control)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

352147R1

CLIP, choke rod, front (For tractors not equipped with touch-control)

1шт.

25-114

NUT,1/4"-28, G5

NUT, hex., 1/4-28NF

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 5/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

354379R1

SPARE PART CLIP, choke rod (Will work for 352148R1)

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

354379R1

SPARE PART CLIP, starting switch pull rod (Will work for 352146R1)

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

106653

FUSE

FUSE, type AGC, 20 amp.

1шт.

8639D

SPARE PART LEVER, choke rod

1шт.

100661

SCREW, slotted-fil-hd., no. 10-32NF x 5/8"

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

351443R2

SPARE PART PIPE, headlight support

1шт.

139705

SCREW, set, hex-socket-hd., dog-pt., 1/4-20NC x 1/2"

2шт.

6812D

PULLEY

PULLEY, generator

1шт.

356744R1

PULLEY

PULLEY, generator

1шт.

351444R1

SPARE PART ROD, choke

1шт.

137130

PIN

PIN, cotter, 1/16 x 7/16"

1шт.

351446R2

SPARE PART ROD, starting switch pull

1шт.

137130

PIN

PIN, cotter, 1/16 x 7/16"

1шт.

351814R2

SPARE PART RUBBER, battery hold-down, long

2шт.

51714D

SPARE PART RUBBER, battery hold-down, short

2шт.

49069D

SPACER

SPACER, head or rear light

3шт.

354260R1

SPACER,1/8" Pipe x 7/16"

SPACER, instrument panel junction block

1шт.

360478R11

SPARE PART SUPPORT, rear light

1шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
