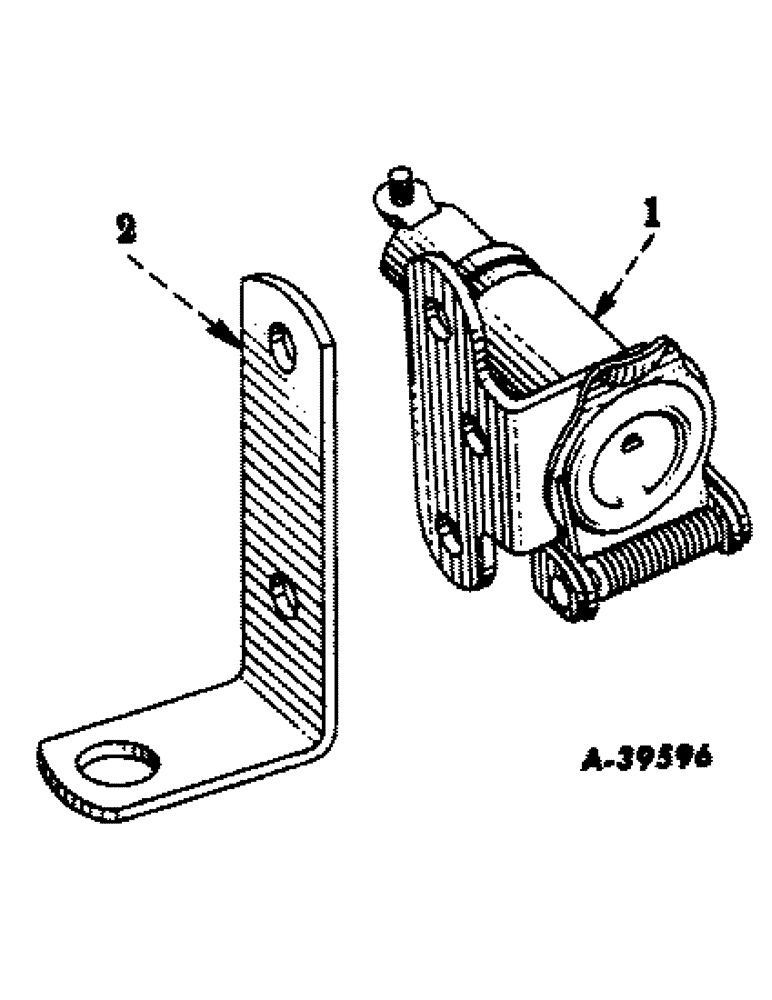

Запчасти Case IH SUPER C (077) - ELECTRICAL SYSTEM, ELECTRICAL BREAK-AWAY CONNECTOR SOCKET, SPECIAL (06) - ELECTRICAL SYSTEMS

363923R91

PACKAGE, electrical breakaway connector socket (For tractors equipped with lighting and starting) (Consists of parts listed in this unit except as noted)

1шт.

1

362002R92

SOCKET

electrical breakaway connector w/cap, two screws and spring

1шт.

114378

NUT, hex., 1/4-20NC

2шт.

120572

SCREW, mach., slotted-truss-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

364004R1

BRACKET, breakaway connector socket mounting

1шт.

103026

NUT,3/8"-24, G5

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

CABLE, breakaway connector socket to rear light (Order cable, 358572R92, terminal, (No. 10) and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

TERMINAL, electrical, type b, brs., no. 10

1шт.

CABLE, breakaway connector socket to ground terminal (Order cable, 358572R92, terminal (7/16") and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

TERMINAL, electrical, type b, brs., 7/16"

1шт.

358572R92

w/two sleeves and terminals, to make two breakaway connector socket cables from this cable, measure and cut length needed for each cable form each end terminal, then assemble one sleeve, 364003R1 and one terminal, no. 10 or 7/16" to complete each c

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

NLS

NO LONGER SERVICED

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

361002R1

SPACER, socket mounting bracket (1" long)

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

364171R1

BRACKET

SPACER, socket mounting bracket (9/16" long)

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

TERMINAL, electrical, type b., no. 10

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

These parts are not required for use on Farmall Super C tractors but are supplied in the breakaway connector socket package that is also available for other tractors.

1шт.
