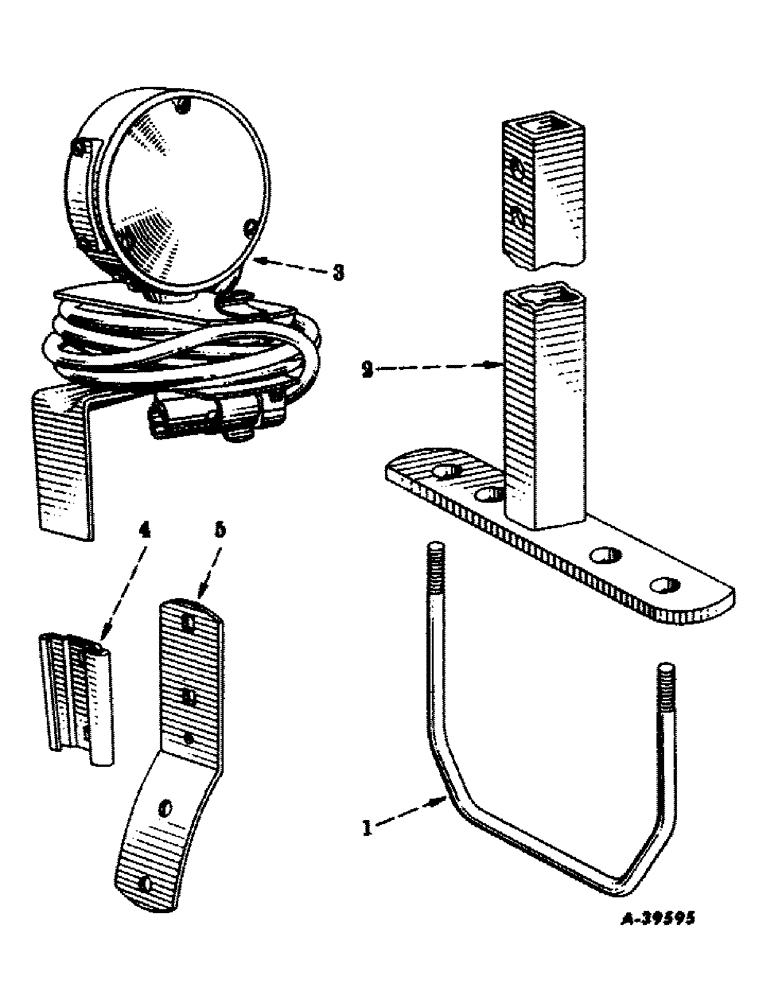

Запчасти Case IH SUPER C (076) - ELECTRICAL SYSTEM, SAFETY LIGHT AND SUPPORTS, SPECIAL (06) - ELECTRICAL SYSTEMS

363914R91

PACKAGE, safety light (6 volt) (Consists of parts listed in this unit except as noted) (For tractors equipped with electrical breakaway connector socket)

1шт.

1

364291R1

BOLT, "U" safety lamp support

1шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NC

2шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

2

364290R11

SUPPORT, safety lamp

1шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, carriage, short sq-neck., 5/16-18NC x 2"

2шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

These additional parts are not included in the safety light package but are neccessary to mount the safety light on tractors not equipped with fenders.

1шт.

3

363917R91

LIGHT, safety assembly (6 volt)

1шт.

4

363919R1

SOCKET

safety light bracket

1шт.

14990R1

BOLT

carriage, sq-nk., 5/16-18NC x 5/8"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

363920R1

BRACKET, safety light

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

120576

SCREW, mach., slotted-truss-hd., 5/16-18NC x 1-1/4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
