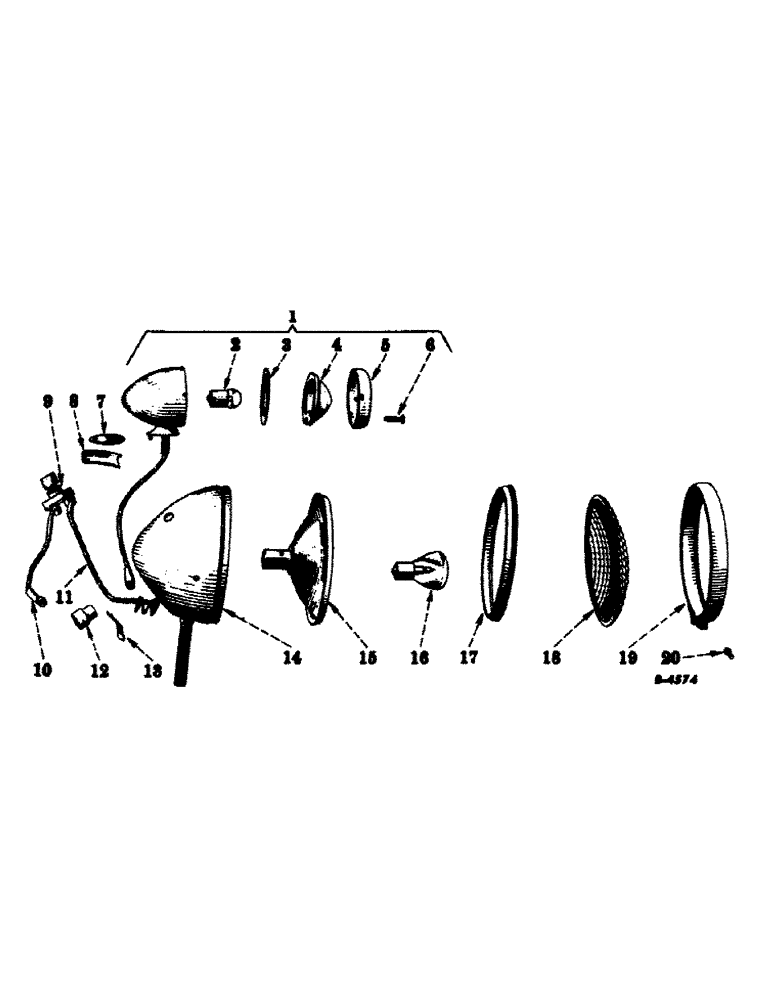

Запчасти Case IH SUPER C (072) - ELECTRICAL SYSTEM, REAR LIGHT AND TAIL LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS

353268R92

LIGHT

ATTACHMENT, rear light and tail light (6 volt) (Order 355914R91)

1шт.

1

354305R92

LAMP, TAIL

LIGHT, tail, assembly (6 volt)

1шт.

2

86982698

LAMP

no. 63, 6 volt

1шт.

3

92111H

GASKET, tail light door

1шт.

4

354308R1

LENS, tail light (Ruby)

1шт.

5

354307R92

DOOR, tail light

1шт.

6

104733H

SCREW, tail light door

1шт.

7

104734H

GASKET, tail light mounting

1шт.

8

354310R1

STIFFENER, tail light mounting

1шт.

121917

NUT, hex., cd-pltd., 5/16-24NF

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

354309R91

SWITCH

light, assembly, Composed of

1шт.

355424R91

SWITCH

BODY

1шт.

355423R91

KNOB

1шт.

355425R1

NUT

1шт.

10

354303R91

CABLE, switch to terminal plate

1шт.

11

354304R91

CABLE, socket to switch, w/spring

1шт.

12

79407H

PLATE

terminal

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

slotted-rd-hd., cd-pltd., no. 8-32NC x 5/16"

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

13

79408H

SPRING, retaining, terminal

1шт.

14

354302R92

LAMP

BODY, rear light

1шт.

15

53523D

REFLECTOR, rear light

1шт.

16

142309

PULLEY

no. 1133, 6 volt

1шт.

17

53527D

GASKET

rear light

1шт.

18

350478R1

LENS

rear light

1шт.

19

53525DA

MOLDING

MOULDING, rear light

1шт.

20

53526D

SCREW

rear light door

1шт.

68417D

INSULATOR

PACKAGE, terminal plate, assembly, Consists of

1шт.

79407H

PLATE

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

2шт.

79408H

SPRING

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

355424R91

SWITCH

BODY, switch

1шт.

355423R91

KNOB, switch w/screw

1шт.

355425R1

NUT, retaining, switch

1шт.
