(070) - ELECTRICAL SYSTEM, HEADLIGHT OR REAR LIGHT, CONVENTIONAL, SERIAL NO. 100001 TO 159454

Запчасти Case IH SUPER C (070) - ELECTRICAL SYSTEM, HEADLIGHT OR REAR LIGHT, CONVENTIONAL, SERIAL NO. 100001 TO 159454 (06) - ELECTRICAL SYSTEMS

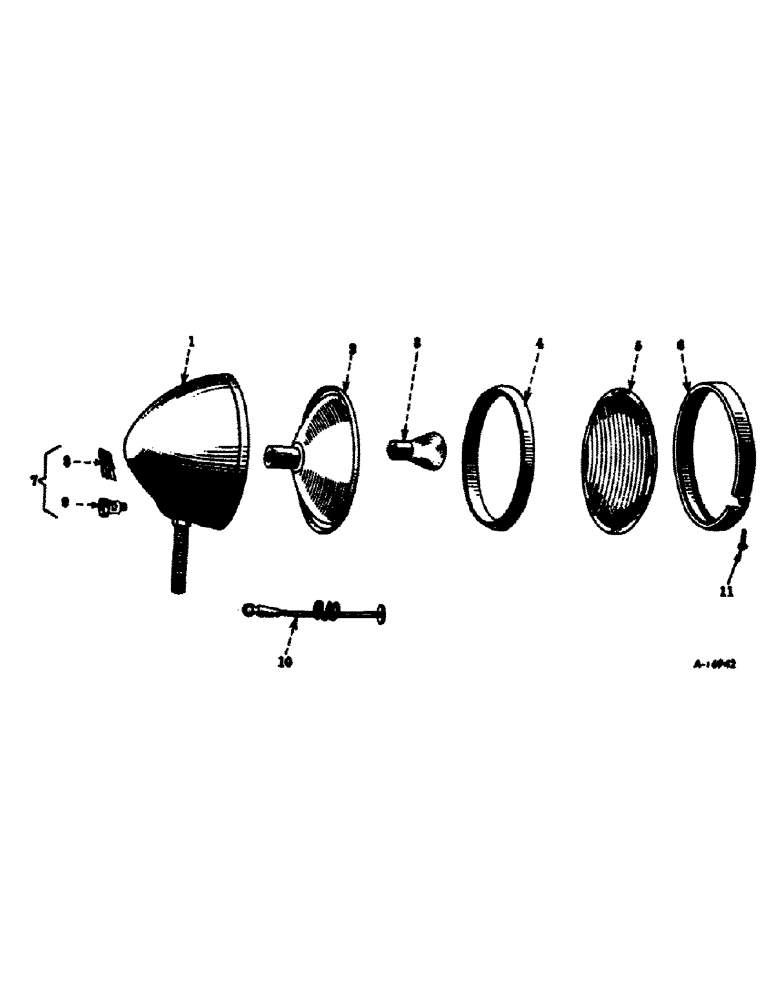

Схема запчастей Case IH SUPER C - (070) - ELECTRICAL SYSTEM, HEADLIGHT OR REAR LIGHT, CONVENTIONAL, SERIAL NO. 100001 TO 159454 (06) - ELECTRICAL SYSTEMS
6
7
4
8
1
3
5
9
11
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

45640DB

LAMP

HEADLIGHT OR REAR LIGHT, conventional (6 volt) assembly

1шт.

1

53522DA

BODY

1шт.

2

53523D

REFLECTOR

1шт.

3

B50206

LAMP

no. 1133, 6 volt

1шт.

4

53527D

GASKET

1шт.

5

350478R1

LENS

1шт.

6

53525DA

MOLDING

MOULDING

1шт.

7

68417D

INSULATOR

PLATE, terminal assembly, Composed of

1шт.

79407H

PLATE

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

2шт.

79408H

SPRING

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

8

79408H

SPRING, terminal plate

1шт.

9

79407H

PLATE

terminal

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

slotted-rd-hd., co-pltd., no. 8-32NC x 5/16"

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

10

53524D

CABLE

1шт.

11

53526D

SCREW

moulding

1шт.
