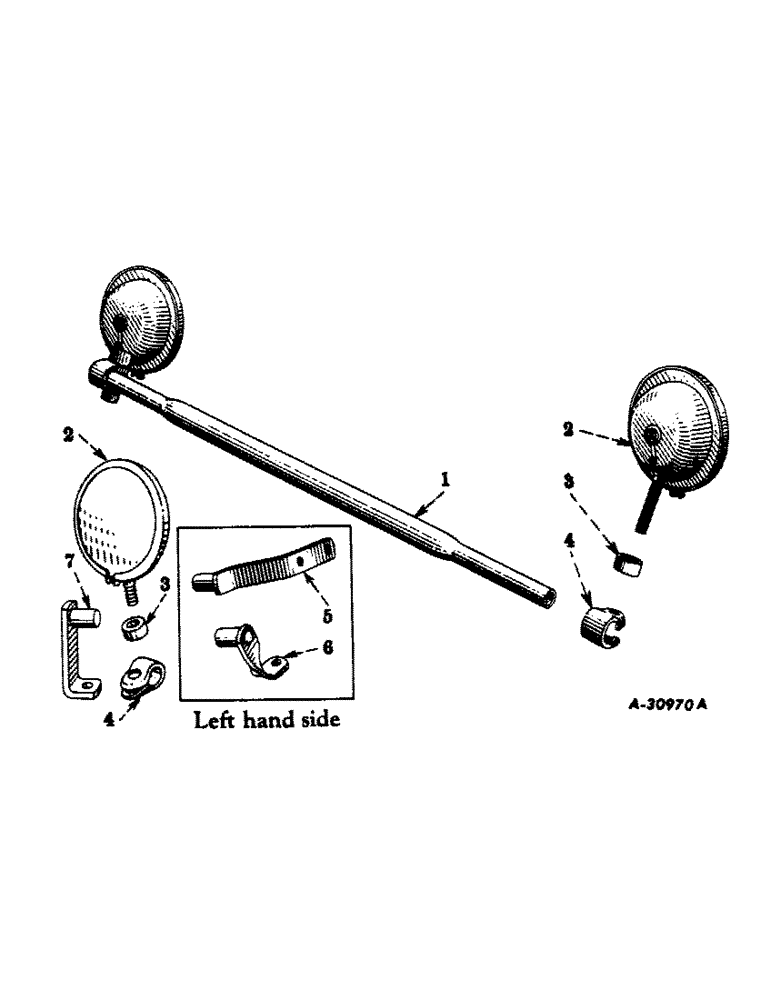

Запчасти Case IH SUPER C (069) - ELECTRICAL SYSTEM, HEADLIGHT AND REAR LIGHT SUPPORTS (06) - ELECTRICAL SYSTEMS

1

351443R2

PIPE, headlight support

1шт.

1

356825R1

PIPE, headlight support (Tractors equipped with hydraulic remote control)

1шт.

139705

SCREW, set, hex-socket-hd., dog-pt., 1/4-20NC x 1/2"

2шт.

2

45640DB

LAMP

HEADLIGHT OR REAR LIGHT, conventional, assembly (6 volt) (Not illustrated) (For components see list of parts under details of "headlights or rear light unit") (S/N, Serial Range: 100001-159454)

3шт.

2

357884R93

HEADLIGHTS OR REAR LIGHT, sealed beam, assembly (6 volt) (For components see list of parts under details of "headlights or rear light") (S/N 159455 up)

3шт.

114774

NUT, hex., 1/2-13NC

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

49069D

SPACER

headlight or rear light

3шт.

4

350920R1

CLAMP

headlight or rear light

3шт.

5

351752R11

SUPPORT, rear light (Not used on tractors equipped with fast-hitch) (S/N, Serial Range: 100001-189456)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

353642R11

SUPPORT, rear light (Tractors equipped with fast-hitch) (S/N, Serial Range: 100001-189456)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 2-1/4"

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

7

360478R11

SUPPORT, rear light (Tractors equipped with fast-hitch) (S/N 189457 up)

1шт.

103026

NUT,3/8"-24, G5

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
