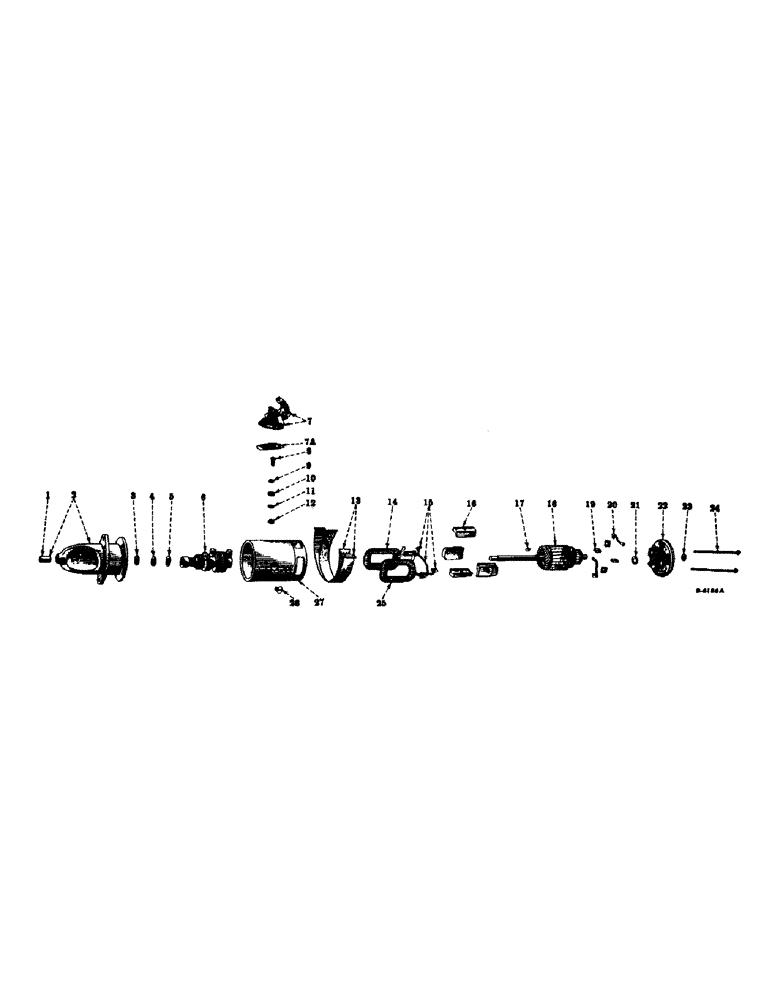

Запчасти Case IH SUPER C (066) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

355794R91

SPARE PART MOTOR, cranking (6 volt) (Mfr. no. 1107093)

1шт.

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

1

BUSHING, drive housing (Mfr. no. 810620)

1шт.

2

HOUSING, drive, w/bushing, 810620 (Mfr. no. 1910093)

1шт.

3

WASHER, space, drive end (Mfr. no. 833602)

1шт.

4

WASHER, space, drive end (Mfr. no. 1849774)

1шт.

5

WASHER, space, drive end (Mfr. no. 809815)

1шт.

6

DRIVE, motor (Mfr. no. 1868804), Composed of

1шт.

.

GEAR AND SHAFT (Mfr. no. 1855629)

1шт.

.

HEAD (Mfr. no. 1848530)

1шт.

.

SCREW (Mfr. no. 1850810)

1шт.

.

SCREW (Mfr. no. 1850811)

1шт.

.

SPRING (Mfr. no. 1860639)

1шт.

.

WASHERS (Mfr. no. 805057)

2шт.

7

SWITCH, starting, assembly (For components see list of parts under details of "starting switch") (Mfr. no. 1918405)

1шт.

.

SCREW, starter switch attaching (Mfr. no. 1884121)

2шт.

7a

GASKET, starting switch (Mfr. no. 1912376)

1шт.

8

STUD, terminal, field (Mfr. no. 821524)

1шт.

9

WASHER, insulating, terminal stud (Mfr. no. 1904669)

2шт.

10

WASHER, insulating, terminal stud (Mfr. no. 1861076)

2шт.

11

WASHER, terminal stud, plain (1/32" thick) (Mfr. no. 812622)

2шт.

11

WASHER, terminal stud, plain (1/16" thick) (Mfr. no. 805790)

1шт.

12

NUT, terminal stud (Mfr. no. 805258)

1шт.

13

BAND, cover, (Mfr. no. 1886923)

1шт.

.

SCREW, slotted-rh-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. no. 132926)

1шт.

.

NUT, hex., no. 10-32NF (Mfr. no. 103088)

1шт.

14

COIL, field (L.H.) (Mfr. no. 812407)

1шт.

15

LEAD, connector, brush (Mfr. no. 819362)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr. no. 132892)

2шт.

.

WASHER, lock, no. 10 (Mfr. no. 106497)

2шт.

16

SHOE, pole (Mfr. no. 810601)

4шт.

.

SCREW, pole shoe (Mfr. no. 1881869)

4шт.

17

KEY, Woodruff 5/32 x 5/8" (Mfr. no. 124546)

1шт.

18

ARMATURE (Mfr. no. 818002)

1шт.

19

BRUSH (Mfr. no. 811553)

4шт.

.

SCREW, slotted-rd-hd., no. 6-32NC x 1/2" (Mfr. no. 115903)

4шт.

.

WASHER, lock, no. 6 (Mfr. no. 106495)

4шт.

20

LEAD, ground, brush (Mfr. no. 813554)

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x 1/4" (Mfr. no. 122159)

2шт.

.

WASHER, lock, no. 8 (Mfr. no. 106496)

2шт.

21

WASHER, space, commutator end (Mfr. no. 833602)

1шт.

22

FRAME, end, commutator (Mfr. no. 1881625)

1шт.

23

PLUG, commutator end frame (Mfr. no. 1865182)

1шт.

24

BOLT, thru (Mfr. no. 809053)

2шт.

.

WASHER, lock, 1/4" (Mfr. no. 103319)

2шт.

25

COIL, field (R.H.) (Mfr. no. 812406)

1шт.

26

SCREW, pole shoe

4шт.

27

FRAME (Not serviced separately)

1шт.

.

GEAR and SHAFT, motor drive (Mfr. no. 1855629)

1шт.

.

HEAD, motor drive (Mfr. no. 1848530)

1шт.

.

HOLDER, brush (Mfr. no. 810226)

4шт.

.

OILER, commutator end frame (Mfr. no. 1880642)

1шт.

.

PIN, brush holder hinge (Mfr. no. 817313)

2шт.

.

PIN, brush holder, w/insulation (Mfr. no. 812016)

2шт.

.

PIN, brush holder stop (Mfr. no. 817314)

2шт.

.

PIN, brush holder stop, w/insulation (Mfr. no. 812015)

2шт.

.

PIN, dowel, commutator end (Mfr. no. 809062)

1шт.

.

PIN, dowel, drive end (Mfr. no. 809593)

1шт.

.

SCREW, motor drive spring (At head) (Mfr. no. 1850811)

1шт.

.

SCREW, motor drive spring (Shaft end) (Mfr. no. 1850810)

1шт.

.

SPRING, brush holder (Mfr. no. 813521)

4шт.

.

SPRING, motor drive (Mfr. no. 1860639)

1шт.

.

WASHER, lock, drive spring screw (Mfr. no. 805057)

2шт.

.

WICK, oil, commutator end frame oiler (Mfr. no. 802691)

1шт.
