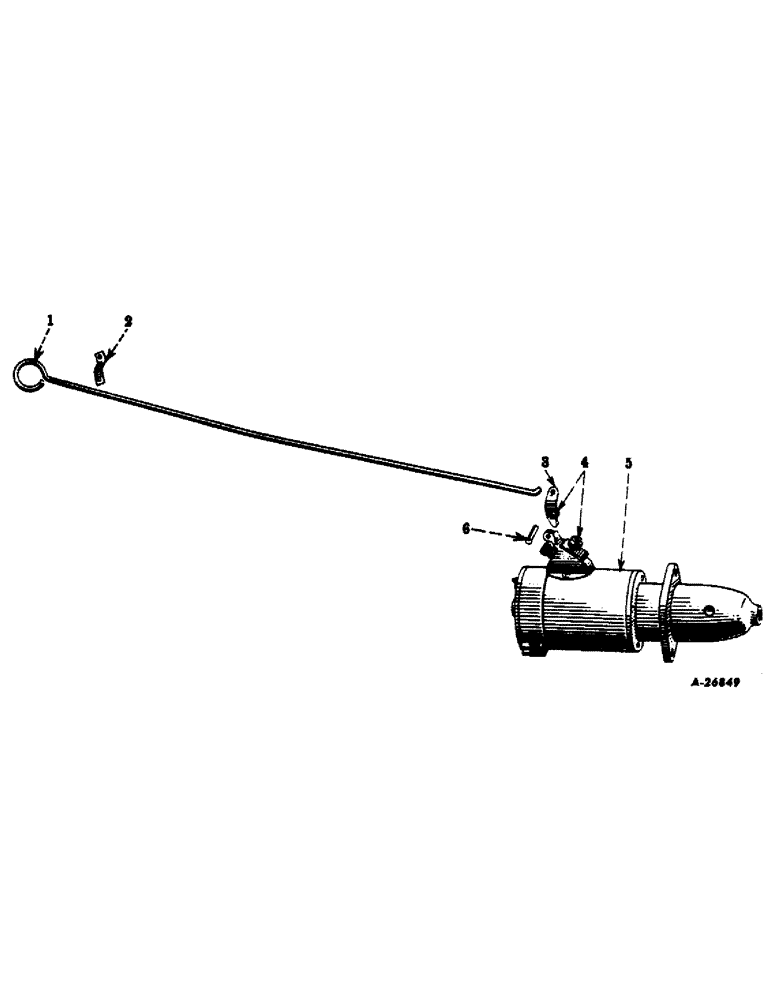

Запчасти Case IH SUPER C (065) - ELECTRICAL SYSTEM, CRANKING MOTOR, LEVER AND PULL ROD (06) - ELECTRICAL SYSTEMS

1

351446R2

SPARE PART ROD, pull, starting switch

1шт.

137130

PIN

PIN, cotter, 1/16 x 7/16"

1шт.

2

354379R1

SPARE PART CLIP, starting switch pull rod

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

LEVER, starting switch (Mfr. no. 1918322)

1шт.

4

SWITCH, cranking motor, w/lever, 1918322, assembly (Mfr. no. 1918405) (For components see list of parts under details of "starting switch")

1шт.

5

355794R91

SPARE PART MOTOR, cranking (6 volt) (For components see list of parts under detail of "cranking motor")

1шт.

5

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

5

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

5

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

PIN, starting switch lever (Mfr. no. 1880254)

1шт.

137130

PIN

PIN, cotter, 1/16 x 7/16"

1шт.
