(064) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY

Запчасти Case IH SUPER C (064) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

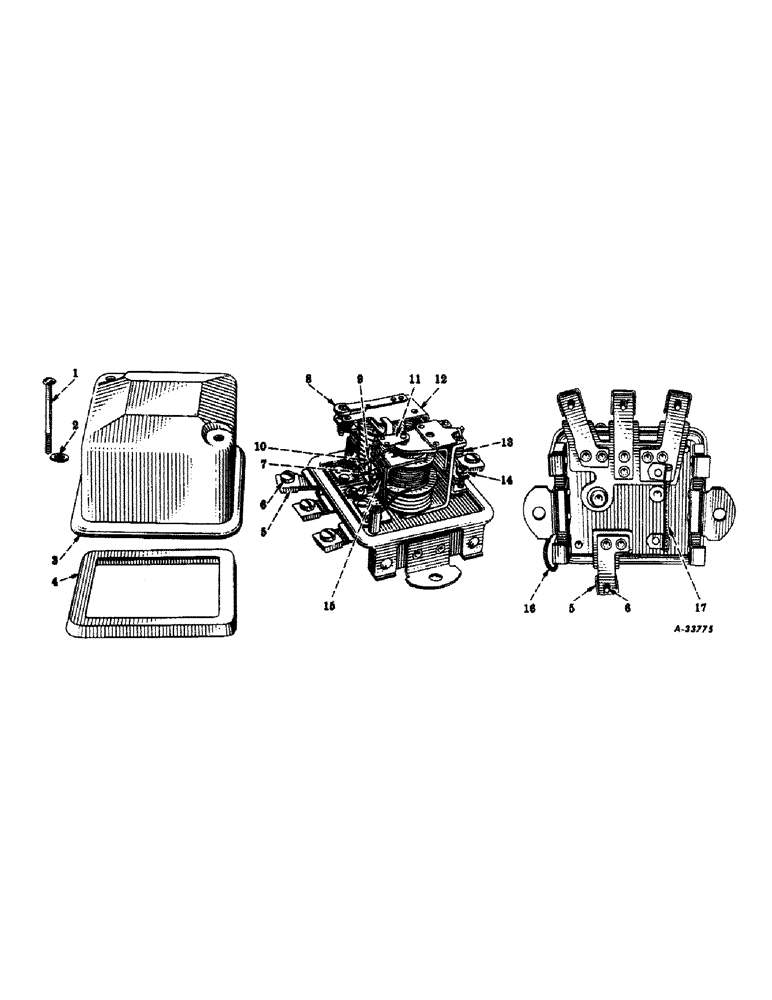

Схема запчастей Case IH SUPER C - (064) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS
6
13
14
17
5
15
5
16
7
6
1
11
10
12
4
8
9
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

360898R91

REGULATOR

voltage assembly (6 volt) (Will work for 354234R91) (Mfr.no. 1118780)

1шт.

1

SCREW, cover attaching (Mfr.no. 1927982)

2шт.

2

WASHER, insulating cover attaching screw, (Mfr.no. 1922996)

2шт.

3

COVER, (Mfr.no. 1927980)

1шт.

4

GASKET, cover (Mfr.no. 1927981)

1шт.

5

CLAMP, terminal (Mfr.no. 1868137)

4шт.

6

SCREW, terminal (Mfr.no. 1864099)

4шт.

7

SCREW, current voltage regulator contact attaching (Mfr.no. 1878516)

2шт.

8

SCREW, cut-out adjusting relay armature (Mfr.no. 1912159)

1шт.

9

WASHER, insulating, current-voltage regulator contact attaching screw (Mfr.no. 1878507)

2шт.

10

WASHER, lock, current-voltage regulator contact attaching screw (Mfr.no. 1878505)

1шт.

11

CONTACT AND SUPPORT, current-voltage regulator (Mfr.no. 1878517)

1шт.

12

ARMATURE, cut-out relay (Mfr.no. 1878780)

1шт.

SCREW, cut-out relay armature (Mfr.no. 454431)

2шт.

WASHER, lock, cut-out relay armature attaching screw (Mfr.no. 1904377)

2шт.

13

SPRING, current-voltage regulator armature (Mfr.no. 1912176)

1шт.

14

SCREW, current-voltage regulator armature adjusting (Mfr.no. 1922408)

1шт.

15

INSULATOR, current-voltage regulator contact attaching screw (Mfr.no. 1922599)

1шт.

16

LEAD, current-voltage ground (Mfr.no. 1927975)

1шт.

17

RESISTOR, "F" terminal to ground (Mfr.no. 1910183)

1шт.
