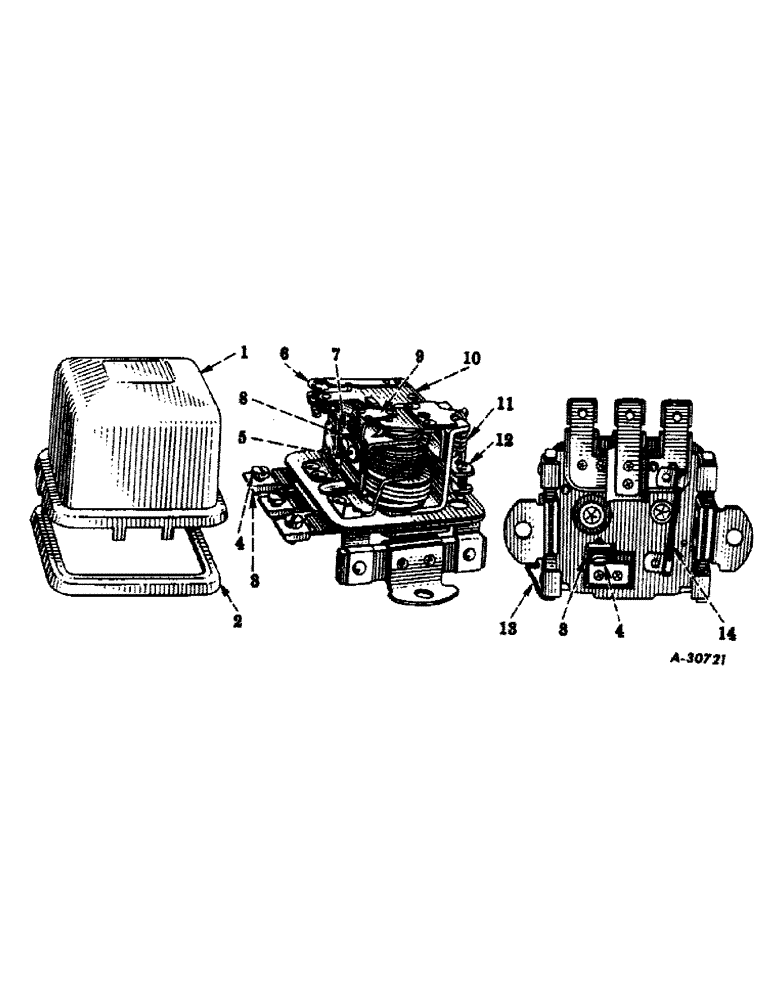

Запчасти Case IH SUPER C (063) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

354234R91

REGULATOR

voltage assembly (6 volt) (Order 360898R91) (Mfr. no. 1118308)

1шт.

1

COVER (Mfr. no. 1909034)

1шт.

2

GASKET, cover (Mfr. no. 190935)

1шт.

3

CLAMP, terminal (Mfr. no. 186137)

4шт.

4

SCREW, terminal (Mfr. no. 1864099)

4шт.

5

SCREW, regulator contact attaching (Mfr. no. 1878516)

2шт.

6

SCREW, adjusting relay armature (Mfr. no. 1912159)

1шт.

7

WASHER, insulating regulator contact attaching screw (Mfr. no. 1878507)

2шт.

8

WASHER, lock, regulator contact attaching screw (Mfr. no. 1878505)

1шт.

9

CONTACT AND SUPPORT, regulator (Mfr. no. 1878517)

1шт.

10

ARMATURE, relay (Mfr. no. 1878780)

1шт.

SCREW, relay armature (Mfr. no. 1904817)

2шт.

WASHER, lock, relay armature attaching screw (Mfr. no. 1904377)

2шт.

11

SPRING, regulator armature (Mfr. no. 1912176)

1шт.

12

SCREW, regulator armature adjusting (Mfr. no. 1912365)

1шт.

13

LEAD, assembly, ground (Mfr. no. 1885467)

1шт.

14

RESISTOR, "F" terminal to ground (Mfr. no. 1885297)

1шт.

BUSHING, insulating regulator contact attaching screw (Mfr. no. 1878506)

2шт.

PACKAGE, shock mounting (Mfr. no. 1913064)

1шт.
