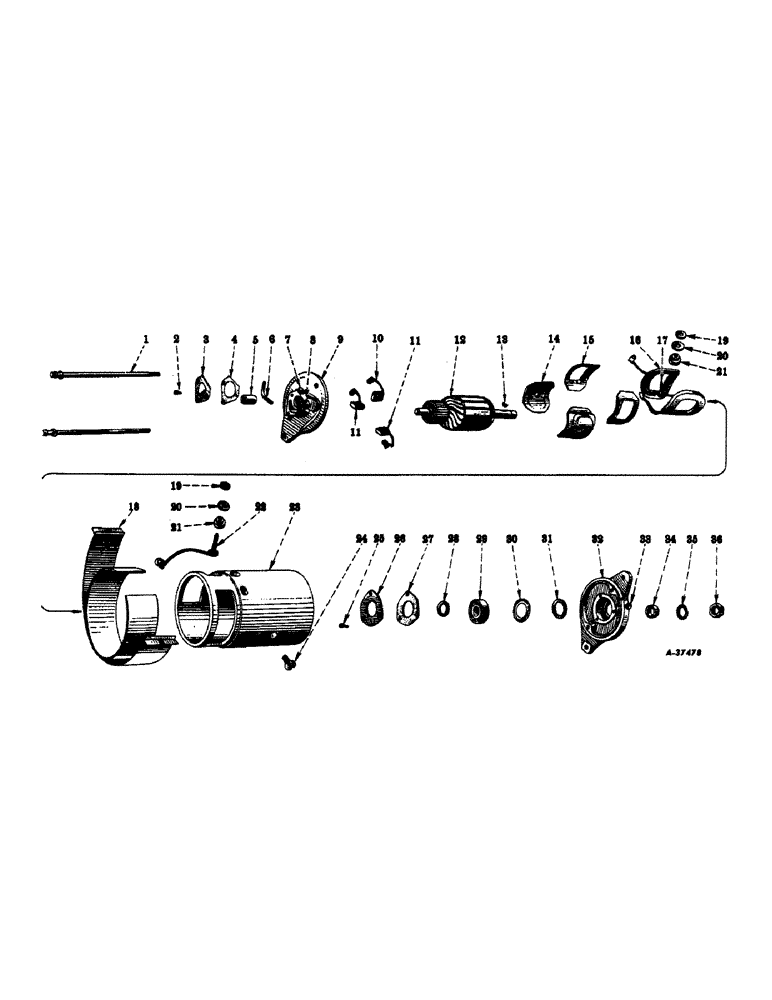

Запчасти Case IH SUPER C (060) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

354237R91

SPARE PART GENERATOR, assembly (6 volt) (Mfr. no. 1100501)

1шт.

103812A1R

REMAN-GENERATOR

Generator

1шт.

103812A1C

CORE-GENERATOR

Return Part Number

1шт.

103821A1R

REMAN-GENERATOR

Generator

1шт.

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

104026A1R

REMAN-GENERATOR

Remanufactured, Generator, 6 volt 11 ampere

1шт.

104026A1C

CORE-GENERATOR

Return Part Number - Generator, 6 volt 11 ampere

1шт.

1

BOLT, thru (Mfr. no. 815018)

2шт.

.

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr. no. 120638)

2шт.

2

SCREW, commutator end cover plate (Mfr. no. 1886496)

3шт.

.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. no. 121841)

3шт.

3

PLATE, commutator end cover (Mfr. no. 820524)

1шт.

4

GASKET, commutator end cover plate (Mfr. no. 817220)

1шт.

5

BUSHING, commutator end (Mfr. no. 812823)

1шт.

6

WICK, oil, commutator end (Mfr. no. 804076)

1шт.

7

OILER, commutator end w/cap and spring (Mfr. no. 1880635)

1шт.

8

PLUG, oil wick, commutator end (Mfr. no. 1911097)

1шт.

9

FRAME, commutator end, assembly (Mfr. no. 1913564), Composed of

1шт.

812823

BUSHING

BUSHING

1шт.

.

FRAME (NSS)

1шт.

1880635

OILER

OILER

1шт.

809062

SPARE PART PIN

1шт.

1911097

PLUG

1шт.

804076

WICK

WICK

1шт.

10

BRUSH, third (Mfr. no. 1850768)

1шт.

.

SCREW, slotted-rh-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. no. 132688)

1шт.

.

WASHER, lock, brush lead attaching screw (Mfr. no. 1904377)

1шт.

11

BRUSH, main (Mfr. no. 1906923)

2шт.

.

SCREW, slotted-rh-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. no. 132688)

2шт.

.

WASHER, lock, brush lead attaching screw (Mfr. no. 1904377)

2шт.

12

ARMATURE (Mfr. no. 1913560)

1шт.

13

KEY, Woodruff, alloy-stl. 1/8 x 5/8" (Drive end) (Mfr. no. 124545)

1шт.

14

SHOE, pole (Mfr. no. 1914618)

2шт.

15

INSULATOR, field coil (Mfr. no. 1914491)

2шт.

16

COIL SET, field w/insulator, 1914491, stud, 1858751 and terminal (Mfr. no. 1913554)

1шт.

17

STUD, field terminal (Mfr. no. 1858751)

1шт.

.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. no. 121743)

2шт.

.

WASHER, lock, field terminal stud (Mfr. no. 1904661)

2шт.

18

BAND, cover w/nut, 120614 and screw, 132926 (Mfr. no. 1872638)

1шт.

.

SCREW, mach. slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. no. 132926)

1шт.

.

NUT, hex., cd-pltd., no. 10-32NF (Mfr. no. 120614)

1шт.

19

WASHER, terminal stud (Mfr. no. 1881409)

2шт.

20

WASHER, insulating, terminal stud (Mfr. no. 1858753)

2шт.

21

BUSHING, insulating, terminal stud (Mfr. no. 1885090)

2шт.

22

POLE ARMATURE (Includes cable terminal stud, 1858751 and terminal) (Mfr. no. 1858754)

1шт.

.

STUD, armature terminal (Mfr. no. 1858751)

2шт.

.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. no. 121743)

2шт.

.

WASHER, lock, terminal stud (Mfr. no. 1904661)

2шт.

23

FRAME (Not serviced separately)

1шт.

24

SCREW, pole shoe (Mfr. no. 1843646)

2шт.

25

SCREW, retainer plate (Mfr. no. 1904370)

3шт.

.

WASHER, lock, retainer plate screw (Mfr. no. 1880781)

3шт.

26

PLATE, ball bearing retainer (Mfr. no. 1911263)

1шт.

27

GASKET, ball bearing retainer plate (Mfr. no. 1912008)

1шт.

28

WASHER, space, drive end (Mfr. no. 809945)

1шт.

29

BEARING, ball (Drive end) (Mfr. no. 954378)

1шт.

30

RETAINER, drive end felt washer (Mfr. no. 819104)

1шт.

31

WASHER, felt, drive end (Mfr. no. 809961)

1шт.

32

FRAME, drive end, w/oiler, 1880641 (Mfr. no. 1873830)

1шт.

33

OILER, drive end bearing w/cap and spring (Mfr. no. 1880641)

1шт.

34

SPACER, pulley (Mfr. no. 817224)

1шт.

35

WASHER, lock, armature shaft nut (Mfr. no. 80400)

1шт.

36

NUT, armature shaft (Mfr. no. 1914308)

1шт.

.

HOLDER, brush (Mfr. no. 1850759)

3шт.

.

PIN, dowel, commutator end (Mfr. no. 809062)

1шт.

.

PIN, dowel, drive end (Mfr. no. 809593)

1шт.

.

PLATE, brush (Mfr. no. 1913737)

1шт.

.

SCREW, brush plate attachting (Mfr. no. 1886496)

3шт.

.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. no. 121841)

3шт.

.

SPRING, brush, third (Mfr. no. 1850767)

1шт.

.

SPRING, brush, main (Mfr. no. 1850760)

2шт.

.

WASHER, space, brush arm (Mfr. no. 1857412)

3шт.
