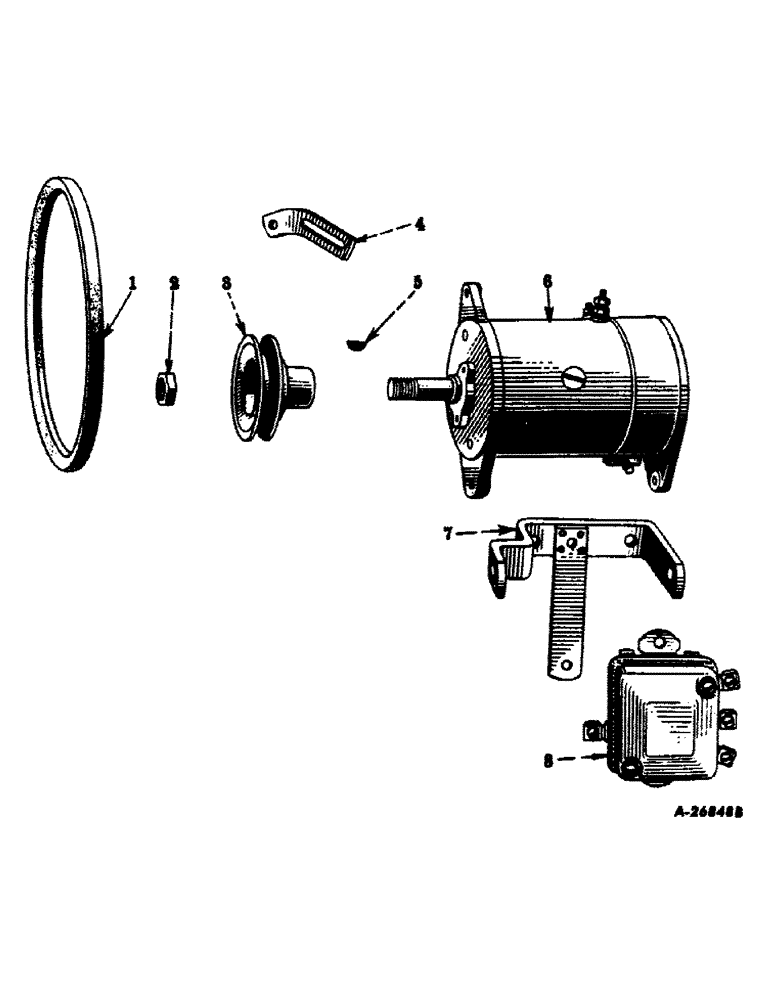

Запчасти Case IH SUPER C (059) - ELECTRICAL SYSTEM, GENERATOR, PULLEY AND BRACKETS (06) - ELECTRICAL SYSTEMS

1

49291D

V-BELT,0.53" W

Generator (S/N 100001 to 114645) 0.53" W

1шт.

1

52318DA

V-BELT,0.55" W

Generator (S/N 114646 up) 0.55" W

1шт.

2

NUT, armature shaft (Delco-Remy no. 1914308)

1шт.

3

6812D

PULLEY

generator (S/N, Serial Range: 100001-114645)

1шт.

3

356744R1

PULLEY

generator (S/N 114646 up)

1шт.

WASHER, lock, armature shaft nut (Delco-Remy no. 80400)

1шт.

4

60714DA

SUPPORT

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 GA.

1шт.

5

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, Woodruff 1/8 x 5/8" (For components see list of parts under details of "generator")

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

354237R91

GENERATOR, assembly (6 volt "voltage regulator") (Will work for 354234R91)

1шт.

7

354238R94

BRACKET, generator

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

360898R91

REGULATOR

voltage assembly (6 volt) (For components see list of parts under details of)

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
