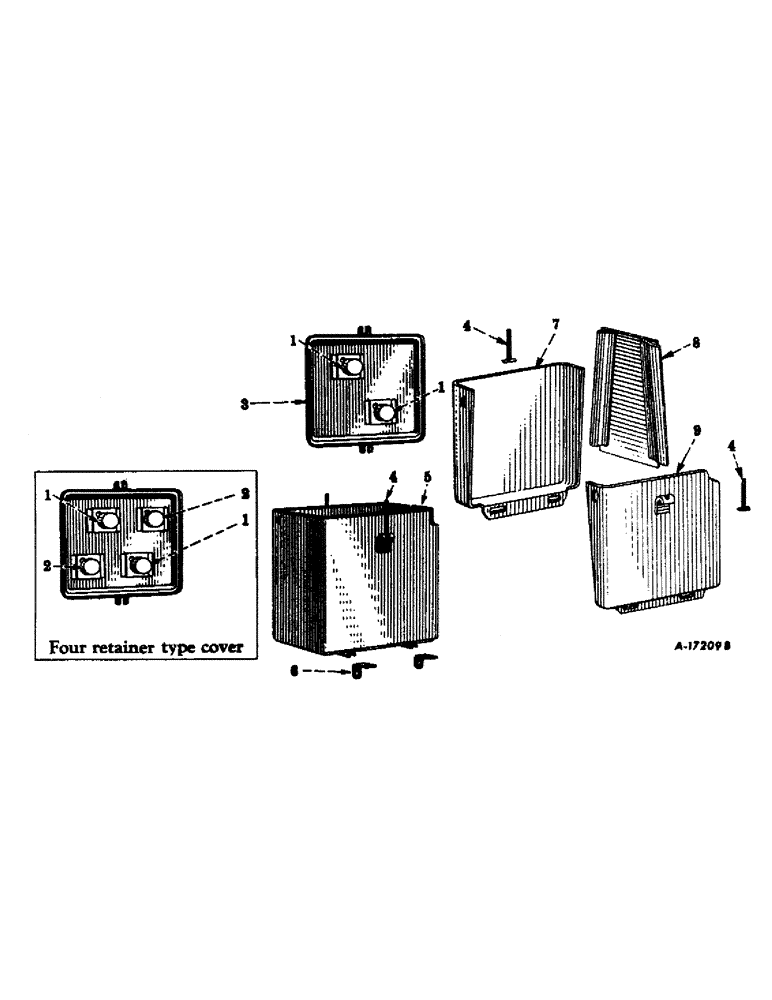

Запчасти Case IH SUPER C (058) - ELECTRICAL SYSTEM, BATTERY BOX (06) - ELECTRICAL SYSTEMS

1

351814R2

RUBBER, battery hold down

2шт.

2

51714D

RUBBER, battery hold down, short (Used only w/four retainer type cover)

2шт.

3

350637R92

COVER ASSY

COVER, battery box, w/two retainers

1шт.

4

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

SCREW, battery box cover hold-down

2шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

Q391

WASHER

plain, 9/32" I.D. x 5/8" O.D. x no. 18 GA.

2шт.

5

350634R91

BOX, battery, w/two screws, 50939DA (Order 358544R91) (S/N, Serial Range: 100001-176522)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 GA.

4шт.

6

350638R1

SUPPORT, battery box hold-down (S/N, Serial Range: 100001-176522)

4шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

358540R11

SIDE ASSY.

SIDE, battery box, L.H., w/clip (S/N 176523 up)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

8

358542R11

SUPPORT

COVER, battery box front cover (For tractors without touch control) (S/N 176523 up)

1шт.

9

358541R11

SIDE ASSY.

SIDE, battery box, R.H., w/clip (S/N 176523 up)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

95-11041

WASHER,3/8"

(9/32" ID x 5/8" OD x no. 18 ga) 3/8"

2шт.

358544R91

BOX

PACKAGE, battery box (Will work for 350634R91), (S/N 100001 to 176522), Composed of

1шт.

358542R11

SUPPORT

COVER

1шт.

358540R11

SIDE ASSY.

SIDE

1шт.

358541R11

SIDE ASSY.

SIDE

1шт.

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

SCREW

2шт.
