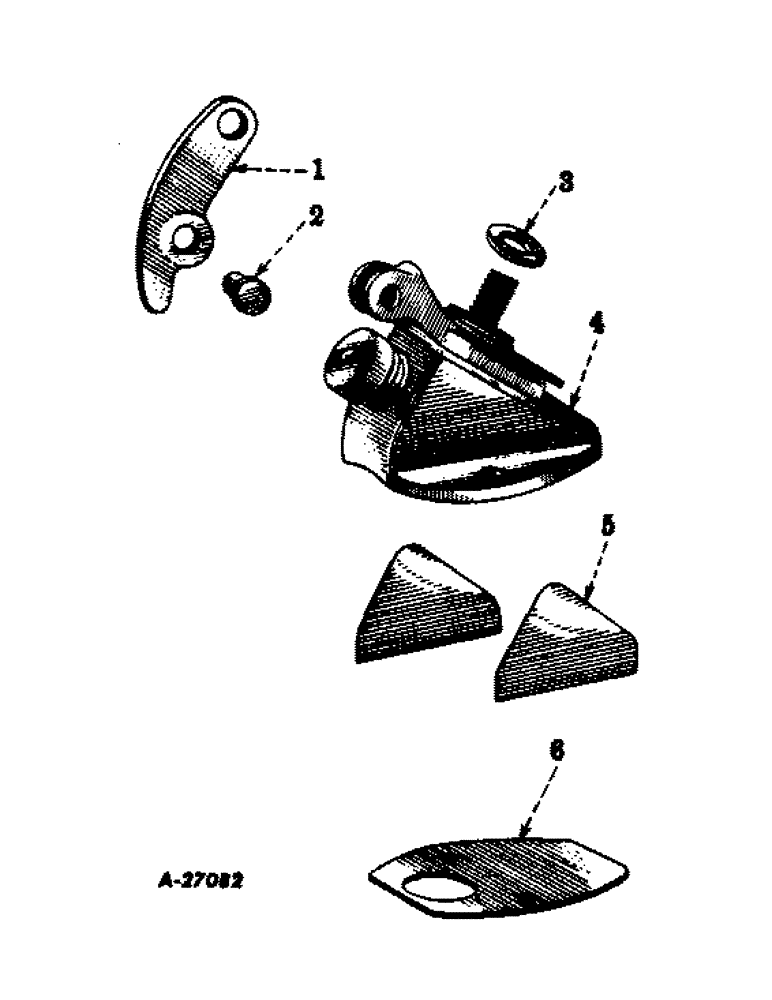

Запчасти Case IH SUPER C (057) - ELECTRICAL SYSTEM, STARTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

SWITCH, starting, assembly (Less reference no. 6) (Mfr.no. 1918405)

1шт.

NUT, hex., cd-pltd., 3/8-16NC (See note) (Mfr.no. 134566)

1шт.

SCREW, slotted-rh-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr.no. 132892)

2шт.

WASHER, lock, no. 10 (Mfr.no. 106497)

2шт.

WASHER, lock, light, 3/8" (See note) (Mfr.no. 110730)

1шт.

1

LEVER, starting switch (Mfr.no. 1918322)

1шт.

2

PIN, switch lever (Mfr.no. 1880254)

1шт.

PIN, cotter, 1/16 x 7/16" (Mfr.no. 137130)

1шт.

142186H

WASHER

(Mfr.no. 812622)

1шт.

4

SWITCH (Order 1918405)

1шт.

5

INSULATION, side starting switch (Mfr.no. 816911)

2шт.

6

GASKET, starting switch (See note) (Mfr.no. 1912376)

1шт.
