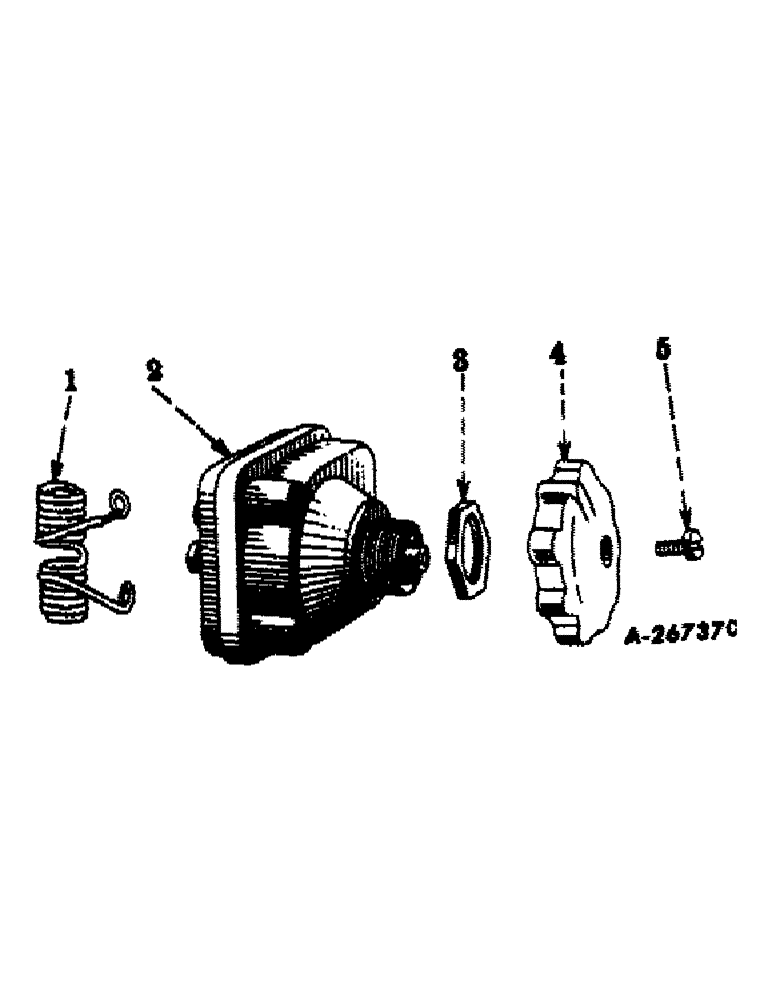

Запчасти Case IH SUPER C (056) - ELECTRICAL SYSTEM, LIGHTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

363130R91

SWITCH

lighting, assembly (6 volt) (Composed of parts listed on this page except as noted) (Will work for 362111R91)

1шт.

1

814545

COIL, resistance, lighting switch dimmer (6 volt)

1шт.

1882994

SCREW, dimmer coil attaching

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

2

SWITCH, lighting (Not serviced separately order switch assembly)

1шт.

1882994

SCREW, terminal

4шт.

1873844

WASHER, lock, terminal screw

4шт.

141706

WASHER

lock, internal-tooth, 11/16"

1шт.

3

1882012

NUT, mounting, lighting switch

1шт.

4

1882013

KNOB, lighting switch (Not part of lighting switch assembly)

1шт.

4

NLS

NO LONGER SERVICED

lighting switch (Not illustrated) (This part is included in lighting switch assembly that is also used on other tractors)

1шт.

5

1864099

SCREW

mounting, lighting switch knob

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.
