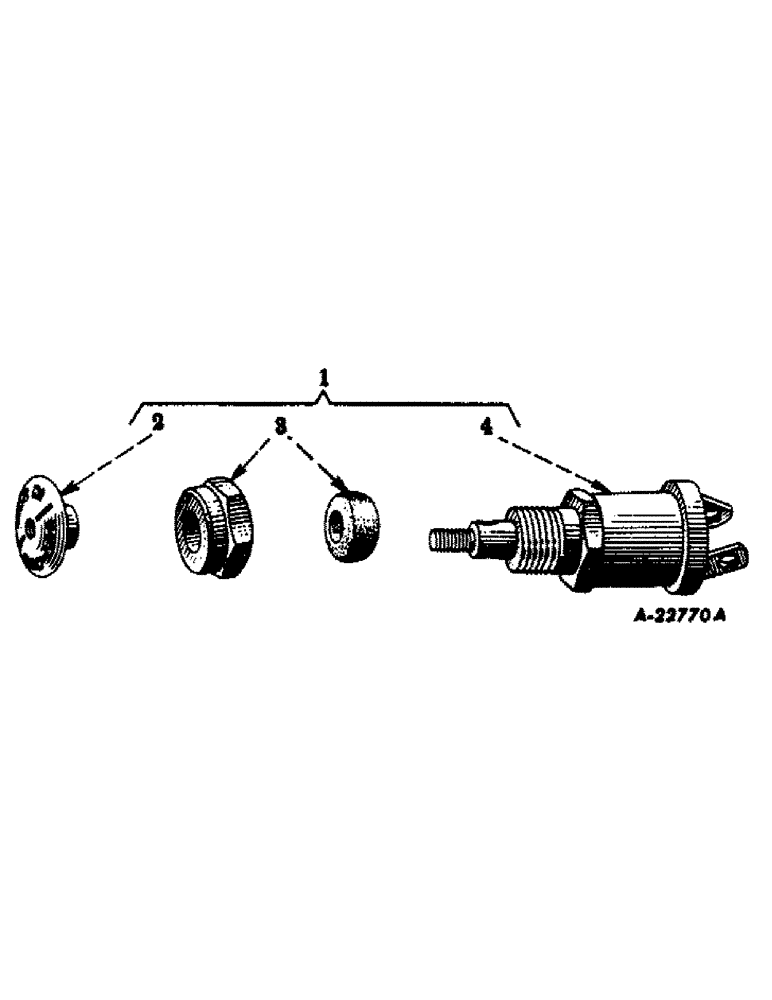

Запчасти Case IH SUPER C (054) - ELECTRICAL SYSTEM, BATTERY IGNITION SWITCH (06) - ELECTRICAL SYSTEMS

1

62801DC

SWITCH

battery ignition, assembly

1шт.

64022H

SCREW, slotted special-hd., cd-pltd., no. 8-32NC x 5/16"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

2

8732D

KNOB, switch

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

56517DX

NUT, mounting, switch, w/seal

1шт.

138553

WASHER

lock, internal-tooth, cd-pltd., 9/16"

1шт.

4

SWITCH, battery ignition (Order 62801DC)

1шт.

59109D

SPACER, battery ignition switch

1шт.
