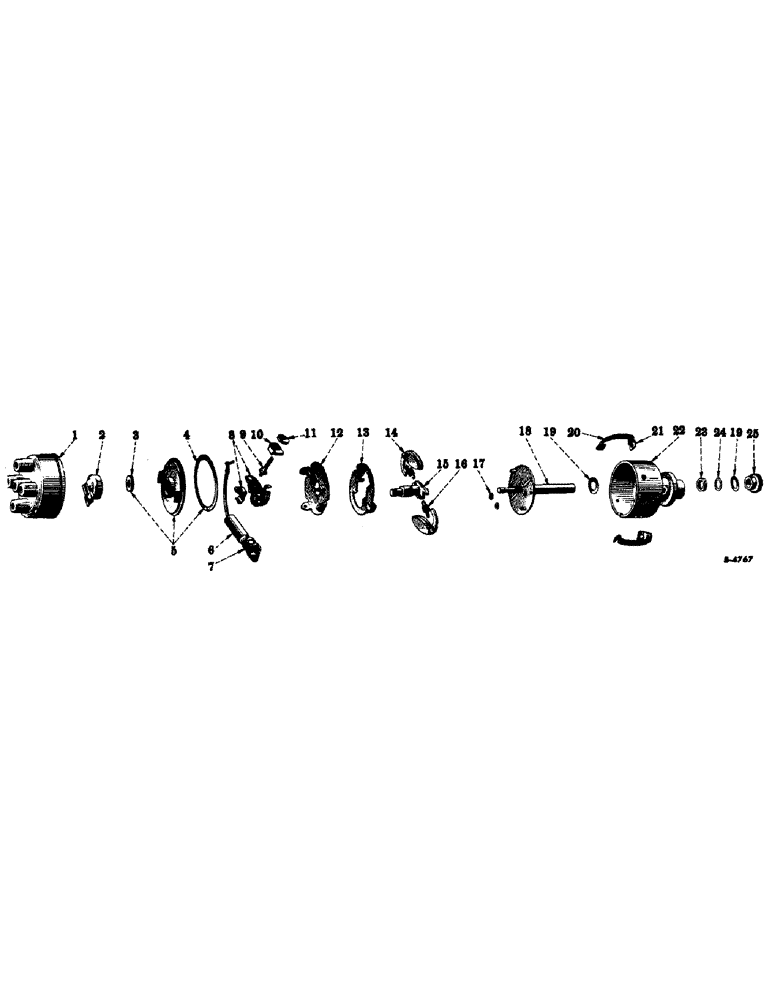

Запчасти Case IH SUPER C (052) - ELECTRICAL SYSTEM, BATTERY IGNITION DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (Will work for 354900R91)

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

felt, breaker cover

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

353900R11

COVER

breaker, w/seal, 353901R2 and gasket, 352284R2

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

condenser

1шт.

131949

DECAL KIT

slotted-fil-hd., cd-pltd., no. 8-32NC x 3/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

353172R91

BREAKER

POINT SET, distributor

1шт.

120622

NUT,#8-32

Breaker and spring #8-32

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

slotted-pan-hd., cd-pltd., no. 8-32NC x 3/16" (Stationary point)

1шт.

21394D

WASHER

stationary point or breaker arm spring

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker arm spring #8

1шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

terminal

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor, terminal

1шт.

11

251538R1

WASHER

insulating, terminal

1шт.

12

352277R11

PLATE

breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

352301R1

GUARD

governor weight

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

slotted-fil-hd., cd-pltd., no. 8-32NC x 3/16"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353915R91

ARM

w/weight

2шт.

15

35724R91

CAM, w/felt, 355460R1

1шт.

16

358108R91

SPRING

SET, governor spring (Consists of two springs) (Will work for 353918R1 and 354903R1)

1шт.

17

352293R1

SHIM

SPACER, weight arm

1шт.

18

354901R1

SHAFT, distributor

1шт.

19

352298R1

THRUST WASHER

thrust, distributor

1шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

1шт.

21

353895R1

SUPPORT

distributor cap spring

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rh-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

22

353898R11

HOUSING

distributor, w/oil seal, 252739R1, retainer, 353899R1 and plug, 125947

1шт.

125947

STUD

pipe, slotted, cd-pltd., 1/8"

1шт.

23

353899R1

STOP

RETAINER, oil seal, distributor shaft

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL, distributor shaft

1шт.

25

353902R1

GEAR

distributor (32 teeth)

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

21372D

GREASE, distributor or magneto (1 oz. tube) (Not included in distributor assembly)

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.
