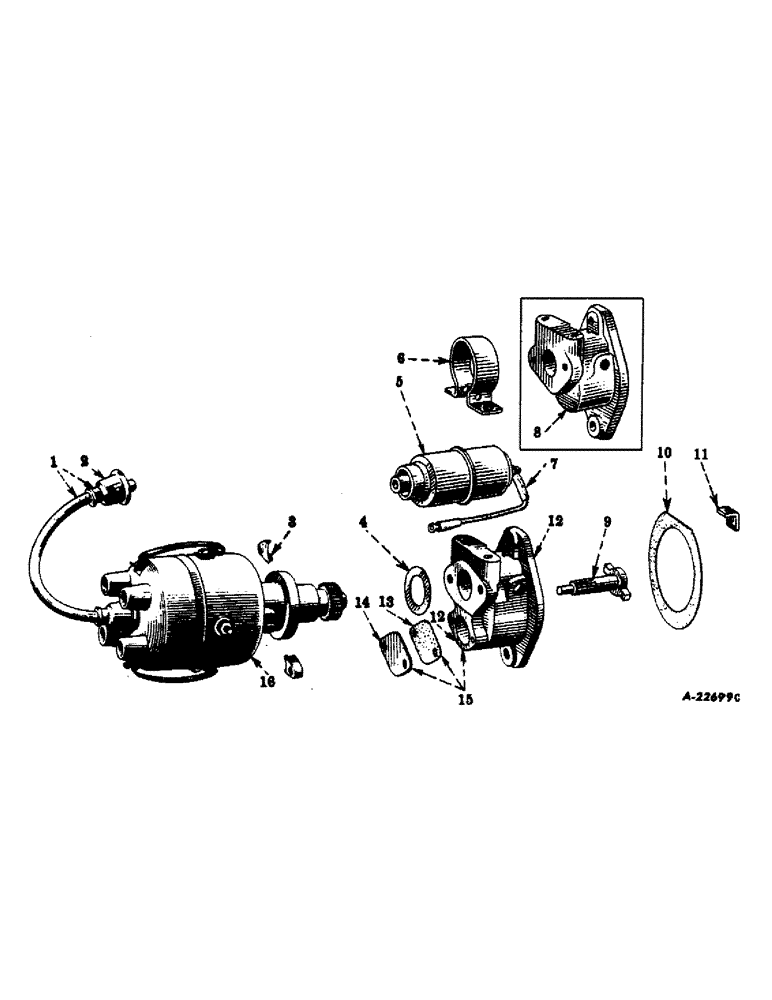

Запчасти Case IH SUPER C (050) - ELECTRICAL SYSTEM, BATTERY IGNITION UNIT, FOR TRACTORS EQUIPPED W/BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

357934R92

UNIT, battery ignition, assembly (6 volt) (Composed of parts listed in this unit except as noted.)

1шт.

1

356686R92

CABLE

secondary, coil to distributor, w/two nipples, 251553R1

1шт.

2

251553R1

BOOT

NIPPLE

2шт.

3

353937R1

CLIP

CLAM, distributor

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 5/16-18NC x 7/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

353874R91

COIL

ignition (6 volt)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

353889R1

CLAMP

coil

1шт.

120611

NUT,#10 - 32

square, cd-pltd., no. 10-32NF

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rh-hd., cd-pltd., no. 10-32NF x 1-1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, plain, cd-pltd., 11/32" I.D. x 11/16" O.D. x no. 16 GA.

2шт.

7

357929R92

ELECTRIC CABLE

CABLE, primary, coil to distributor w/two terminals

1шт.

8

353933R11

HOUSING, distributor drive w/bushing (Less hole for tachometer drive) (Order 363749R91)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (Lower)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16NC x 1-7/8" (Upper)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

9

353934R11

SHAFT

distributor drive w/integral gear (16 T.)

1шт.

10

46168DB

GASKET

distributor drive housing

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

11

46868D

CLIP

mounting, distributor

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

12

363763R11

HOUSING, distributor drive, w/bushing (w/hole for tachometer drive)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (Lower)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (Upper)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

13

363765R1

GASKET

distributor drive housing hole cover (Used with 363763R11)

1шт.

14

363764R1

COVER

distributor drive housing hole (Used with 363711R11 ref. 12)

1шт.

435429

SCREW, mach., slotted-rh-hd., cd-pltd., no. 10-32NF x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

363749R91

HOUSING

distributor drive, assembly (Will work for 353933R11), Composed of

1шт.

363764R1

COVER

1шт.

363765R1

GASKET

1шт.

363763R11

HOUSING

1шт.

435429

SCREW Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (Lower)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16NC x 1-7/8" (Upper)

1шт.

These parts are not included in battery ignition unit assembly.

1шт.

16

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (For components see list of parts under details of "battery ignition distributor")

1шт.
