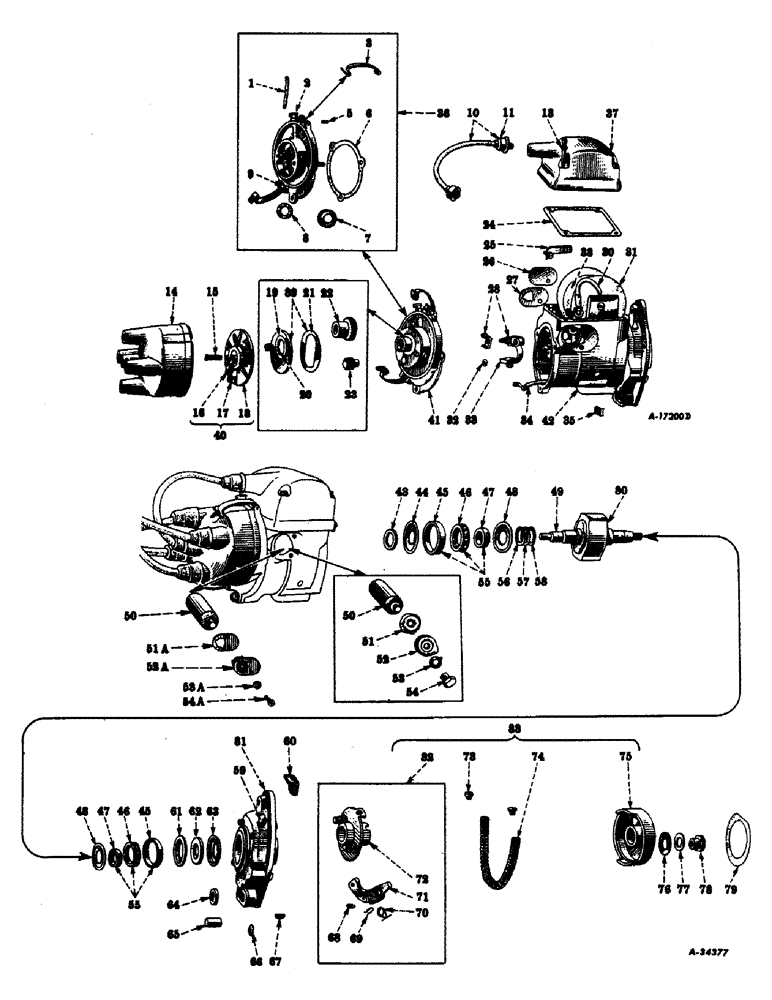

Запчасти Case IH SUPER C (044) - ELECTRICAL SYSTEM, MAGNETO, INTERNATIONAL TYPE H-4, SPECIAL (06) - ELECTRICAL SYSTEMS

351218R92

MAGNETO

assembly

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

Not part of magneto assembly.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of magneto assembly.

1шт.

1

E4216

FELT, oil well

1шт.

2

E4295

OILER

1шт.

3

51666D

SPRING, distributor cap

2шт.

5

47424D

PIN, locating, distributor cap

1шт.

6

47408D

GASKET

distributor body

1шт.

7

49424D

RETAINER, distributor body felt seal

1шт.

8

46423D

SEAL, felt, distributor body

1шт.

9

51667D

PIN, distributor cap spring

2шт.

10

356686R92

CABLE

coil to distributor, w/two nipples, 251533R1

1шт.

11

251553R1

BOOT

NIPPLE, coil to distributor cable

2шт.

13

38609DA

WASHER, mounting, coil cover

4шт.

14

47413DXC

CAP

distributor

1шт.

14

47413DYC

CAP

distributor, 47413DXC, w/brush, 21350DXA

1шт.

15

21350DXA

BRUSH, distributor, w/spring (Optional with 32032DXA or 356622R11)

1шт.

15

32032DXA

BRUSH

distributor, w/spring (Optional with 21350DXA or 356622R11)

1шт.

15

356622R11

BRUSH, distributor, w/spring (Optional with 21350DXA or 32032DXA)

1шт.

16

47427D

NUT

distributor rotor

1шт.

131181

WASHER, lock, cd-pltd., no. 6

1шт.

17

47428DA

ARM

distributor

1шт.

18

47425DX

ROTOR, distributor

1шт.

19

49417D

RETAINER, distributor gear cover felt seal

1шт.

20

49418D

SEAL, felt, distributor gear cover

1шт.

21

49419D

GASKET

distributor gear cover

1шт.

22

49420DX

PINION

GEAR, distributor (24 teeth)

1шт.

23

47417DX

PINION

rotor

1шт.

24

47453D

GASKET

coil cover

1шт.

25

47452D

STRAP, secondary leadout

1шт.

436652

SCREW, slotted-pan-hd., no. 4-48NF x 5/16"

1шт.

131093

WASHER, lock, cd-pltd., no. 4

1шт.

26

55015D

COVER, condenser hole

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

27

359966R1

GASKET

condenser hole cover (Will work for 48472DA)

1шт.

28

353171R91

CONTACT

POINT SET, magneto

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

slotted-pan-hd., cd-pltd., no. 8-32NC x 5/16"

1шт.

30

47442D

TUBE, primary to condenser leadout

1шт.

31

49593D

INSULATOR, coil end

2шт.

32

21394D

WASHER

stationary point support

1шт.

33

47432D

ANCHOR

spring

1шт.

120622

NUT,#8-32

1шт.

133482

SCREW, slotted-fl-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

34

47433DX

CABLE

primary leadout

1шт.

35

48339D

CLIP, condenser

1шт.

NLS

NO LONGER SERVICED

slotted-fil-hd., cd-pltd., no. 8-32NC x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

36

6483DAY

BODY, distributor, assembly, Composed of

1шт.

6483DA

BODY (NSS)

1шт.

E4216

FELT

1шт.

47408D

GASKET

1шт.

E4295

OILER

1шт.

47424D

PIN

1шт.

51667D

PIN

2шт.

49424D

RETAINER

1шт.

49423D

SEAL

1шт.

47486D

SHAFT (NSS)

1шт.

51666D

SPRING

2шт.

37

47449DAY

COVER ASSY

COVER, coil, w/strap, assembly, Composed of

1шт.

47449DA

COVER (NSS)

1шт.

47451D

INSERT (NSS)

1шт.

436652

SCREW

1шт.

47452D

STRAP

1шт.

131093

WASHER

1шт.

131997

SCREW, slotted-fil-hd., cd-pltd., no. 8-32NC x 1-1/2"

4шт.

38

21314DX

CORE

coil, w/two screws, 133495

1шт.

38

47439DAX

COIL ASSY.

COIL AND CORE, assembly, Composed of

1шт.

57926DX

COIL

1шт.

21314D

CORE

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

2шт.

38

57926DX

COIL

w/insulators, assembly, Composed of

1шт.

57926D

COIL (NSS)

1шт.

47446D

INSULATORS (NSS)

2шт.

49593D

INSULATORS

2шт.

47447D

PATCH (NSS)

1шт.

51465D

PATCH (NSS)

2шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

2шт.

27534D

STICKER (NSS)

1шт.

47448D

STRIP (NSS)

1шт.

51466D

TAPE (NSS)

1шт.

47445D

TERMINAL (NSS)

1шт.

49448D

TERMINAL (NSS)

1шт.

25977D

TUBE (NSS)

1шт.

47442D

TUBE

1шт.

47440DA

WINDING (NSS)

1шт.

39

49416DX

COVER, distributor gear, assembly, Composed of

1шт.

49416D

COVER (NSS)

1шт.

49419D

GASKET

1шт.

49417D

RETAINER

1шт.

49418D

SEAL

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

slotted-rd-hd., cd-pltd., no. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

40

47425DY

CAP

ROTOR, distributor, assembly, Composed of

1шт.

47428DA

ARM

1шт.

47427D

NUT

1шт.

47425DX

ROTOR

1шт.

131181

WASHER

1шт.

41

56066DA

DISTRIBUTOR, assembly, Composed of

1шт.

6483DAY

BODY

1шт.

49416DX

COVER

1шт.

49420DX

PINION

GEAR

1шт.

47417DX

PINION

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

slotted-fil-hd., cd-pltd., no. 10-32NF x 3/4"

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

42

6482DAY

FRAME, assembly, Composed of

1шт.

55015D

COVER

1шт.

E4226

FELT

1шт.

6482DAX

FRAME (NSS)

1шт.

359966R1

GASKET

2шт.

47485D

POST (NSS)

1шт.

ST601

RACE

1шт.

47454D

RETAINER

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

43

E4226

FELT, bearing

1шт.

44

47454D

RETAINER, bearing felt, inner

1шт.

45

ST601

RACE

outer (Rotor shaft ball bearing)

2шт.

46

ST602

BEARING

RETAINER, w/balls (Rotor shaft ball bearing)

2шт.

47

ST600

BEARING

RACE, inner (Rotor shaft ball bearing)

2шт.

48

E4A324

FLINGER, oil

2шт.

49

60094D

CAM, breaker

1шт.

50

21409DB

CONDENSER

1шт.

51

47438DA

WASHER, short circuiting terminal, inner (S/N magneto, Serial Range: 501-1464978)

1шт.

51a

359966R1

GASKET

short circuiting terminal insulator (S/N magneto 1464979 up)

1шт.

52

48341D

WASHER, short circuiting terminal, outer (S/N magneto 501 to (S/N magneto, Serial Range: 501-1464978)

1шт.

52a

359704R1

INSULATOR, short circuiting terminal (S/N magneto 1464979 up)

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

machine, slotted-rh-hd., cd-pltd., no. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

38609DA

WASHER, terminal insulator screw

2шт.

53

48342DA

WASHER, lock, short circuiting terminal (S/N magneto, Serial Range: 501-1464978)

1шт.

53a

359965R1

WASHER, terminal (S/N magneto 1464979 up)

1шт.

54

48340DA

TERMINAL, short circuiting (S/N magneto, Serial Range: 501-1464978)

1шт.

54a

359967R1

TERMINAL, short circuiting (S/N magneto 1464979 up)

1шт.

121637

LOCK WASHER

WASHER, lock, light, 1/4"

1шт.

55

ST307

BALL BEARING,0.5906" ID x 1.378" OD x 0.315"

BEARING, ball (Rotor shaft)

2шт.

56

E4A305

SHIM, rotor, light (.002")

1шт.

57

E4212

SHIM, rotor, medium (.004")

1шт.

58

E4A372

SHIM, rotor, heavy (.010")

1шт.

59

27311D

OILER, impulse coupling

1шт.

60

46868D

CLIP

mounting

1шт.

61

47474D

WASHER, oil retainer, inner (Order 353051R91)

1шт.

62

47475DA

OIL SEAL (Order 353051R91)

1шт.

63

47473D

WASHER, oil retainer, outer (Order 353051R91)

1шт.

64

24523D

WASHER

magneto bolt

1шт.

Not part of magneto assembly.

1шт.

65

47468DA

PIN, stop, impulse coupling

1шт.

66

114616

WASHER

lock, external-tooth-csk., 1/4"

4шт.

67

106749

KEY

Woodruff, no. 3, 1/8 x 1/2"

1шт.

68

47461D

WASHER, pawl pin (S/N FCM, Serial Range: 501-183302)

2шт.

68

24610D

WASHER, pawl pin (S/N FCM 183303 up)

2шт.

69

47462D

RING, snap, pawl pin (S/N FCM, Serial Range: 501-183302)

2шт.

69

30114D

RING, snap, pawl pin (S/N FCM 183303 up)

2шт.

70

51303D

VALVE SPRING

SPRING, pawl

2шт.

71

51304D

PAWL

(S/N FCM, Serial Range: 501-183302)

2шт.

71

351367R91

PAWL, w/weight (S/N FCM 183303 up)

2шт.

72

47293DX

MEMBER, magneto (S/N FCM, Serial Range: 501-183302)

1шт.

72

351366R91

MEMBER, magneto (S/N FCM 183303 up)

1шт.

73

251555R1

BUTTON

spring end

2шт.

74

47822D

SPRING

coupling, magneto

1шт.

75

47292DX

MEMBER, drive (S/N FCM, Serial Range: 501-183302)

1шт.

75

251558R11

MEMBER, drive (S/N FCM 183303 up)

1шт.

76

24603D

WASHER, lock, magneto drive member

1шт.

77

251591R1

WASHER, lock, impulse coupling

1шт.

78

47470D

NUT, coupling, impulse

1шт.

79

46168DB

GASKET

magneto flange

1шт.

Not part of magneto assembly.

1шт.

80

47455DAR

ROTOR, assembly, Composed of

1шт.

60094D

CAM

1шт.

E4A324

FLINGER

2шт.

57314D

KEEPER

1шт.

106749

KEY

1шт.

ST600

BEARING

RACE

2шт.

ST602

BEARING

RETAINER

2шт.

47457DAX

ROTOR (NSS)

1шт.

E4212

SHIM

1шт.

E4A305

SHIM

1шт.

E4A372

SHIM

1шт.

81

6515DAX

FLANGE, mounting, assembly, Composed of

1шт.

6515DA

FLANGE (NSS)

1шт.

27311D

OILER

1шт.

353050R1

OIL SEAL (NSS)

1шт.

47468DA

PIN

1шт.

ST601

RACE

1шт.

353052R1

WASHER (NSS)

1шт.

353053R1

WASHER (NSS)

1шт.

173464

SCREW, slotted-fl-hd., 1/4-20NC x 9/16"

4шт.

82

47293DY

MEMBER

magneto, w/pawls, assembly (S/N FCM, Serial Range: 501-183302)

1шт.

47293DX

MEMBER

1шт.

51304D

PAWL

2шт.

47462D

RING

2шт.

51303D

VALVE SPRING

SPRING

2шт.

47461D

WASHER

2шт.

82

351434R91

MEMBER, magneto, w/pawls, assembly (S/N FCM 183303 up), Composed of

1шт.

351366R91

MEMBER

1шт.

351367R91

PAWL

2шт.

30114D

RING

2шт.

51303D

VALVE SPRING

SPRING

2шт.

24610D

WASHER

2шт.

83

351365R91

ROTOR

UNIT, rotating, assembly (Will work for 47293DZ), Composed of

1шт.

251555R1

BUTTON

2шт.

251558R11

MEMBER

1шт.

351434R91

MEMBER

1шт.

47822D

SPRING

1шт.

21372D

GREASE, magneto (1 oz. tube)

1шт.

Not part of magneto assembly.

1шт.

359766R91

GREASE, magneto ball bearing (1 oz. tube)

1шт.

Not part of magneto assembly.

1шт.

57314D

KEEPER, magneto

1шт.

353051R91

HOLDER

PACKAGE, service, oil seal, Consists of

1шт.

353050R1

SEAL (NSS)

1шт.

353054R1

SHIM (NSS)

1шт.

E4212

SHIM

2шт.

E4A305

SHIM

2шт.

E4A372

SHIM

2шт.

353052R1

WASHER (NSS)

1шт.

353053R1

WASHER (NSS)

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

slotted, fl-hd., cd-pltd., no. 8-32NC x 5/8" (In coil and core assembly)

2шт.

69398D

VARNISH, insulating, electrical (1 pint) (Special)

1шт.

Not part of magneto assembly.

1шт.
