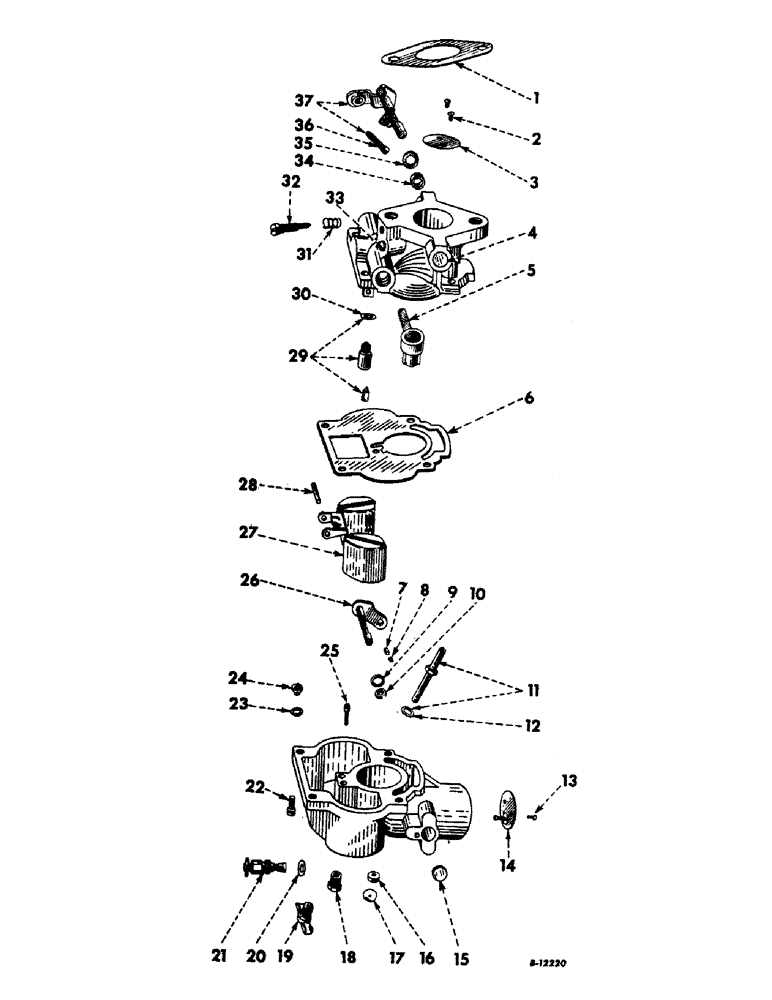

Запчасти Case IH SUPER C (031) - ENGINE, CARBURETOR, CARTER (01) - ENGINE

373958R91

CARBURETOR

assembly (Gasoline) (Optional with Zenith carburetor, 355485R91)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

373961R91

CARBURETOR

assembly (Distillate or kerosene) (Optional with Zenith carburetor, 356901R91)

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

24520D

GASKET

carburetor

1шт.

2

88962R1

SCREW

throttle valve plate

1шт.

3

354804R1

PLATE, throttle valve

2шт.

4

354817R1

PLUG, expansion

1шт.

5

354827R91

ELBOW

w/strainer

1шт.

6

373979R1

GASKET

body

1шт.

7

354826R1

PIN, choke lever lock

1шт.

8

354821R1

SPRING

choke lever lock pin

1шт.

9

354825R1

WASHER

choke lever shaft dust seal retainer

1шт.

10

354829R1

SEAL

dust, choke lever shaft

1шт.

11

356701R91

NOZZLE INJECTION

NOZZLE, w/gasket, 88976R1

1шт.

12

88976R1

GASKET

nozzle

1шт.

13

88962R1

SCREW

choke valve plate

2шт.

14

373974R91

VALVE

PLATE, choke valve

1шт.

15

354817R1

PLUG, expansion (Aluminum)

1шт.

16

354830R1

PLUG

SEAL, felt, air horn

1шт.

17

354824R1

WASHER, retainer air horn dust seal

1шт.

18

354808R1

PLUG

drain (Gasoline)

1шт.

19

354818R91

COCK, drain (Distillate or kerosene)

1шт.

20

354815R1

GASKET

main jet adjusting needle valve (Distillate or kerosene)

1шт.

21

357125R91

VALVE, needle, main jet adjustment, w/seal, 354831R1 (Distillate or kerosene)

1шт.

22

88963R91

SCREW, attaching, w/washer

4шт.

23

68462R1

GASKET

main metering jet (Gasoline)

1шт.

24

356699R91

JET, main metering, w/gasket, 68462R1 (Gasoline)

1шт.

25

355719R91

JET, low speed

1шт.

26

373976R91

LEVER

SHAFT, choke, w/lever

1шт.

27

373977R91

FLOAT

1шт.

28

354814R1

PIN

float lever

1шт.

29

373978R91

VALVE

needle, w/seat and gasket, 373980R1

1шт.

30

373980R1

GASKET, needle valve seat

1шт.

31

68472R1

SPRING, idle adjusting needle valve

1шт.

32

68469R1

ADJUSTMENT SCREW

VALVE, needle, idle adjusting

1шт.

33

373975R1

RIVET, idle passage plug

1шт.

34

354829R1

SEAL

dust, throttle shaft

1шт.

35

354825R1

WASHER

throttle shaft dust seal retainer

1шт.

36

354822R1

SCREW, throttle adjusting

1шт.

37

373982R91

SHAFT, throttle, w/lever and screw, 354822R1

1шт.

68457R1

RIVET, idle gas passage plug

1шт.
