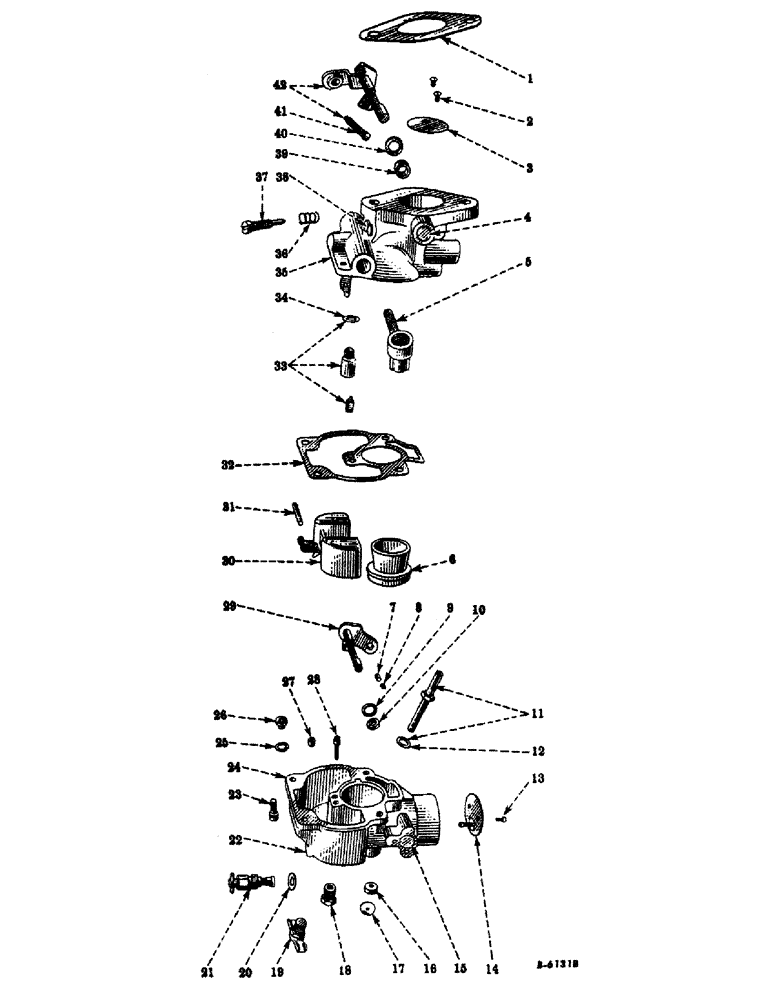

Запчасти Case IH SUPER C (028) - ENGINE, CARBURETOR, CARTER (01) - ENGINE

354892R93

CARBURETOR

assembly (Gasoline) (Order 373958R91)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

356902R92

CARBURETOR

assembly (Distillate or kerosene) (Order 373961R91)

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

24520D

GASKET

carburetor

1шт.

2

88962R1

SCREW

throttle valve plate

2шт.

3

354804R1

PLATE, throttle valve

1шт.

4

354817R1

PLUG, expansion

1шт.

5

354827R91

ELBOW

w/strainer

1шт.

6

354819R1

VENTURI (No. 23) (Gasoline)

1шт.

6

354820R1

VENTURI (No. 21) (Distillate or kerosene)

1шт.

7

354826R1

PIN, choke lever lock

1шт.

8

354821R1

SPRING

choke lever lock pin

1шт.

9

354825R1

WASHER

choke lever shaft dust seal retainer

1шт.

10

354829R1

SEAL

dust, choke lever shaft

1шт.

11

356701R91

NOZZLE INJECTION

NOZZLE, w/gasket, 88976R1

1шт.

12

88976R1

GASKET

nozzle

1шт.

13

88962R1

SCREW

choke valve plate

2шт.

14

354806R91

PLATE, choke valve

1шт.

15

354817R1

PLUG, expansion (Aluminum)

1шт.

16

354830R1

PLUG

SEAL, felt, air horn

1шт.

17

354824R1

WASHER, retainer air horn dust seal

1шт.

18

354808R1

PLUG

drain (Gasoline)

1шт.

19

354818R91

COCK, drain (Distillate or kerosene)

1шт.

20

354815R1

GASKET

main jet adjusting needle valve (Distillate or kerosene)

1шт.

21

357125R91

VALVE, needle, main jet adjustment, w/seal, 354831R1 (Distillate or kerosene)

1шт.

22

68456R1

RIVET, main gas passage plug (Gasoline)

1шт.

23

88963R91

SCREW, attaching, w/washer

4шт.

24

BOWL, fuel (Not serviced separately) (Order carburetor, assembly)

1шт.

25

68462R1

GASKET

main metering jet (Gasoline)

1шт.

26

356699R91

JET, main metering, w/gasket, 68462R1 (Gasoline)

1шт.

27

356700R1

PLUG, screw (Nozzle bleed) (Gasoline)

1шт.

27

354809R1

PLUG, screw (Nozzle bleed) (Distillate or kerosine)

1шт.

28

355719R91

JET, low speed

1шт.

29

354812R91

LEVER

SHAFT, choke, w/lever

1шт.

30

354813R91

FLOAT

1шт.

31

354814R1

PIN

float lever

1шт.

32

354823R1

GASKET

body

1шт.

33

88977R91

VALVE

needle, w/seat and gasket, 88976R1

1шт.

34

88976R1

GASKET

needle valve seat

1шт.

35

354833R91

BODY

throttle, assembly, Composed of

1шт.

BODY (Not serviced separately order 354833R91)

1шт.

354817R1

PLUG

1шт.

68459R1

RIVET

1шт.

354807R1

RIVET

2шт.

354829R1

SEAL

1шт.

88962R1

SCREW

2шт.

354805R91

SHAFT

1шт.

354804R1

VALVE

1шт.

354825R1

WASHER

1шт.

36

68472R1

SPRING, idle adjusting needle valve

1шт.

37

68469R1

ADJUSTMENT SCREW

VALVE, needle, idle adjusting

1шт.

38

68456R1

RIVET, idle passage plug

1шт.

39

354829R1

SEAL

dust, throttle shaft

1шт.

40

354825R1

WASHER

throttle shaft dust seal retainer

1шт.

41

354822R1

SCREW, throttle adjusting

1шт.

42

354805R92

SHAFT, throttle, w/lever and screw, 354822R1

1шт.

350633R3

CLIP

choke rod, front (Tractors equipped with touch-control)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

352147R1

CLIP, choke rod, front (Tractors not equipped with touch-control)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 5/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

354379R1

CLIP, choke rod, rear

2шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

354807R1

RIVET, balance passage plug

2шт.

68457R1

RIVET, idle gas passage plug

1шт.

351444R1

ROD, choke

1шт.

112526

PIN, cotter, 1/16 x 3/8"

1шт.

354831R1

SEAL, adjustment needle valve (Distillate or kerosene)

1шт.
