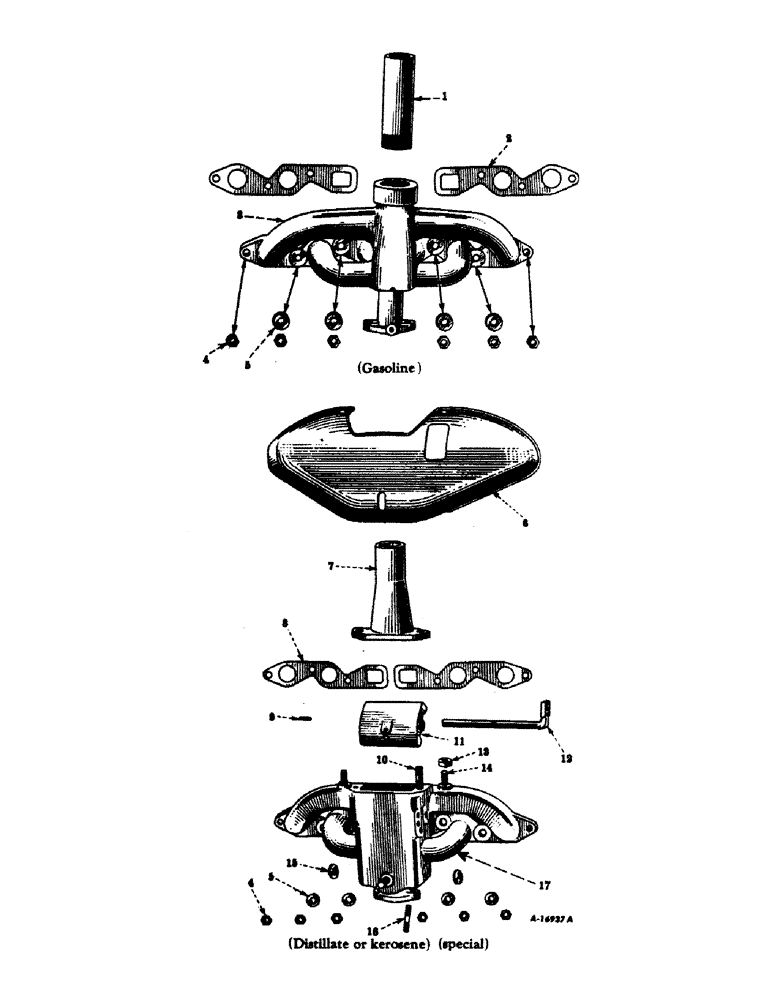

Запчасти Case IH SUPER C (026) - ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

356354R1

PIPE

exhaust (Gasoline)

1шт.

2

352014R2

GASKET

exhaust and intake manifold (Gasoline)

2шт.

3

251175R21

MANIFOLD

exhaust and intake, w/plug, 103865 (Gasoline)

1шт.

103865

PLUG, pipe, 1/8"

1шт.

4

251176R1

NUT

manifold to cylinder head stud

6шт.

5

24523D

WASHER

manifold to cylinder head stud nut

4шт.

6

48892DB

SHIELD, heat manifold (Distillate or kerosene)

1шт.

7

356369R1

PIPE

exhaust (Distillate or kerosene)

1шт.

8

352014R2

GASKET

exhaust and intake manifold (Distillate or kerosene)

2шт.

9

38-31014

PIN,5/32" x 7/8", Coiled

Pin, Grooved, 5/32" x 7/8", Type A (distillate or kerosene)

1шт.

10

46202D

STUD

exhaust pipe (Distillate or kerosene)

2шт.

220067

PIPE

NUT, hex., 7/16-14NC

2шт.

11

6866DA

VALVE, heat, manifold (Distillate or kerosene)

1шт.

12

52521DA

SHAFT, manifold heat valve (Distillate or kerosene)

1шт.

102953

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/2"

1шт.

218438

NUT, hex., jam, 3/8-16NC

1шт.

13

93082H

NUT

manifold heat shield stud (Distillate or kerosene)

3шт.

95-11041

WASHER,3/8"

3шт.

14

46102D

STUD, manifold heat shield (Distillate or kerosene)

3шт.

15

172540

PULLEY

expansion, 7/8" (Distillate or kerosene)

2шт.

16

G8603

STUD, carburetor (Distillate or kerosene)

2шт.

17

351655R21

MANIFOLD, exhaust and intake, assembly (Distillate or kerosene), Composed of

1шт.

351655R2

MANIFOLD (NSS)

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, , Used with muffler attach 3/16" x 1/2", Type A

2шт.

103865

PLUG

1шт.

41-3014

PLUG,Exp, 7/8"

2шт.

G8603

STUD

2шт.

46102D

STUD

3шт.

46202D

STUD

2шт.

17

354137R92

MANIFOLD, exhaust and intake, 351655R21, w/heat valve, assembly (Distillate or kerosene), Composed of

1шт.

351655R21

MANIFOLD

1шт.

218438

NUT

1шт.

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

102953

SCREW

1шт.

6866DA

VALVE

1шт.
