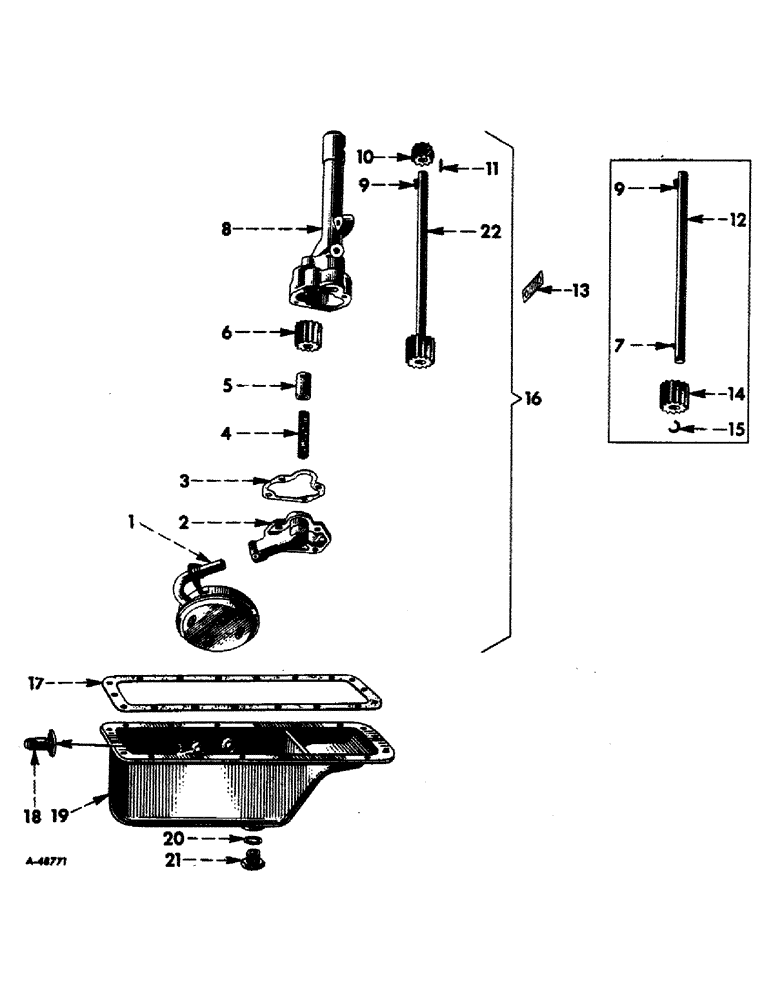

Запчасти Case IH SUPER C (024) - ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE

1

56108D

FILTER SCREEN

SCREEN, lubricating oil pump (Has short tube - used with pump, 352085R91 thru R93)

1шт.

1

368979R91

SCREEN

lubricating oil pump (Not illustrated) (Has long tube - used with pump, 352085R94)

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

6098DA

OIL RESERVOIR

COVER, lubricating oil pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

43415D

GASKET

lubricating oil pump body cover

1шт.

4

43414DA

VALVE SPRING

SPRING, pressure, lubricating oil pump

1шт.

5

357648R1

LOCK VALVE

VALVE, pressure, lubricating oil pump (Will work for 61261V)

1шт.

6

35631H

GEAR

idler, lubricating oil pump

1шт.

7

NLS

NO LONGER SERVICED

Woodruff no. 5 (Used with gear ref. 14)

1шт.

8

6096DX

BODY

lubricating oil pump w/idler shaft and plug, 103865

1шт.

103865

PLUG, pipe, sq-hd., CI, 1/8" (Optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (Optional with 103865)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

2шт.

8

352036R92

PUMP

BODY, lubricating oil pump, assembly, Composed of

1шт.

6096DX

BODY

1шт.

365377R91

SHAFT

GEAR AND SHAFT

1шт.

352057R1

GEAR

1шт.

103905

KEY

1шт.

112011

PIN,1/8" x 7/8"

1шт.

9

NLS

NO LONGER SERVICED

Woodruff, no. 5

1шт.

10

352057R1

GEAR

spiral, lubricating oil pump

1шт.

11

112011

PIN,1/8" x 7/8"

lubricating oil pump spiral gear (Will work for G1123)

1шт.

12

43412DR

SHAFT, lubricating oil pump drive (No longer serviced separately, order gear and shaft ref. 22)

1шт.

13

46629D

LOCK

lubricating oil pump screw

1шт.

14

358615R1

GEAR

lubricating oil pump body (No longer serviced separately, order gear and shaft ref. 22)

1шт.

15

27999H

RING

RETAINER, lubricating oil pump body gear

1шт.

16

352085R94

PUMP

lubricating oil, assembly, Composed of

1шт.

352036R92

PUMP

BODY

1шт.

6098DA

OIL RESERVOIR

COVER

1шт.

43415D

GASKET

1шт.

35631H

GEAR

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

368979R91

SCREEN

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

43414DA

VALVE SPRING

SPRING

1шт.

357648R1

LOCK VALVE

VALVE

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

43458DD

GASKET

oil pan

1шт.

18

1998TA

VALVE

oil indicator, w/handle and stem (Gasoline) (Not used on tractors equipped with oil level gage)

2шт.

(Distillate or kerosene) (One used on tractors equipped with oil level gage)

2шт.

19

355735R92

PAN, crankcase, oil, assembly (Will work for 43457DCX), Composed of

1шт.

3405H

GASKET

1шт.

43457DCX

PAN (NSS)

1шт.

359875R1

PLUG

1шт.

103867

PLUG

2шт.

103867

PLUG

pipe, sq-hd., CI, 3/8" (Gasoline) (Distillate or kerosene)

1шт.

Used to plug oil gauge valve hole on tractors equipped with oil level gauge.

1шт.

368486R91

SCREW,Hex, 5/16" - 18 x 3/4", W/ LW

machine, hex-hd., 5/16-18NC x 3/4" w/internal-tooth lockwasher

14шт.

368487R91

SCREW, machine, hex-hd., 5/16-18NC x 1-1/2" w/internal-tooth lockwasher

4шт.

20

3405H

GASKET

crankcase oil pan drain plug

1шт.

21

359875R1

PLUG

drain, crankcase oil pan (Will work for 41300HA)

1шт.

21

41300HA

PLUG

drain, crankcase oil pan (Optional with 359875R1)

1шт.

22

365377R91

SHAFT

GEAR AND SHAFT, oil pump body (Will work for gear, 358615R1 and shaft, 43412DR)

1шт.
